Use this workflow to install the ATIS integration cable (either the ACC-AG-BATIS-MER Meritor cable or the ACC-AG-BATIS-HEN Hendrickson cable) on a trailer equipped with an Asset Gateway (AG52 or AG53).
|
Quantity |
Item |
|---|---|
|
1 |
ATIS compatible cable |
|
1 |
Butt splice, 12-14 AWG |
|
1 |
Butt splice, 14-16 AWG |
|
2 |
Butt splice, 18-22 AWG |
|
1 |
Heat-shrink tubing, large |
|
1 |
Heat-shrink tubing, small |
|
1 |
Quick disconnect female terminal |
|
1 |
Terminal splitter |
|
8 |
Cable ties |
-
If you have not already done so, install your AG for ABS tracking using the CBL-AG-BPLC cable.
-

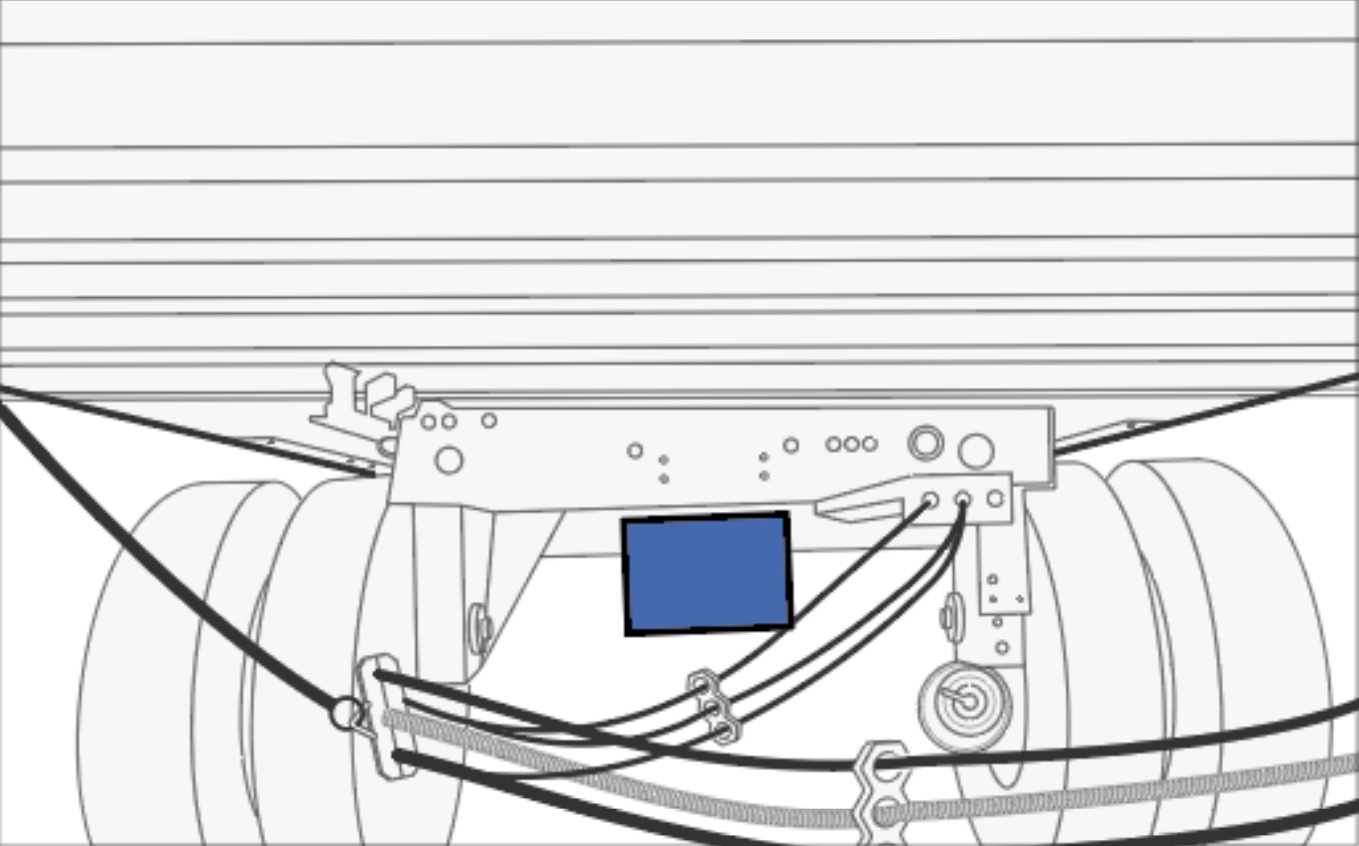

Locate the ATIS control unit on the trailer.
Typically the ATIS control unit is located on the bogie, either in front of or behind the axles.
-
Determine the type of installation by tracing the the wiring harness exiting the ATIS control unit:
-

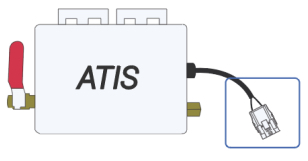

If there is a 3-pin Weather-Pack connector installed on the wiring harness, perform a 3-Pin Connector Installation.
-
If there is no connector and the ATIS is a Meritor or PSI system, open the ATIS unit. Perform the workflow for your configuration:
-
If there are quick disconnect terminals, perform a Direct Installation With Disconnect Terminals.
-
If there are no quick disconnect terminals, perform a Direct Installation Without Disconnect Terminals
-
-
-
Unplug the 3-pin connector. If needed, remove the Connector Position Assurance (CPA) lock or zip-tie to unplug the connector.
-

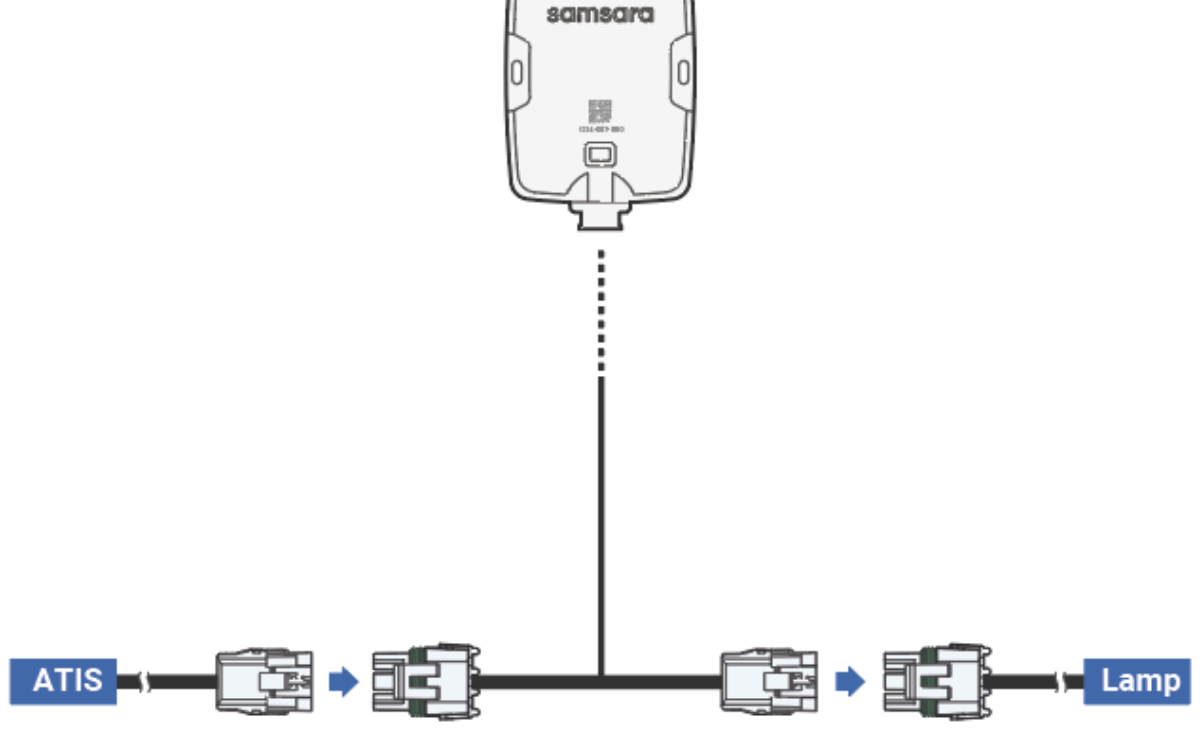

Connect the ACC-AG-BATIS-HEN cable: Plug the male end of the cable into the ATIS connector. Plug the female end of the ACC-AG-BATIS-HEN cable to the ATIS lamp connector.
-
Cut the end cap off of the input leg of the AG cable.
-
Route the remaining loose wire of the ACC-AG-BATIS-HEN cable towards the installed AG, avoiding sharp corners or moving parts that could damage the cable.
-
Carefully strip 1in (2.5 cm) of the AG cable jacket, taking care to avoid damaging the wires. Pull away and remove any protective material from the wires inside.
-
Strip back 5/16 in (8 mm) of the green/white wire and slide the small heat-shrink tube over the wire for later use.
-

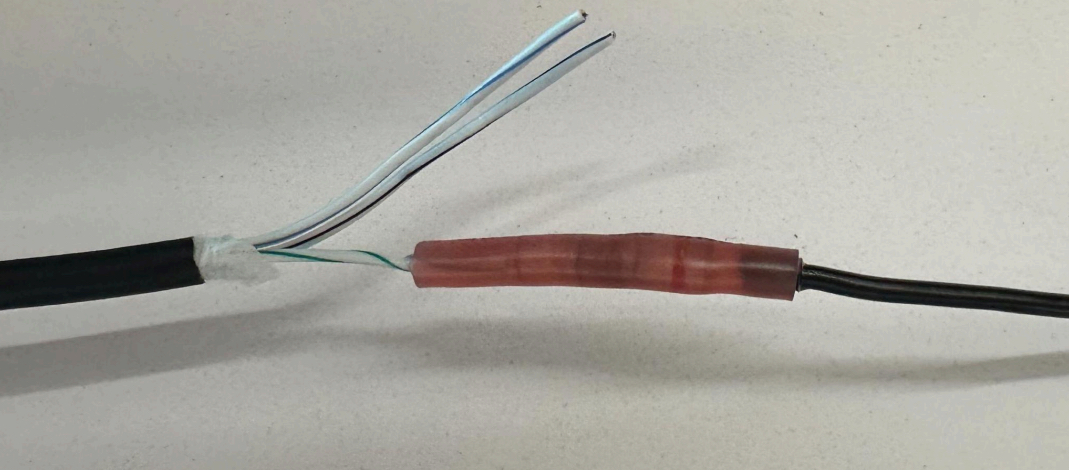

Using the butt splice, connect the black ATIS cable wire to the green/white AG cable input wire.
Some cable kits may have an asymmetrical splice with a thinner opening designed for the AG cable wire and the wider opening designed for the ATIS cable wire.
-
Position the heat-shrink tube over the connection and use a heat gun or torch to carefully shrink the heat-shrink tube until the adhesive starts to flow out of the shrink tube.
-
Carefully bundle any excess input wire using cable ties every 12-18 in (30-50 cm). If securing to air hoses or other sensitive components, take care not to over-tighten the cable ties.
-
Configure Auxiliary Input 1 on the AG for the ATIS Lamp.
-
Validate that the ATIS lamp functions properly, following the manufacturer's instructions to test the ATIS lamp.
-
To monitor ATIS lamp activations, see Trailer ATIS Visibility and Alerts.
-
On the ACC-AG-BATIS-MER, cut the single black input wire near the 3-pin connector and discard the 3-pin connector as it will not be needed for this installation type.
-

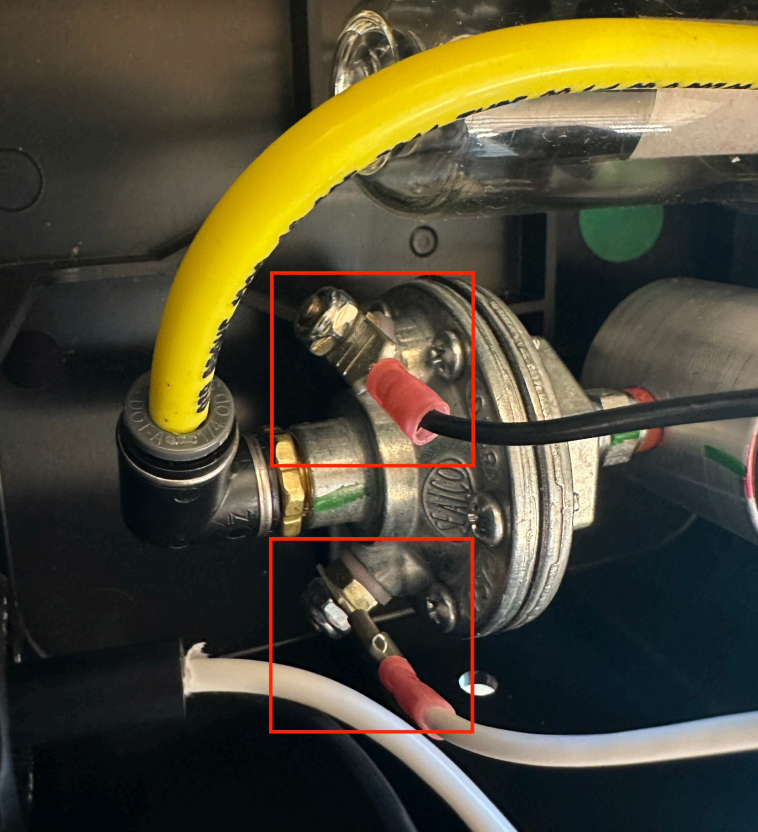

Disconnect both quick disconnect terminal wires from the ATIS flow sensing switch.
-
Route the black wire into the ATIS unit using one of the following methods:
-
Duckbill vent: Route the wire through the duckbill vent on the bottom of the ATIS box, squeezing the duckbill to pass the wire through.
-
Cable gland: If your kit came with a larger diameter cable gland or the existing cable gland on the ATIS box is large enough for an additional wire, route the wire through the cable gland.
-
New hole: Drill a new hole in the ATIS box and affix a grommet or cable gland in the hole (not included). Route the wire through the hole.
-
-

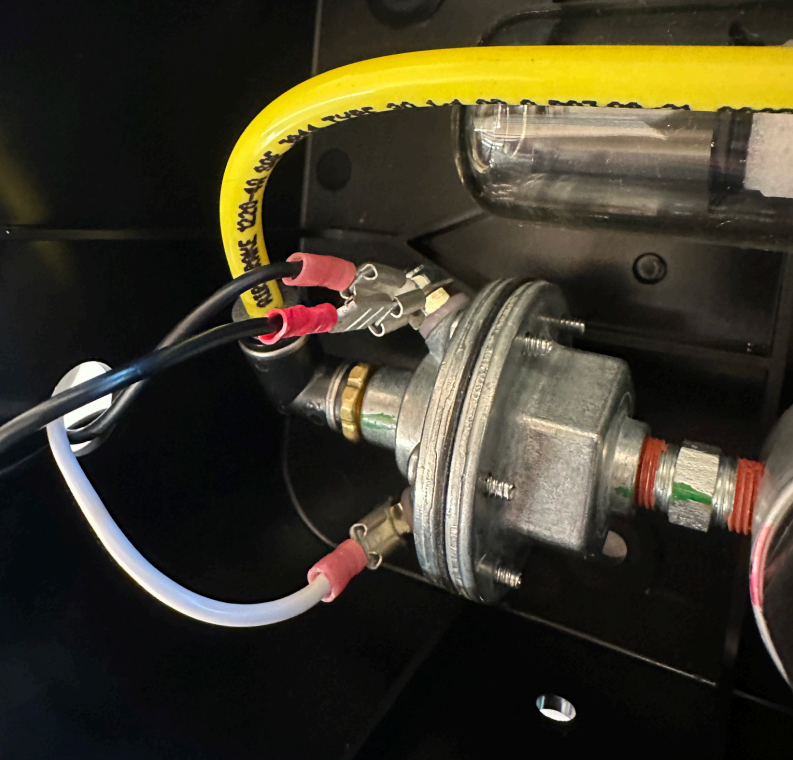

Connect the ATIS lamp and ACC-AG-BATIS-MER cable to the terminal splitter onto the flow sensing switch:
-
Install the terminal splitter onto the flow sensing switch.
-
Strip 5/16 in (8 mm) from the black wire on the black ACC-AG-BATIS-MER wire and crimp the quick disconnect to the wire. Connect this wire to the terminal splitter.
-
Strip 5/16 in (8 mm) from the black wire on the from the black ATIS lamp wire and crimp the quick disconnect to the wire. Connect this wire to the terminal splitter.
-
-
Route the remaining loose wire of the ACC-AG-BATIS-MER cable towards the installed AG, avoiding sharp corners or moving parts that could damage the cable.
-
Carefully strip 1in (2.5 cm) of the AG cable jacket, taking care to avoid damaging the wires. Pull away and remove any protective material from the wires inside.
-
Strip back 5/16 in (8 mm) of the green/white wire and slide the small heat-shrink tube over the wire for later use.
-
Using the butt splice, connect the black ATIS cable wire to the green/white AG cable input wire.
Some cable kits may have an asymmetrical splice with a thinner opening designed for the AG cable wire and the wider opening designed for the ATIS cable wire.
-
Position the heat-shrink tube over the connection and use a heat gun or torch to carefully shrink the heat-shrink tube until the adhesive starts to flow out of the shrink tube.
-
Carefully bundle any excess input wire using cable ties every 12-18 in (30-50 cm). If securing to air hoses or other sensitive components, take care not to over-tighten the cable ties.
-
Configure Auxiliary Input 1 on the AG for the ATIS Lamp.
-
Validate that the ATIS lamp functions properly, following the manufacturer's instructions to test the ATIS lamp.
-
To monitor ATIS lamp activations, see Trailer ATIS Visibility and Alerts.
-
On the lamp harness, choose a convenient location to cut the connector and strip back 1 in (2.5 cm) of the cable jacket to expose the conductors.
-
Strip back 5/16 in (8 mm) of the insulation on each conductor.
-
Slide the large heat-shrink tubing over one side of the cable for later use.
-
Using the 14-16 AWG (medium) heat-shrink insulated butt splice, reconnect the 12V power lead (typically white).
-

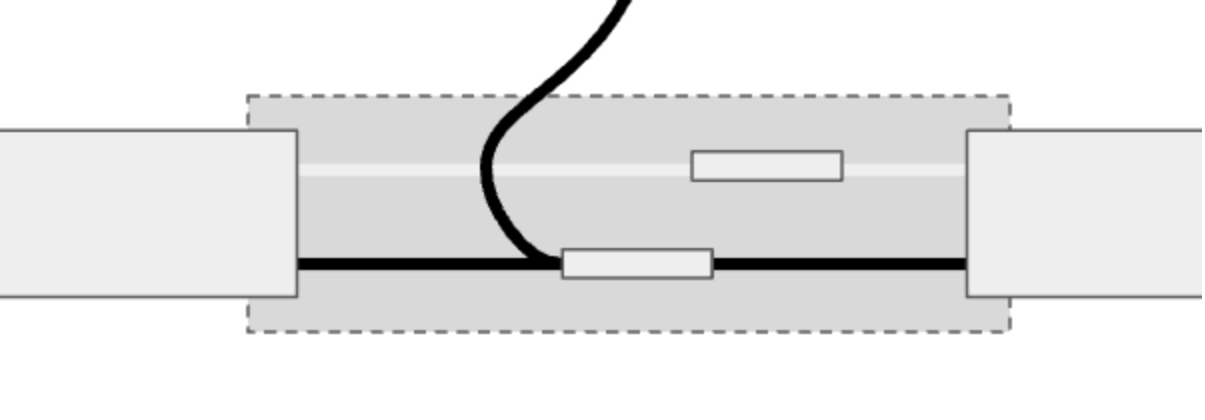

Twist together the black input wire from the ACC-AG-BATIS-MER cable with the black wire in the lamp wiring harness and insert these wires into one side of the 14-16 AWG heat-shrink insulated butt splice. Crimp wires to secure them to the butt splice.
-
Insert the remaining black wire from the lamp wiring harness into the other side of the butt splice. Crimp the connection to secure it to the butt splice.
-
Use a heat gun or torch to shrink the two butt splices.
-
When the butt splices have cooled, slide the large heat-shrink tube over the connection and use a heat gun or torch to shrink the tube.
-
Route the remaining loose wire of the ACC-AG-BATIS-MER cable towards the installed AG, avoiding sharp corners or moving parts that could damage the cable.
-
Carefully strip 1in (2.5 cm) of the AG cable jacket, taking care to avoid damaging the wires. Pull away and remove any protective material from the wires inside.
-
Strip back 5/16 in (8 mm) of the green/white wire and slide the small heat-shrink tube over the wire for later use.
-
Using the butt splice, connect the black ATIS cable wire to the green/white AG cable input wire.
Some cable kits may have an asymmetrical splice with a thinner opening designed for the AG cable wire and the wider opening designed for the ATIS cable wire.
-
Position the heat-shrink tube over the connection and use a heat gun or torch to carefully shrink the heat-shrink tube until the adhesive starts to flow out of the shrink tube.
-
Carefully bundle any excess input wire using cable ties every 12-18 in (30-50 cm). If securing to air hoses or other sensitive components, take care not to over-tighten the cable ties.
-
Configure Auxiliary Input 1 on the AG for the ATIS Lamp.
-
Validate that the ATIS lamp functions properly, following the manufacturer's instructions to test the ATIS lamp.
-
To monitor ATIS lamp activations, see Trailer ATIS Visibility and Alerts.
This installation guide contains typical information specific to products manufactured at the time of its publication. The contents of this guide do not constitute a warranty and are for reference only.
Do not attempt to repair this product, use any third-party replacement parts with this product, or otherwise modify this product except in accordance with product manuals or as otherwise instructed by Samsara. Failure to do so may cause property damage, lead to physical injury, or void your product warranty.
Any installation not in accordance with the instructions in the installation guide or otherwise in the documentation may result in physical injury or property damage.
Do not use this product other than as described by the relevant IP rating or recommended operating conditions. Damage or injury may result.
This hardware and any associated software may not be compatible with third-party products and/or services. This hardware and associated software may interact, interface, or integrate with third party products and/or services and may not be validated or supported by such third parties and may interfere with the operations of or void warranties for such third party products and/or services.
Failure to follow mounting instructions may create risk of physical injury or property damage from falling objects.
If mounting the hardware to a building wall, check for wiring or plumbing before drilling any holes.
