Asset Gateway - Trailer 7-Way Wiring - CBL-AG-BPWR

  • Updated
  • Updated
Avatar
Written by Charissa F.
  • Updated
Requires one of the following licenses:

CBL-AG-BPWR with AG52 or AG53

Install a powered Asset Gateway (AG) using the CBL-AG-BPWR cable to draw power from the trailer’s 7-way wiring. This setup mounts the AG on the trailer and connects the cable’s wire leads directly to the trailer-side wiring behind the 7-way socket, providing continuous power for GPS location and trailer status reporting.

Note

To confirm compatibility, see Installation Guides by Asset Type.

To enable real-time trailer connectivity through the 7-way connector, use the following workflow.

  1. Activate the device in the Samsara dashboard if you have not already done so.

    Log in to the Samsara dashboard at the regional Samsara cloud URL assigned to your organization (such as cloud.samsara.com, cloud.ca.samsara.com, or cloud.eu.samsara.com), or go to cloud.samsara.com/activate. You can also follow the link in your Order Shipped email.

    Caution

    Before beginning work on the trailer, ensure it is taken out of service and secured with wheel chocks and a glad hand lock.

  2. Select the desired mounting location and clean thoroughly.

    Tip

    Consider the following best practices when selecting a mounting location for the AG:

    • Ensure that the device and cables are not at risk of being damaged by moving parts. If possible, test the device in the intended mounting location before final installation.

    • Verify that the cable has adequate clearance to reach both the AG and the electrical connection.

    • For the most reliable connectivity and performance:

      • Mount the AG as close to the trailer edge as possible.

      • Ensure that at least one side of the AG is unobstructed—facing the sky or ground, for example.

      • Position the AG vertically. Avoid mounting it with the back facing directly upward or downward, such as lying flat on its back or front.

    • Avoid installing the device within metallic structures, such as inside a metal trailer. This may interfere with cellular and GPS connectivity.

  3. To mount your AG, follow the corresponding installation instructions for the AG mounting hole type:


    AG Mount by Hole Type

    1.png Round mounting holes

    1. To secure the AG, first drill pilot holes using an 11/16-inch drill bit. Then, attach the AG using the two provided #8 self-drilling screws.

      Caution

      To prevent damage to the mounting tabs, tighten screws to a maximum torque of 1.4 Nm (12.4 lbf-in). If using your own screws, ensure they are not larger than the size specified below.


    2. Plug the cable into the AG and twist to lock.


    2.png Oval mounting holes

    1. Attach the mounting bracket to the mounting surface using one of the following methods:

      Caution

      To prevent damage to the mounting tabs, tighten screws to a maximum torque of 1.4 Nm (12.4 lbf-in). If using your own screws, ensure they are not larger than the size specified below.


      • Self-drilling screws: Use the provided #8 self-drilling screws.


      • Machine screws: Drill through-holes for the mounting bracket and secure it using the provided 6-32 machine screws, washers, and lock nuts.


    2. Securely mount the AG to the bracket using the two provided machine screws.

      Caution

      To prevent damage to the mounting tabs, tighten screws to a maximum torque of 1.4 Nm (12.4 lbf-in). If using your own screws, ensure they are not larger than the size specified below.


    3. Plug the cable into the AG and twist to lock.


  4. Run the length of the cable to the 7-way connector and use the zip ties to fasten the cable to the trailer.

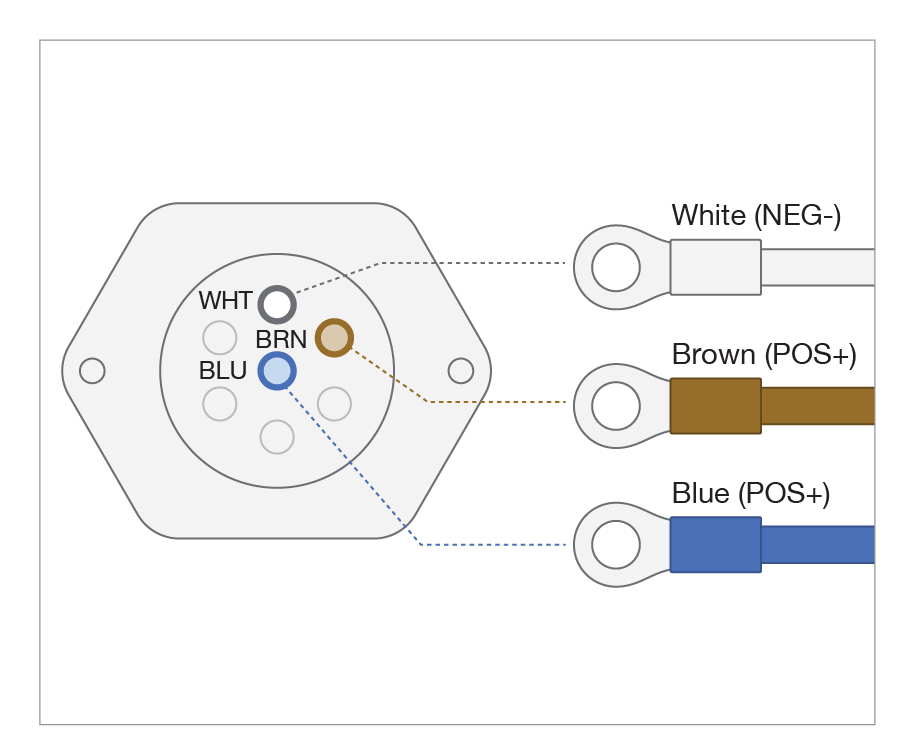

  5. Connect the wires on the other end of the cable to the 7-way connector:


    1. Connect the White wire (ground) to negative.

    2. Connect the Brown wire (head/tail lights) to 9-31 VDC power.

    3. Connect the Blue wire (ABS/Constant Power) to 9-31 VDC power.

    4. Cap the unused Green/White wire (Input 0).

  6. Cap any unused wires.

  7. Complete the AG52/AG53 Device Setup.

  8. Manage the trailer from the Samsara dashboard.

Note

If you observe a cable error when you install the AG with the installer app, disconnect and reconnect the cable to the AG. Ensure the cable is correctly aligned with the 7-way connector and securely locked onto the asset gateway.

AG LED Statuses and Actions

The following tables summarize the LEDs you may observe during initial installation. Locate your AG model and perform the action that corresponds to the observed LED behavior.

AG53 LED Statuses and Actions

LED Indicator

Status

Action


Blinking white LED

No connection, activation in progress:

  • No issues detected

  • Attempting to connect to cellular and GPS

Wait for change to device LED to confirm status. No additional action required.

Device registration can take up to 30 minutes to complete.


Solid green LED

Successful connection:

  • Cellular connection: OK

  • GPS: OK

Confirm the device is active in the Samsara dashboard (Overview > Assets > Unpowered).

Device registration can take up to 30 minutes to complete.


Solid red LED

Unsuccessful connection:

  • Cellular connection: Fail

  • GPS: Fail

  1. Ensure that the device is outside and avoid obstructions such as underground structures, heavily insulated buildings, bridges, and trees.

  2. Ensure that the device has a clear view of the sky and is within cellular range.

  3. Press and hold the button for 1-2 seconds and perform the action that corresponds to the observed LED behavior.


Solid blue LED

Partial connection:

  • Cellular connection: OK

  • GPS: Fail

  1. Ensure that the device is outside and avoid obstructions such as underground structures, heavily insulated buildings, bridges, and trees.

  2. Press and hold the button for 1-2 seconds and perform the action that corresponds to the observed LED behavior.

AG52 LED Statuses and Actions

LED Indicator

Status

Action


Solid green LED

Successful connection:

  • Cellular connection: OK

  • GPS: OK

Confirm the device is active in the Samsara dashboard (Overview > Assets > Unpowered).

Device registration can take up to 30 minutes to complete.


Solid red LED

Unsuccessful connection:

  • Cellular connection: Fail

  • GPS: Fail

  1. Ensure that the device is outside and avoid obstructions such as underground structures, heavily insulated buildings, bridges, and trees.

  2. Ensure that the device has a clear view of the sky and is within cellular range.

  3. Press and hold the button for 1-2 seconds and perform the action that corresponds to the observed LED behavior.


Solid blue LED

Partial connection:

  • Cellular connection: OK

  • GPS: Fail

  1. Ensure that the device is outside and avoid obstructions such as underground structures, heavily insulated buildings, bridges, and trees.

  2. Press and hold the button for 1-2 seconds and perform the action that corresponds to the observed LED behavior.


Solid yellow LED

Partial connection:

  • Cellular connection: Fail

  • GPS: OK

  1. Ensure that the device has a clear view of the sky and is within cellular range.

  2. Press and hold the button for 1-2 seconds and perform the action that corresponds to the observed LED behavior.
