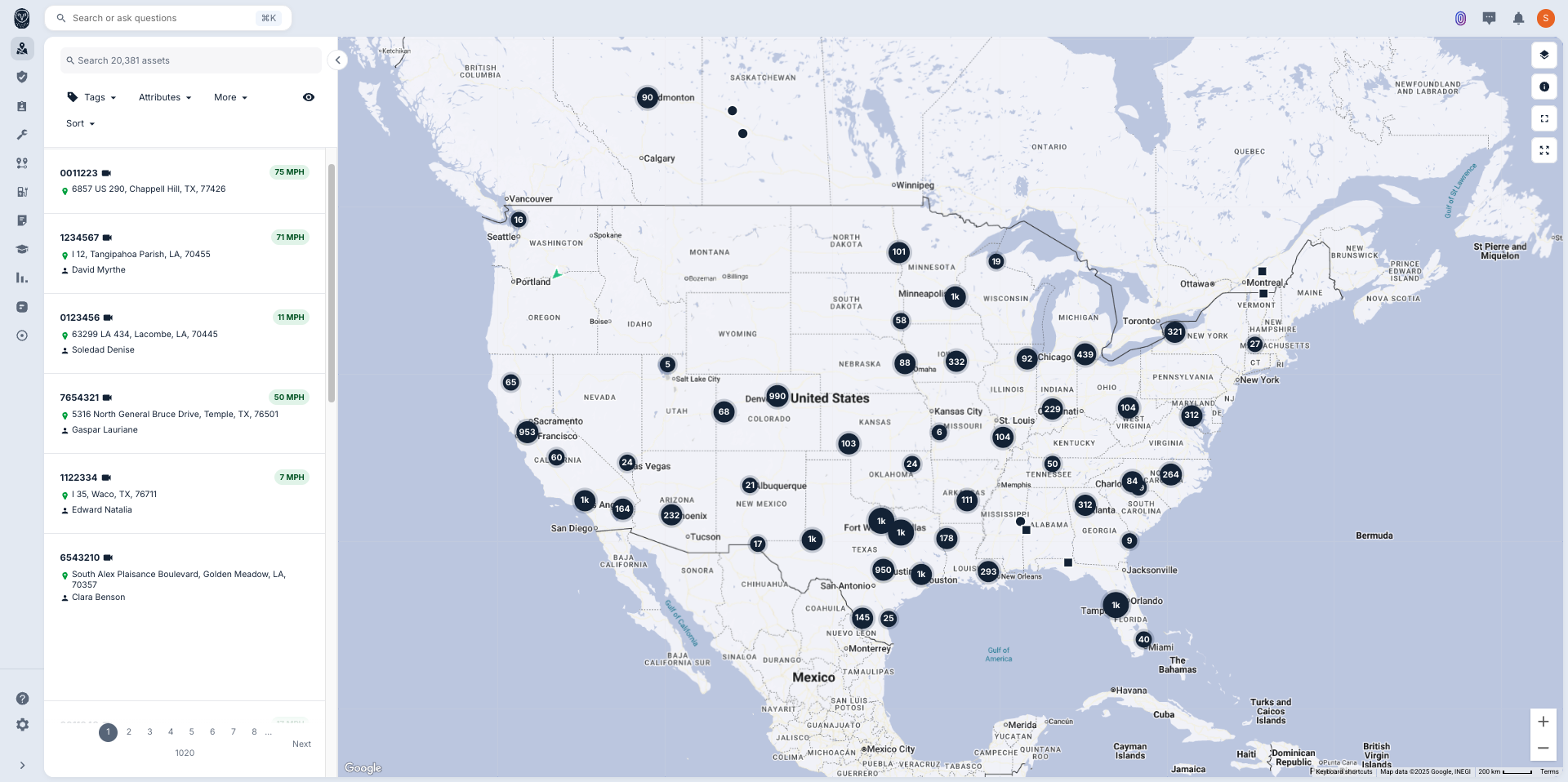

The Fleet Overview Map () gives you real-time visibility into your entire fleet, displaying the live locations of your Samsara gateways, vehicles, and assets on an interactive map.
From this view, you can track vehicle movements, monitor route progress, view asset details, and take location-based actions like vehicle dispatch. You can also customize the map for deeper operational insights on traffic, weather, and other conditions impacting your fleet.
You can interact with the map in these ways:

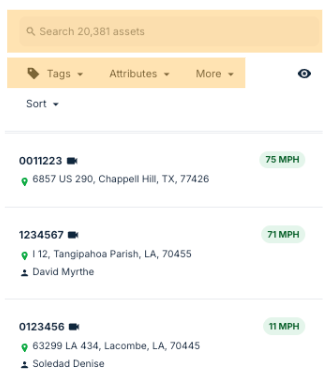

The search bar on the left side of the Fleet Overview Map () helps you find vehicles, assets, gateways, and locations. You can also filter by Tags, Attributes, and other characteristics.
When you search or apply filters, both the map and asset list automatically update based on your selections. To keep the view simple and focus on the assets that matter most, you can search and filter in the following ways:
-
Search assets: Displays only assets that meet your search. You can search by asset name, asset location, driver name, VIN, or gateway serial.
Note
By default, search results include partial matches. To limit your search to exact matches, use quotation marks around your search term. For example, "North Oaks" will limit results to exact matches, but North Oaks will return more results, including partial matches.
-
Filter by Tags: Displays only assets that have been assigned specific tags, such as for teams, job types, or other unique attributes.
-
Filter by Attributes: Displays only assets that have been assigned specific attributes, such as for License Type, HOS Status, or Vehicle Type.
-
Filter by More: Displays assets based on Asset Type, Asset Status, or Asset Name.

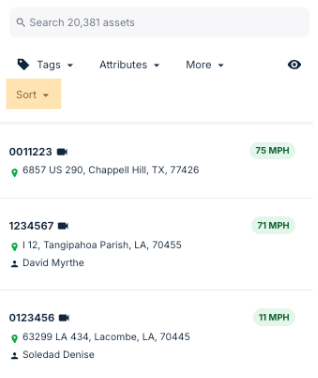

By default, the asset list on the left side of Fleet Overview Map () is sorted by which assets are In Motion. To change the list order, click Sort.
Available sort options include:
-
In Motion (default): Sorts the list based on vehicles that are currently in motion or were recently moving
-
A➞Z: Sorts based on name in ascending order
-
Z➞A: Sorts based on name in descending order
-
In Risk Zone: Sorts the list based on assets that are currently in Risk Zones. To designate a geographic area as a Risk Zone, you can add or edit an address.
You can customize the asset list on the left side of the Fleet Overview Map () to see more information in context, such as fuel levels, Hours of Service, and device issues needing attention.

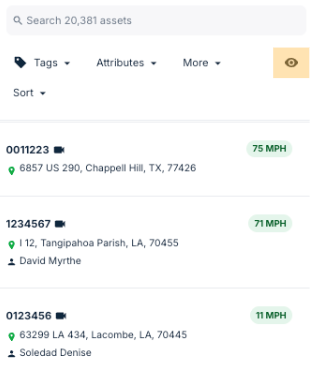

To display additional asset details, click Display Options () at the top right of the asset list, then select the information you want to display.
The additional information you can display depends on the asset type and installed hardware, and includes:
|
Field |
Description |
|---|---|
|
Asset Information |
|
|
Fuel / Energy level |
Level of fuel or charge the vehicle has left, displayed as percentage |
|
Idling Duration |
Indicates the length of time a vehicle has been Idle, Moving, or Off, for example |
|
Driver Information |
|
|
In / Nearing Violation |
Indicates whether the driver is in violation, or near violation, of Hours of Service (HOS) rules |
|
Hours of Service |
Displays the length of time the driver has remaining on their drive, and the length of time remaining on their shift |
|
Asset Details |
|
|
Asset Cost Center |
Displays the Asset Cost Center attribute assigned to this asset, if applicable |
|
Asset Status |
Displays the Asset Status attribute assigned to this asset, for example |
|
Analog Camera Setup |
Indicates how the Camera Connector captures footage from a third-party camera, if one is installed ( |
|
Driver Details |
|
|
Worker Type |
Displays the Worker Type attribute assigned to this driver, if applicable |
|
Driver Cost Center |
Displays the Cost Center attribute assigned to this driver, if applicable |
|
Other |
|
|
Device Issues |
Flags devices that need attention, including devices that are offline, running on battery, low on battery, or experiencing other health issues. To troubleshoot the device, click |
You can view more asset details directly in the Fleet Overview Map () by clicking on a map marker—an icon that represents a vehicle, asset, or points of interest, such as moving vehicles (
), online assets (
), and Connected Sites (
).

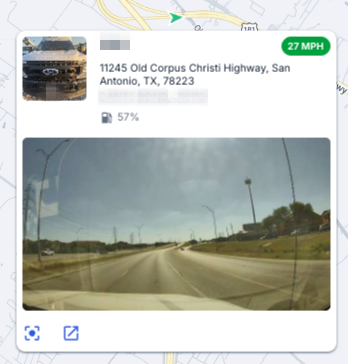

When you click a map marker for a vehicle or other asset, you will see a preview with the asset name, live location and speed, driver assignment, fuel level, and a recent camera still, if available. The specific information displayed depends on the asset type and installed hardware.
From this preview, you can Zoom to () the exact asset location, or Open in new tab (
) to open the full asset details.
When you Open in new tab (), a complete list of asset details displays on the left, including driver and HOS information, sensor data, asset details, diagnostics, and more. The specific information displayed depends on the asset type and installed hardware.

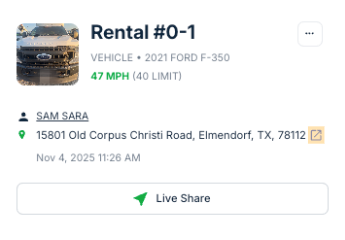

To see the Google Maps street view at this location, select Open in Street View (), located beside the location address.
You can perform quick actions directly from the map without leaving the Fleet Overview, such as adding an address to your address book or dispatching vehicles to a specific location.
To perform a location-based action, right-click any location on the map, then choose from the following:
-
Add this address to your address book: Save frequently visited locations for future reference or dispatch. You can also display these addresses as a Map Overlay for quick reference.
-
Search for vehicles that were near here: Review recent vehicle activity around the selected point.
-
Dispatch a vehicle here: Send an active vehicle to the selected location.
-
Open the Map Editor: View auto-detected speed limits and edit speed limit overrides for a particular road segment.
