Important
Engine Immobilizer functionality is provided “as is” without any performance guarantee or warranty and that Samsara is not responsible for any damage or harm caused by your use of the Engine Immobilizer or by any emergency incident you experience. In the case of an emergency, you should still take all available actions you can to protect yourself and your vehicle.
Additional suggested tools:
-
Multimeter
-
Heat gun
-
Wire crimper (18–26AWG)
-
Wire stripper (18–26AWG)
-
Surface cleaning supplies (water, soap, cloth, etc.)
-
Drill with trim/tamper screw bits (Phillips, flathead, etc.)
Use the following instructions to install the Engine Immobilizer under the steering wheel area or behind the dashboard. This is the most common placement for the Engine Immobilizer. For other placements, you may need to adjust the workflow to suit your needs.
Important
Device is not waterproof. Install only in a dry location away from sources of water and condensation.
-

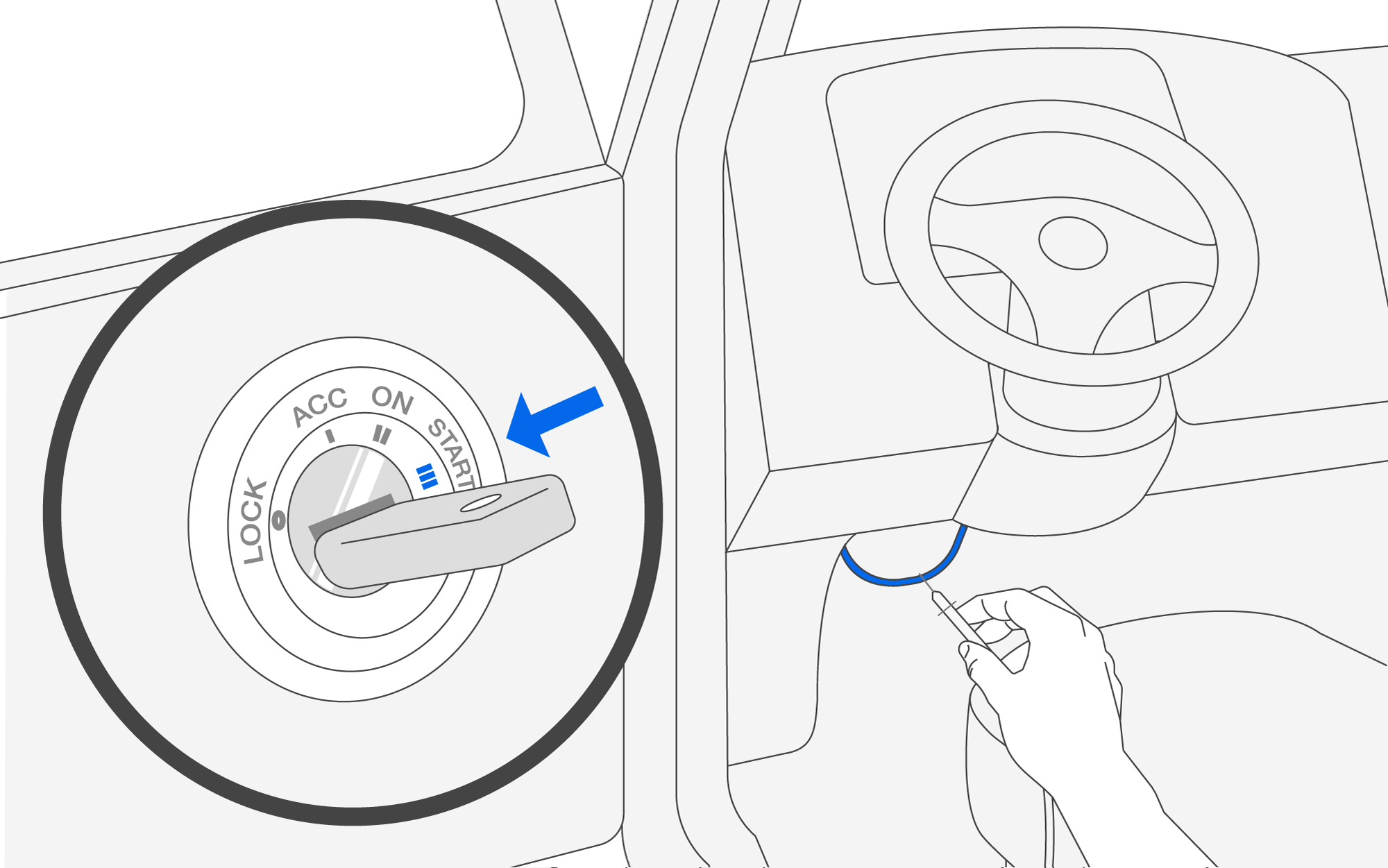

Locate the vehicle's starter line—typically near the starter solenoid within the steering column.
Use a multimeter to confirm the starter line shows 0V when the ignition is off, accessory, or on, and 12V or 24V only when the key is in the start position.
-

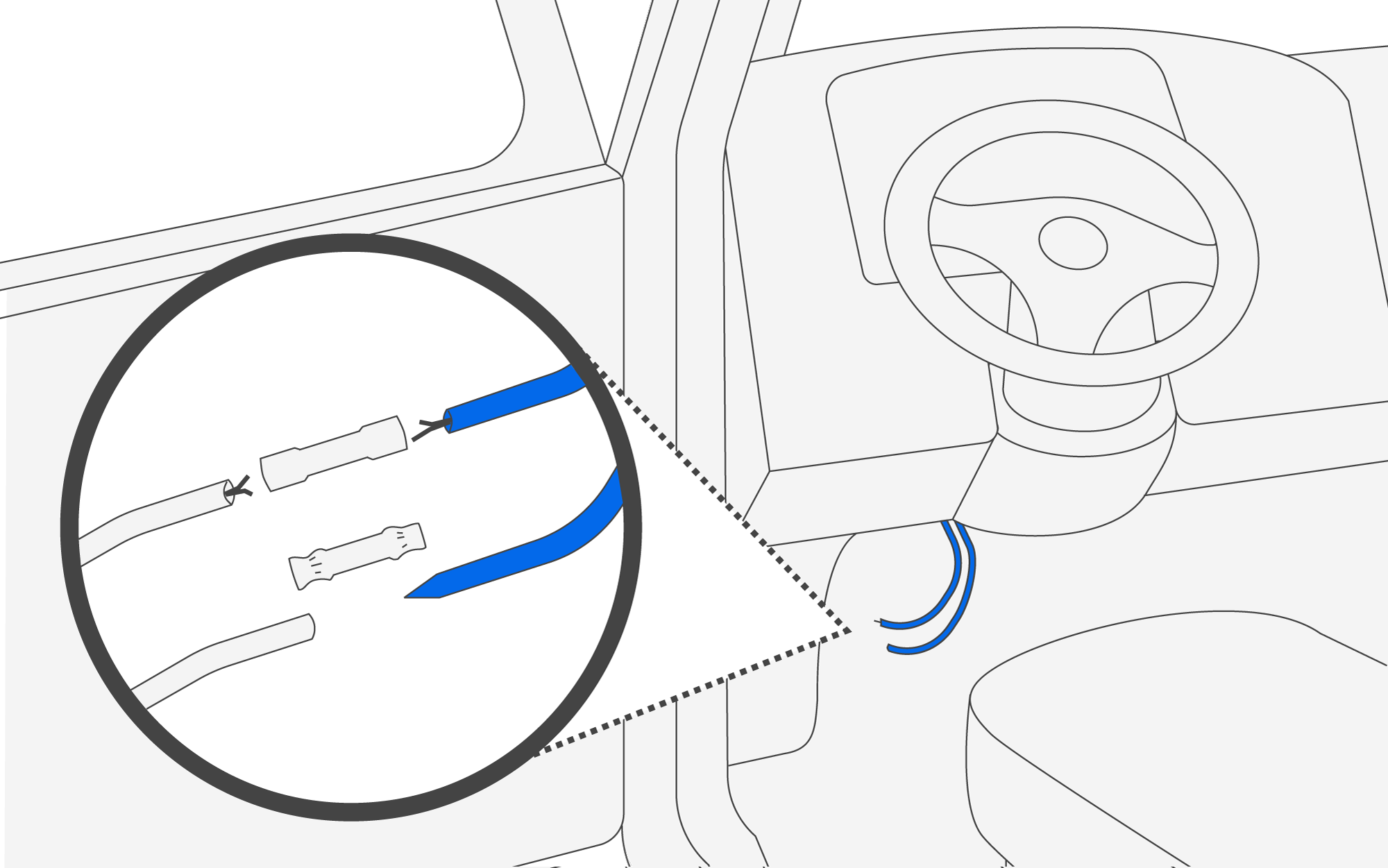

Cut the starter wire and connect it to the Engine Immobilizer interrupt wires.
Splice using the included butt splices. Crimp and apply heat to shrink for secure connections.
-

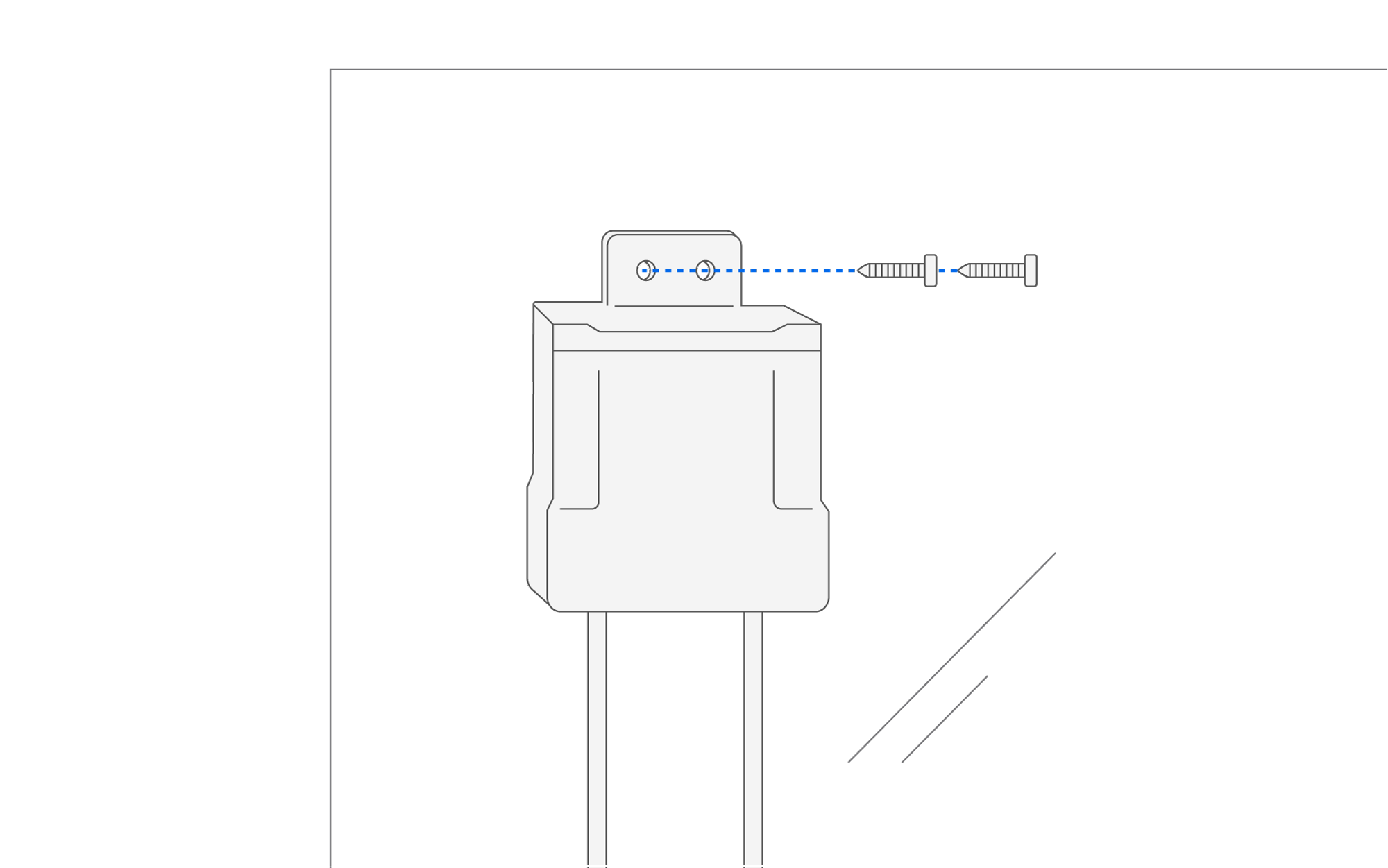

Mount the Engine Immobilizer using the included self-tapping screws.
Choose a secure, hidden location on a rigid surface to reduce vibration.
-

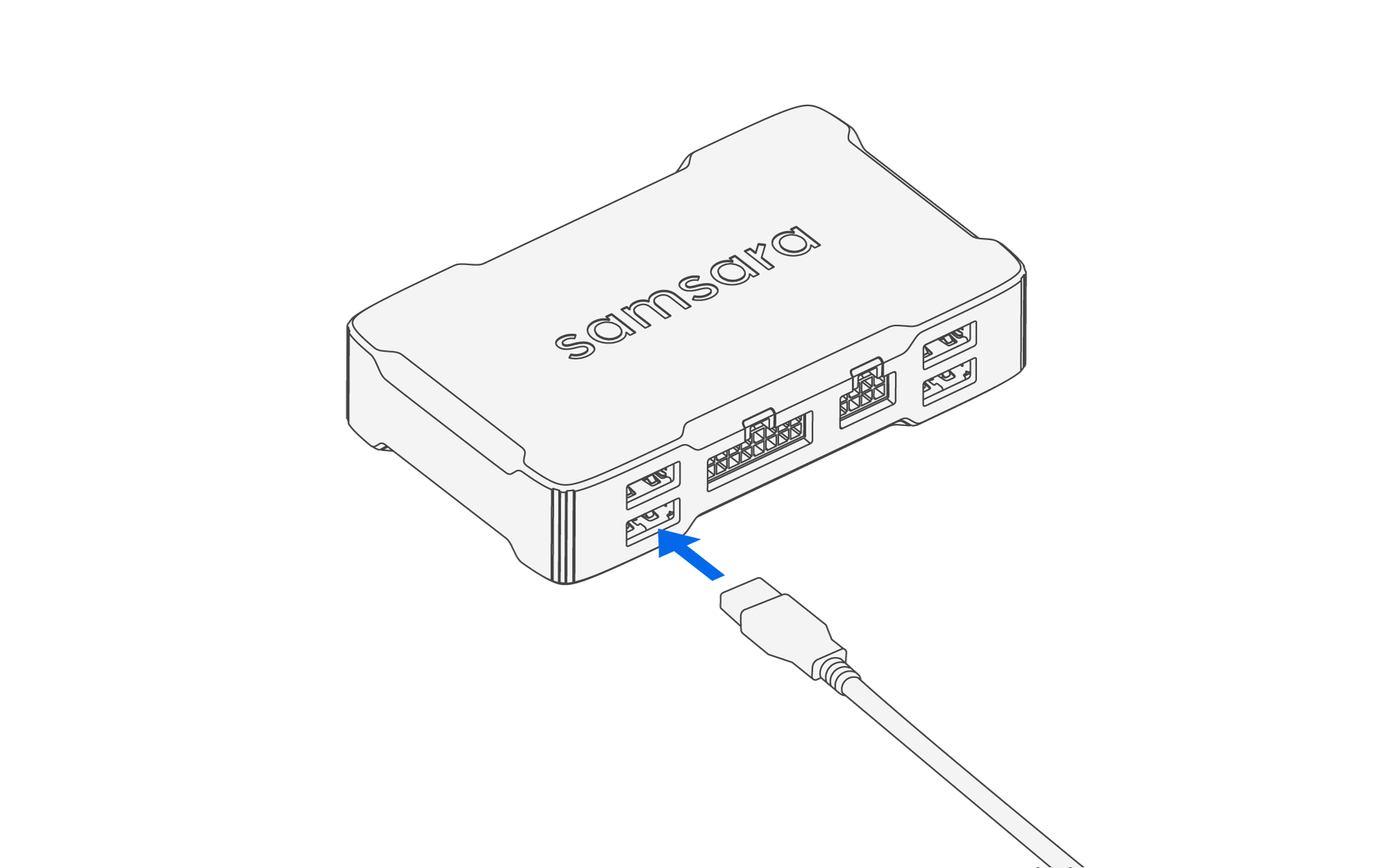

Connect the Engine Immobilizer to the Vehicle Gateway (VG).
Plug the Engine Immobilizer's USB cable into the VG's USB port. If the VG isn’t installed yet, follow its installation guide first.
-
Verify the installation.
After installation, immediately verify proper setup using the Samsara dashboard, which requires permission to access the vehicle's information. Improper setup may result in false tamper alerts and unintended immobilization.
-
Configure the relay and immobilization settings from the security settings.
-
To manually control the Engine Immobilizer and test functionality, Test Engine Immobilizer Activation.
-
To confirm the tamper detector is properly installed, check the tamper status on the vehicle page. After the removable component is reinstalled, there should be no tampering indication.
This installation guide contains typical information specific to products manufactured at the time of its publication. The contents of this guide do not constitute a warranty and are for reference only. Consult applicable local laws and ordinances to determine any installation restrictions. It is the installer’s responsibility to comply with all applicable laws and ordinances when installing this hardware.
Do not attempt to repair this product, use any third-party replacement parts with this product, or otherwise modify this product except in accordance with product manuals or as otherwise instructed by Samsara. Failure to do so may cause property damage, lead to physical injury, or void your product warranty.
Any installation not in accordance with the instructions in the installation guide or otherwise in the Documentation or use of this product other than as described by the relevant IP rating or recommended operating instructions may result in unexpected downtime, system failure, physical injury, or property damage, including water damage. Failure to follow these directions could result in serious injury or death.
This hardware and any associated software may not be compatible with third party products and/or services and may interfere with the operations of or void warranties for such third party products and/or services.
Do not install hardware while the vehicle is unsecured or while the vehicle is turned on unless instructed to turn on the vehicle by the installation guide. Do not install or adjust hardware while driving or operating the vehicle. Do not install this hardware in a location that could interfere with the driver’s visibility or operation of vehicle controls or near airbag panels or within the working range of an airbag.
Do not install this hardware on or near flammable or otherwise hazardous materials. This hardware may burst if placed near flammable or other hazardous materials, creating a risk of fire, burn, shock, or other serious injury. This product includes capacitors, which may present a potential fire, explosion, electric shock, or burn hazard. Do not touch any capacitors within this hardware.
Please always pay attention to your surroundings and drive safely, comply with all traffic laws, and observe the road and driving conditions at all times. Do not rely on the product to alert the driver of safety hazards or to prevent collisions. The hardware and associated software may not work as intended depending on road conditions, other vehicles, weather, and other factors.
Keep this hardware between -40°F and 185°F (-40°C and 85°C). Failure to keep this hardware in the specified temperature range may result in safety risks.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
|
|
This symbol on the product(s) and / or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery, and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. |
