Note
By signing up for EBPMS, you understand that this is a Pre-Launch Offering as defined under Samara's Terms of Service.
When installing the Samsara AG53 Asset Gateway, selecting the correct cable and adapter combination is critical to ensuring compatibility with your trailer’s Electronic Braking System (EBS). This topic provides reference tables listing supported EBS vendors and cable requirements.
Use the table below to identify the appropriate Samsara cables and adapter cables required for connecting the AG53 Asset Gateway to supported Electronic Braking System (EBS) units. Compatibility varies by EBS vendor and generation, so double-check before you plug in—because guesswork and diagnostics don't mix.
|
EBS Model |
Adapter Cable |
Asset Gateway Cable |
|---|---|---|
|
(In-Out Connector) |
Not Needed |

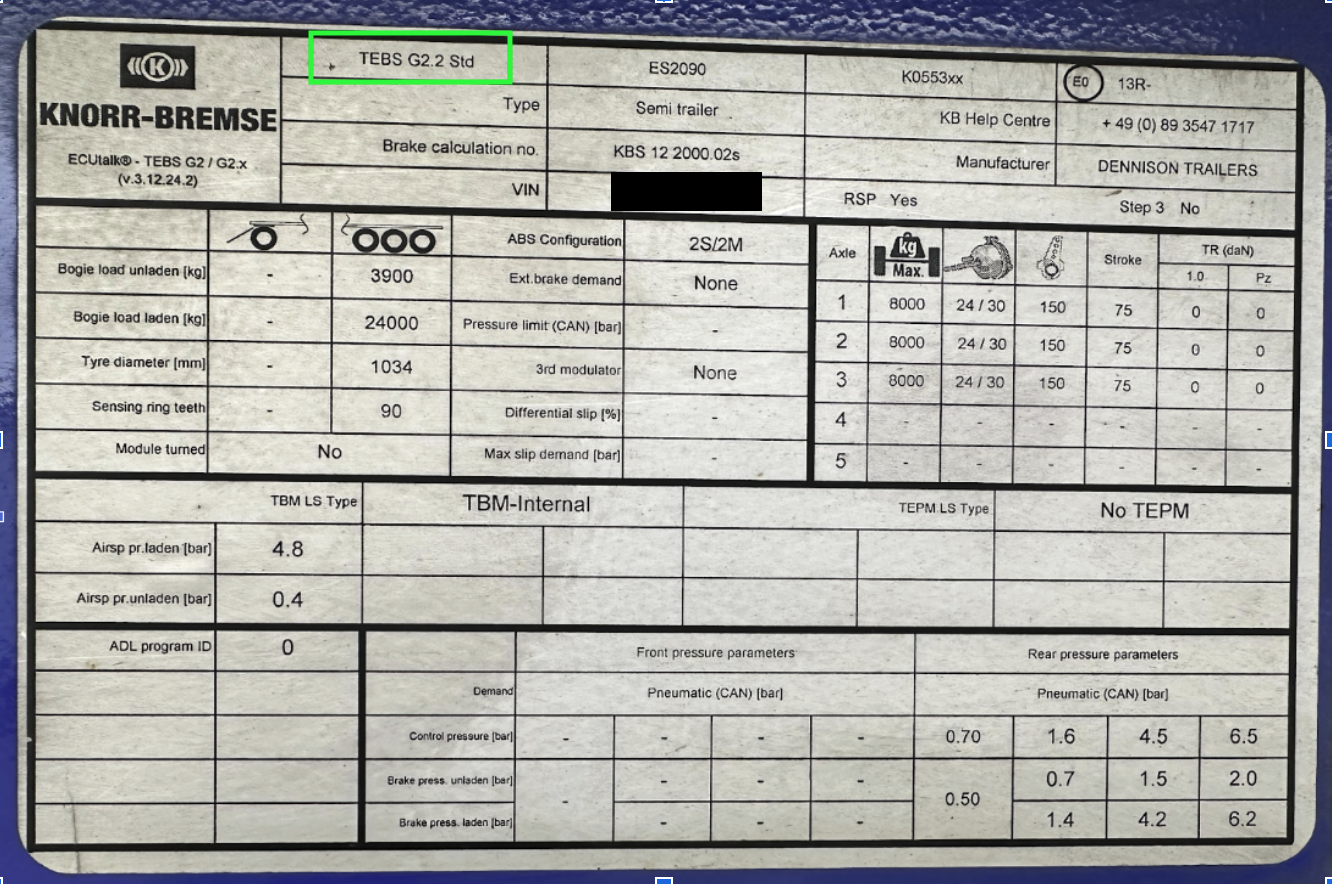

CBL-AG-BEBS-KBG2 (Y-cable with black connectors) |
|
(In-Out Connector) |
Not Needed |
CBL-AG-BEBS-KB22 (Y-cable with grey connectors) |
|
(DIAG Port) |
CBL-BEBS-HAL3 (Haldex Gen 3 to 4-pin DIN connector) |
CBL-AG-BEBS-4DIN (AG53 to 4-pin DIN connector) |
|
(TCAN Port) |

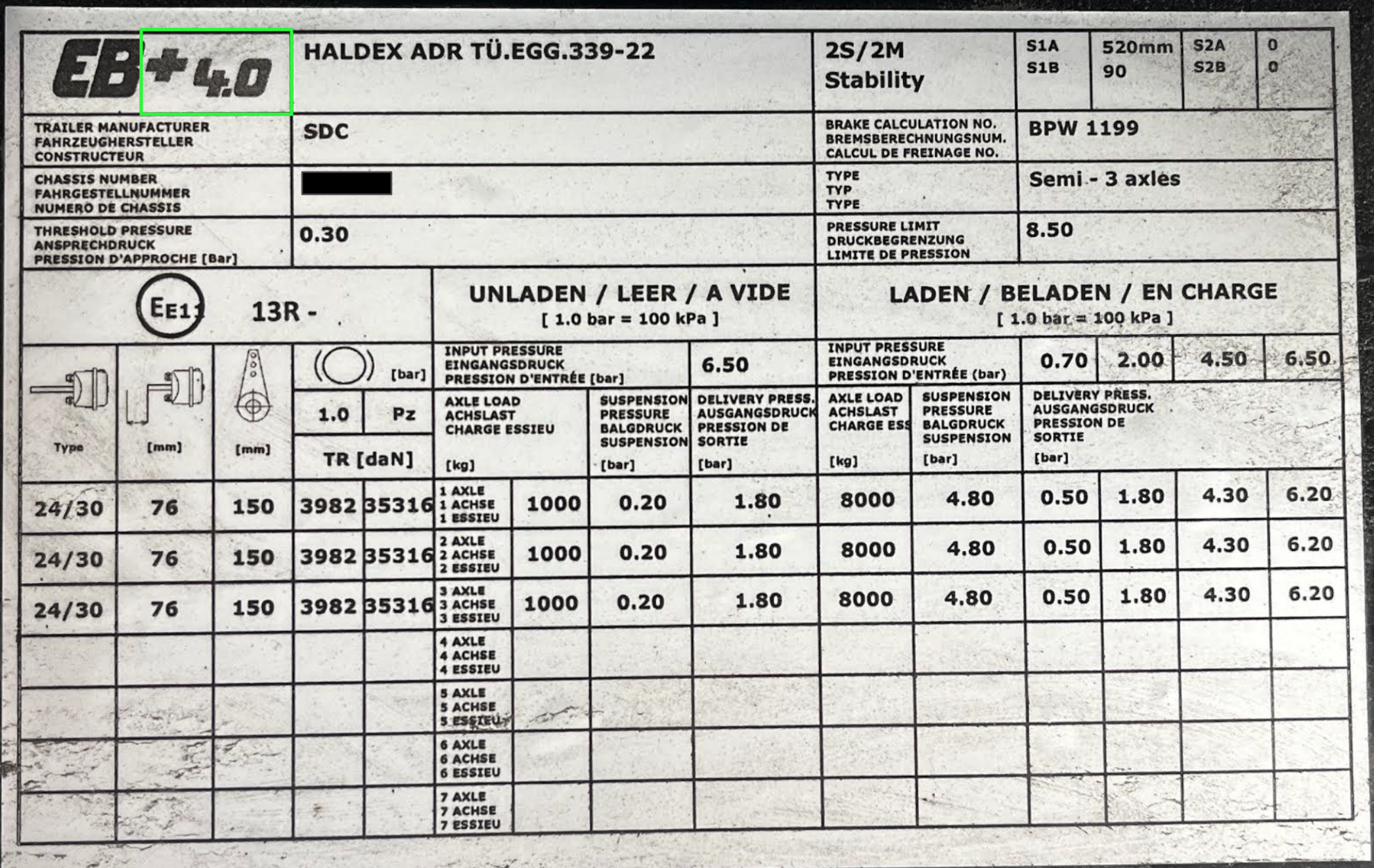

CBL-BEBS-HAL4 (Haldex Gen 4 to 4-pin DIN connector) |
CBL-AG-BEBS-4DIN (AG53 to 4-pin DIN connector) |
|
(Subsystem Port) |

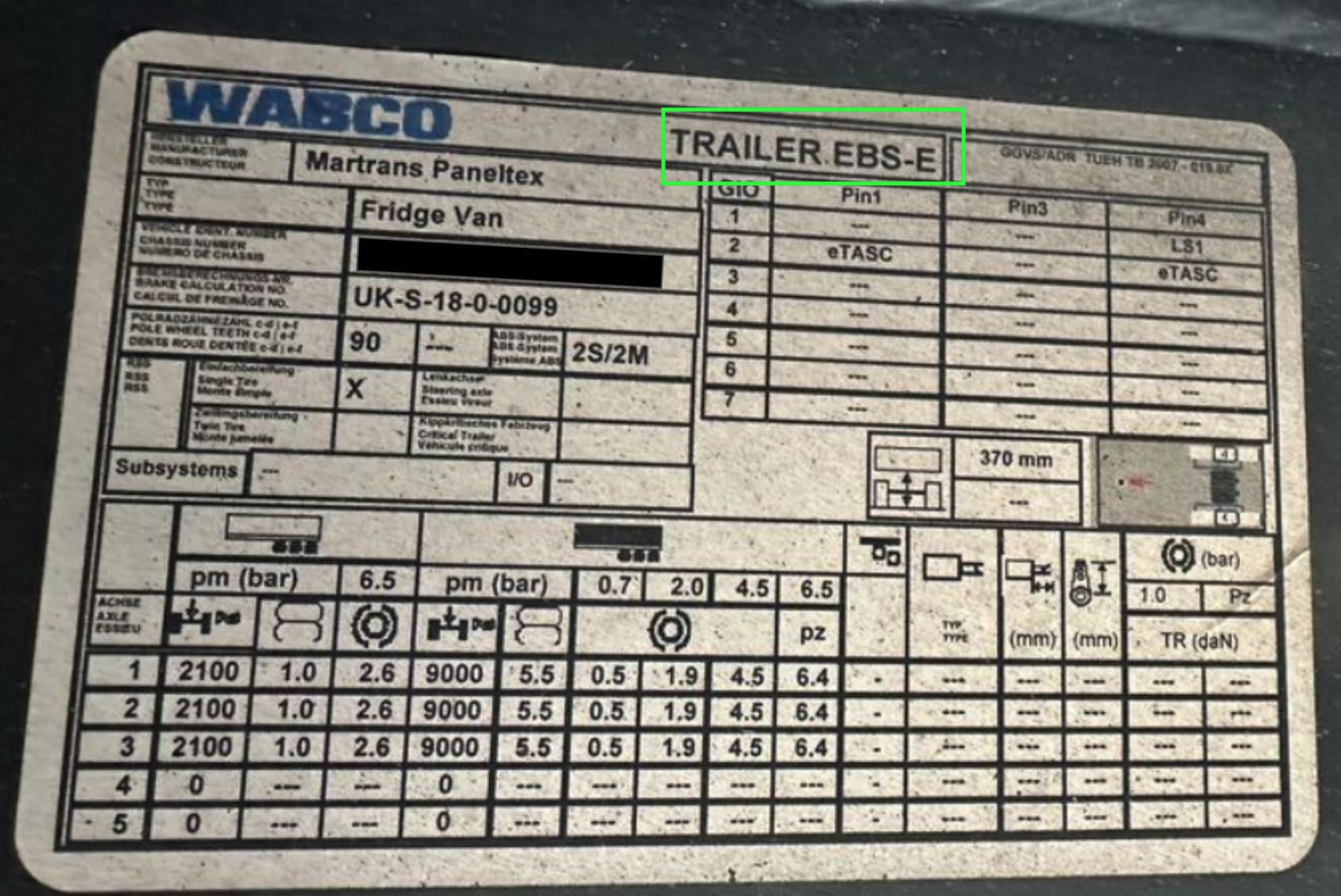

CBL-BEBS-WABE (Wabco Subsystem to 4-pin DIN connector) |
CBL-AG-BEBS-4DIN (AG53 to 4-pin DIN connector) |
