Accurate driver assignment is necessary to determine driver trips, mileage, drive time, and safety events. If your fleet cannot use the Samsara Driver App for driver assignment, has a high driver turnover, or has logistical difficulties distributing tokens or other physical assignment methods, you can use a dual-facing Samsara Dash Cam, such as a CM32 or CM34, along with a personalized QR Code for driver assignment.
Caution
To ensure accurate reporting, drivers must not share their unique QR code or use another driver's QR code. Samsara is not responsible for driver misuse of QR codes.
When you Configure and Send QR Codes for Driver Assignment, drivers can assign a driver to a vehicle equipped with a Vehicle Gateway (VG) and a dual-facing dash cam by using the inward-facing lens to scan their personalized QR code. You can also configure an optional in-cab alert to remind drivers to scan their QR code. The alert ends when the driver successfully scans their code or when the configured audio reminder threshold is met, whichever comes first.
Warning
Using QR codes for driver assignment does not substitute for the Samsara Driver App to manage Hours of Service. For HOS reporting, you must use a VG as an ELD in combination with the Samsara Driver App.
If you enable the optional in-cab alerts, when drivers are ready to make a trip and start the vehicle, the dash cam prompts them to scan the QR badge, within approximately 30 seconds. After the dash cam successfully recognizes the QR code, it stops the audible reminders and plays a success message. When you enable this setting, you can configure the frequency and duration of the audible reminders.
Note
In-cab reminders will play regardless of the driver assignment method used. For example, if a driver signs in using the Samsara Driver App, the reminder to sign in using the QR code will still play.
After you send a QR code access link, drivers have up to 30 days to access their QR code from the link. After drivers click the link, they can view and download their QR code to their mobile devices for easy QR code retrieval.
See Driver Assignment Using Your QR Code for the full driver experience.
QR code driver assignment is set on a per-vehicle basis; all drivers who use this vehicle must use this assignment method. However, if you utilize Automatic Driver Detection (Camera ID), you may choose to retain Camera ID as a backup method.
Certain vehicle selections will override a QR code-based assignment. For more information regarding the driver to vehicle assignment hierarchy, see Driver to Vehicle Assignments.
If you elect to print the QR code or to use your mobile device, use the following recommendations for best scanning results:
-
Print on matte paper such as standard printing paper or cardstock. If you choose to laminate printed QR codes, choose matte or low-gloss lamination. Shiny surfaces may be more difficult for the dash cam to detect.
-
Do not print codes on plastic-type surfaces.
-
For mobile device scanning, ensure that the full QR code badge image is visible on the screen and set your phone display setting to medium brightness. A full or low brightness can prevent detection by the dash cam.
-
Do not modify or augment the standard QR code badge format. It is important to maintain the provided QR code format, such as the padding around the QR code, to ensure the dash cam can properly detect the code. The following image displays acceptable and unacceptable QR Code formats:
Use the following workflow to setup or revoke QR code assignments or to access driver QR codes. When you send a QR code link to a driver, Samsara uses the Driver Phone Number from the Driver Profile Settings. If a number has not yet been saved to the driver profile, you can update the phone number using the following workflow to send a QR Code link to a driver's mobile device.
To configure QR codes, you must be a Full Admin or have a custom role with Driver Assignment access to Edit for the Manage QR Codes permission.
-
Select the Settings icon (
) at the bottom of your Fleet menu to view dashboard settings.
-
In Fleet settings, select Driver Assignment.
-
Enable QR Code Assignment.
-
Before you configure and save the QR Code settings, click Share or print QR codes to view QR Code Assignments.
-
Select the drivers to receive a QR code and select method of delivery:
-
Text a QR code access link: Click Text QR Code to send a mobile message the device of each driver.
-
Download QR code badge: To print or email the QR codes to your drivers, click More Actions > Download badge with QR code. See Driver Assignment Best Practices and Printing Recommendations for printing and mobile usage recommendations.
-
-

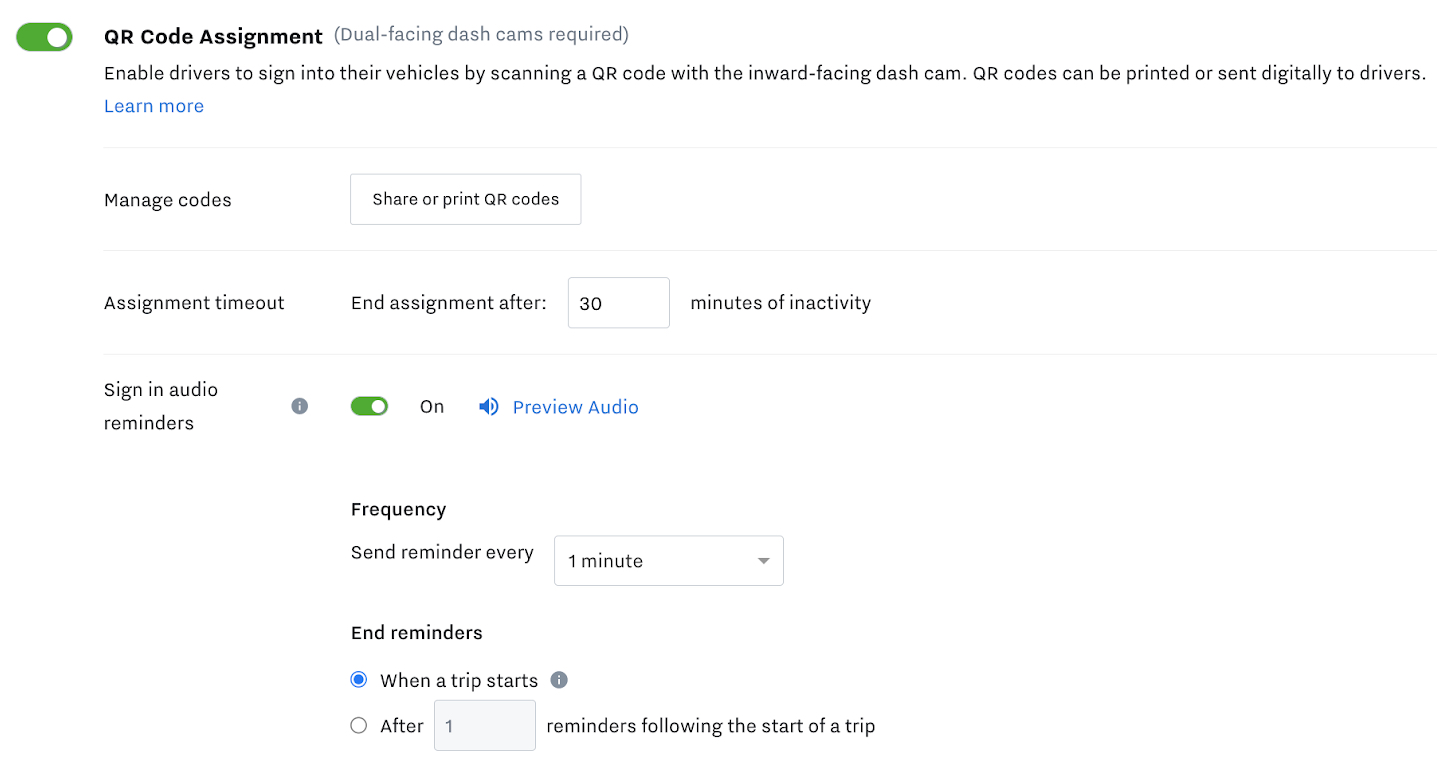

Configure the QR Code Assignment settings:
-
Assignment timeout threshold: Enter the minimum time (in minutes) of vehicle inactivity to end the assignment (5 minutes or greater). After the vehicle speed is less than 3 mph and the threshold is reached, the driver will automatically be disassociated with the vehicle and the assignment will end.
-
Sign in audio reminders: When enabled, you can configure the frequency and duration of the in-cab reminders:
-
Frequency: Set the Frequency to play the dash cam audio reminder to sign in (every 1 minute (default), 3 minutes, or 5 minutes).
-
End reminders: Select when to end reminders if the driver has not yet signed in and begins a trip: When the trip starts (default) or enter the number of reminders to play at the start of the trip.
-
-
-
To enable or disable your settings for specific vehicles, click Edit Individual Vehicles. Click Edit on the vehicle row and select the Driver Assignment setting (Default to Organization Setting (ON) (default), Enabled, Disabled).
By default, QR Code Assignment setting applies to all vehicles with an inward-facing dash cam.
-
Save to confirm the settings.
Settings become live in the selected vehicles as soon as you save these settings. Ensure you have distributed QR codes to drivers before you save your settings.
-
To revoke a badge and deactivate the QR code link, from Driver Assignment, click Share or print QR codes and select one or more drivers. Click More Actions > Revoke QR Code and click Revoke Code to confirm the change.
