By default, road-facing Trip images are uploaded to the vehicle Trip History and Trip Timeline at the start and end of every trip. If enabled, the Samsara Dash Cam also uploads inward-facing images and periodic trip images to document En Route progress during a trip. When the trip is complete, the Trip Timeline retains a visual summary of the trip, including route data.

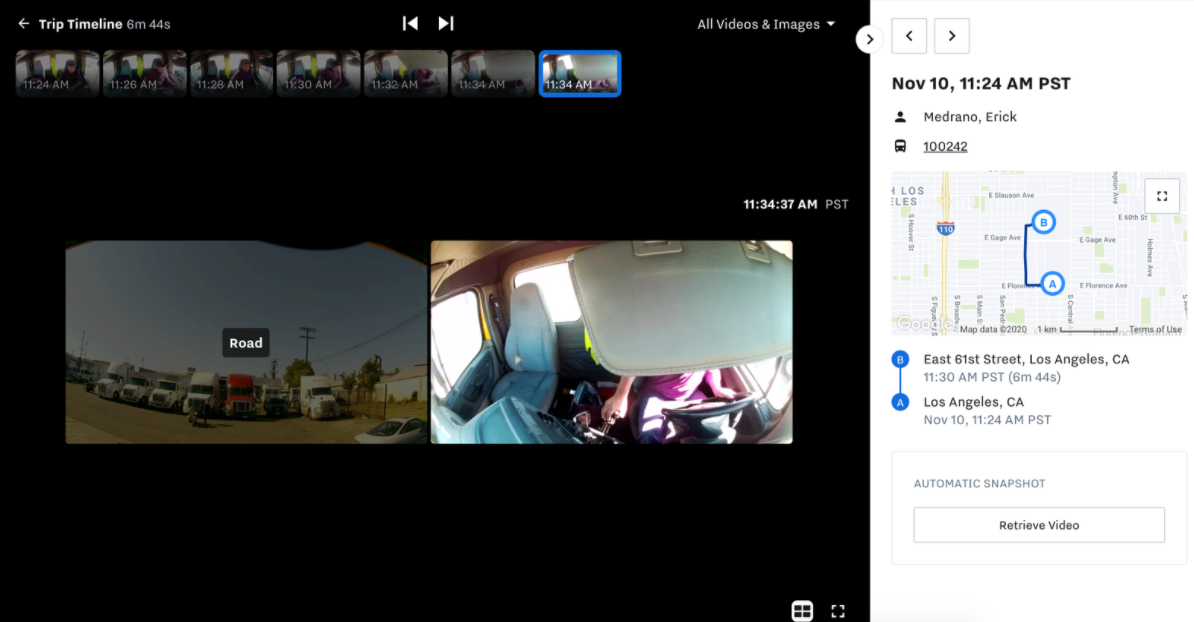

The following image shows an example of trip images available with the Samsara Dual-Facing Dash Cam and a multicam configuration.
Samsara Dual-Facing Dash Cam |

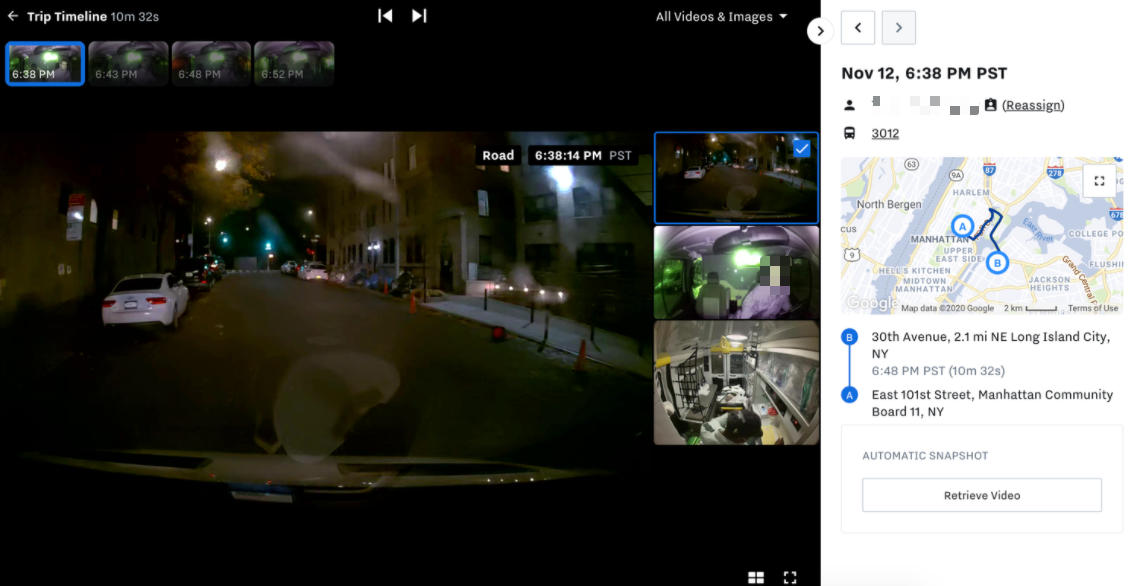

Multiple camera (multicam) |
The Trip Timeline can include stills and videos from a trip or from times when the camera was recording, even if the vehicle was not on a trip. Images and videos captured when the vehicle is not on a trip are associated with the most recently completed trip. Each image includes trip metadata such as the beginning and endpoint data, assigned driver, and vehicle ID.
If video is available, the thumbnail displays a color-coded indicator below the image with the following meanings:
-
Video request retrieval complete.
-
Video available from a detected safety event or by pressing the Panic Button.
For detailed information about when the dash cam is expected to record or capture images, see Dash Cam Recording Logic for Video and Images).
To view trip images and video, use the following workflow:
-
From Safety ( ), select Cameras.
-
Click the image for the dash cam of the vehicle you want to view. To narrow the scope of results in the report, search for devices or locate the dash cam by tags assigned to the camera or by Vehicle Status (Offline, Online, or Idling).
-
Select the trip from the list to view the Trip Timeline. To view camera footage using the Samsara Camera Connector, hover over the trip still and click the arrow to view image stills from the third-party camera.

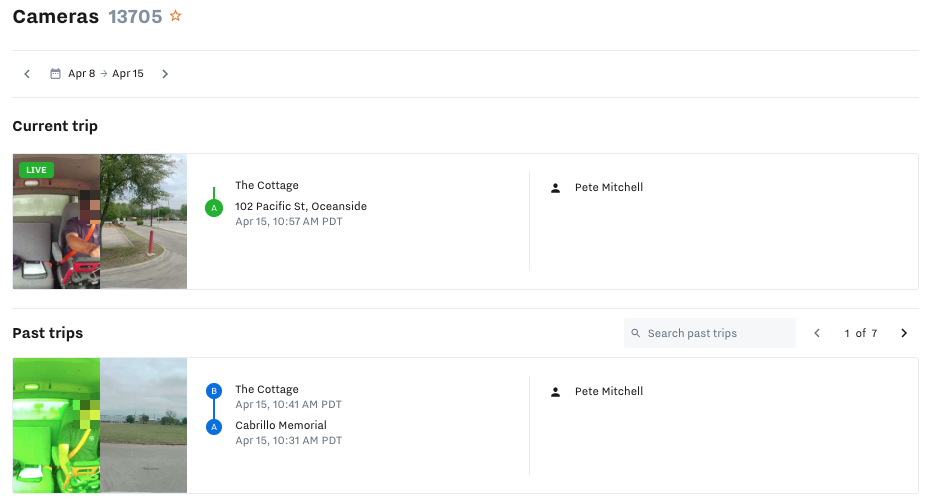

If the vehicle is en route currently, the Cameras report displays both the Current trip and Past trips.
-
To review video footage for completed trips, select Retrieve Video below the trip map or select View Safety Event to review the footage for a safety event detection.
Video retrieval is not available for in-progress trips. For more information on trip video requests, see Video Retrieval Process.
-
If your vehicle is equipped with multi-cams, edit the image orientation or camera display name. To rotate the orientation of the image, select the multi-cam thumbnail or video and rotate the image. To change the camera name, select edit ( ).
Samsara assigns a 4-digit number to new and unnamed cameras.
