After you connect an auxiliary input to a compatible device, such as a powered AG or VG, you can configure the type from the Samsara dashboard.
Use the following workflow to configure the auxiliary inputs for your asset:
-

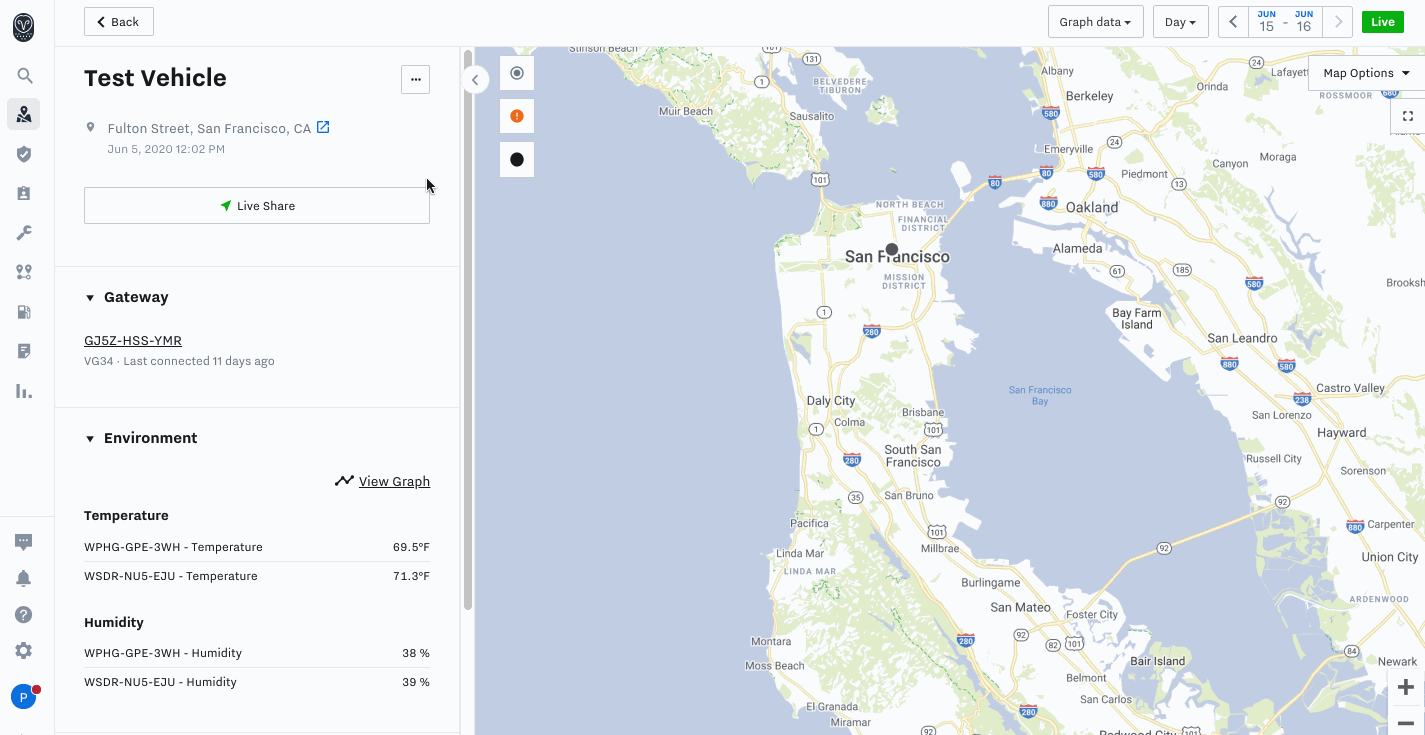

On the Dashboard Overview, select the asset for which you connected an auxiliary input.
-
From the more actions ( ••• ) menu, select Settings.
-

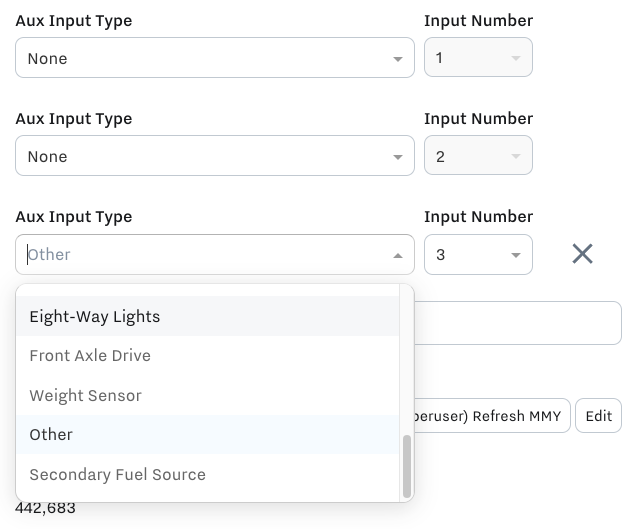

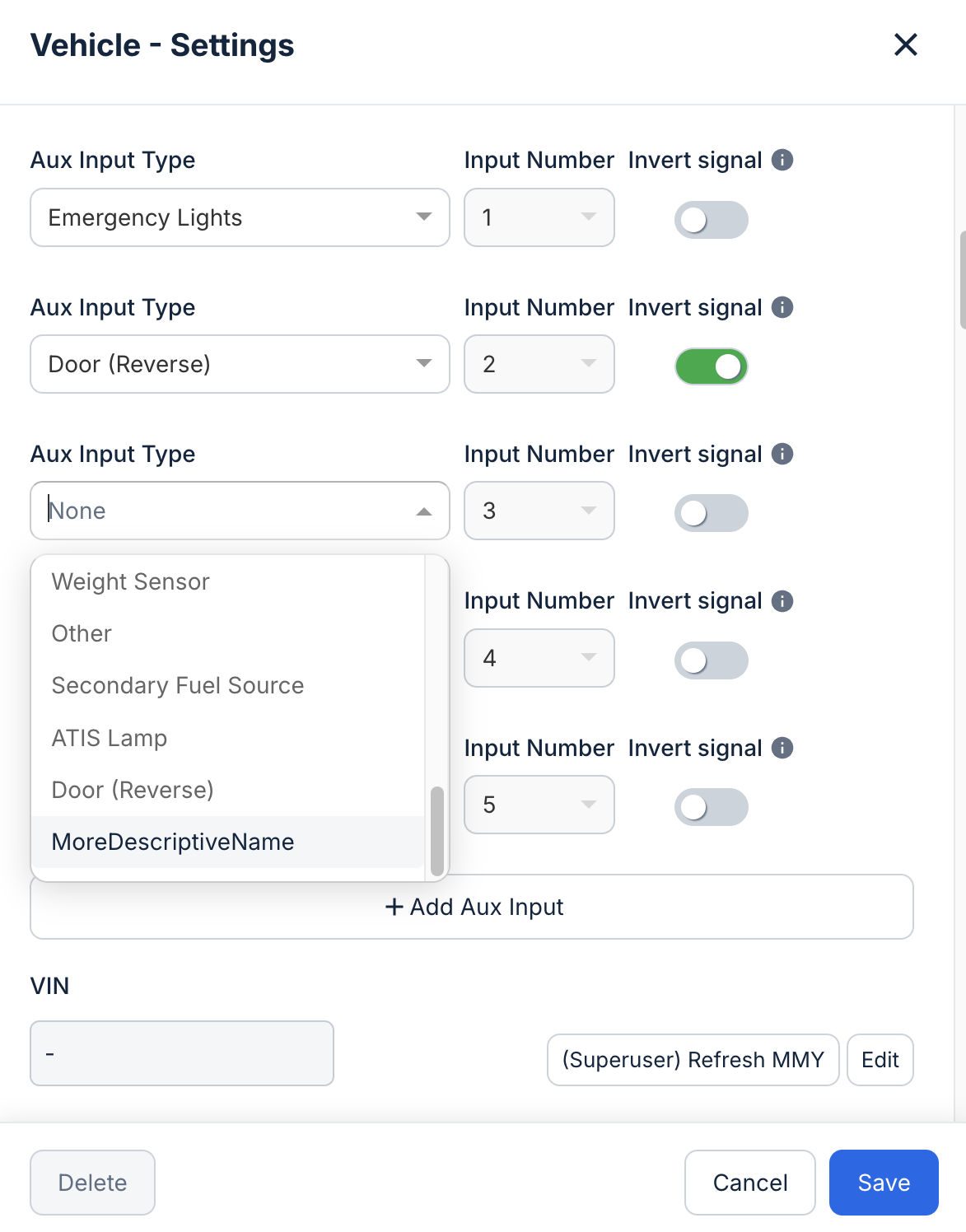

In the Aux Input list, click + Add Aux Input.
-
Select the name for any Aux Input Type in use.
For detailed information on input types and additional configuration instructions, including auxiliary engine and ATIS lamp configurations, see Configurable Auxiliary Input Types.
If the type doesn't fit into predefined categories, consider defining a custom AUX input type. Otherwise, you can choose Other.
-
Select the Input Number that corresponds to the input assignment.
-
Save the asset settings.
After you save the settings, you can view the status of the input in the
Diagnosticssection of asset details and on the asset coverage map.
After configuring an auxiliary input, the diagnostic details display in the Coverage Map of Auxiliary Input Activity and historical diagnostics. The following table summarizes the diagnostic data shown in the asset overview for each input type.
|
Input Type |
Dashboard Diagnostic |
|---|---|
|
ATIS Lamp |
|
|
|
|
Boom |
|
|
Door |
|
|
Eight Way Lights |
|
|
Emergency Alarm |
|
|
Emergency Lights |
|
|
Front Axle Driver |
|
|
Generator |
|
|
Other |
|
|
|
|
Plow |
|
|
|
|
Salter |
|
|
Secondary Fuel Source |
|
|
Stop Paddle |
|
|
Sweeper |
|
|
Weight Sensor |
|
If the existing AUX input types do not meet your needs, you can define a custom AUX input type, making it easier to track and analyze asset usage. This enables you to define input types beyond the default list, ensuring better alignment with your operational needs. These custom AUX inputs are reflected in dashboards, reports, and the API, improving data consistency and accessibility.
-
Select the Settings icon (
) at the bottom of your Fleet menu to view dashboard settings.
-
In Devices, click Configuration > Gateways.
-

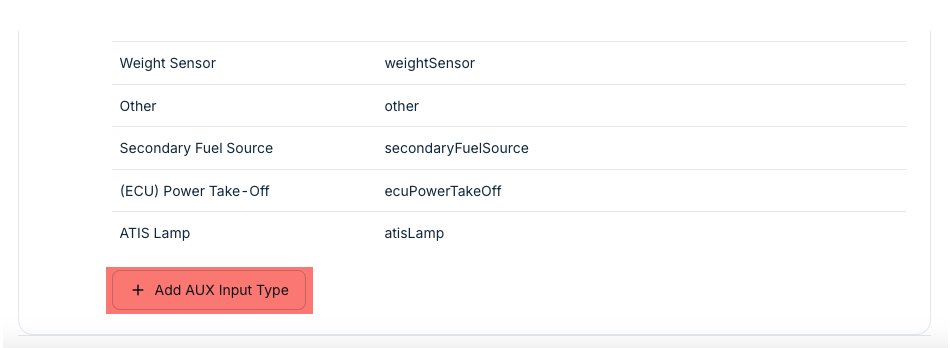

In the AUX inputs section, Add AUX Input Type.
-

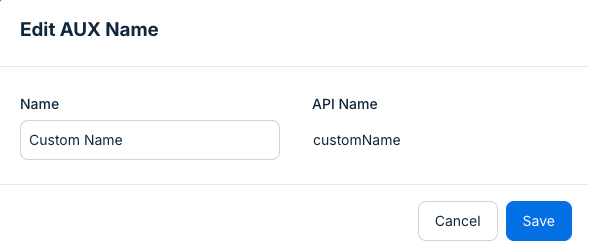

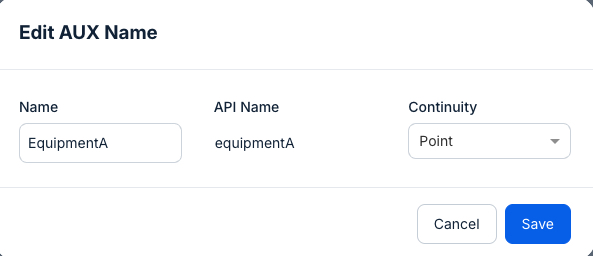

Define the AUX input label name.
Enter a unique name for the input.
-
Save and Apply the configuration.
You can now use the custom AUX input type on any gateway.
