Each Vehicle Gateway (VG) supports auxiliary inputs for connecting additional devices. Using the CBL-VG-CAUX cable, you can connect up to five auxiliary lines directly to the VG54 or VG55. This setup allows you to daisy chain multiple accessories, such as panic or privacy buttons, while still providing auxiliary inputs for unused lines. Additionally, if needed, you can also install the Auxiliary Input Hub (ACC-AUX) to connect up to eight additional inputs.
The CBL-VG-CAUX cable, compatible with the VG54 and VG55 models, utilizes auxiliary input lines 1 through 5. When using the auxiliary input hub (ACC-CAUX), these inputs are configured to correspond with input lines 6 through 13. The following table specifies the appropriate hardware for each auxiliary input line:
|
Wire Color |
Description |
||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
Yellow |
||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Orange |
||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Brown |
AUX Input 3 |
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
Green |
AUX Input 4 |
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
Purple |
AUX Input 5 |
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
Blue |
AUX Output 1 |
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
Red |
||||||||||||||||||||||||||||||||||||||||||||||||
|
|
Black |
Ground |
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
— |
Auxiliary Input Connector |
|||||||||||||||||||||||||||||||||||||||||||||||
|
[a] Do not use if Samsara Panic Button is installed. [b] Do not use if Samsara Privacy Button is installed. [c] The voltage source is the asset battery, so the voltage remains constant even when the vehicle engine is off. |
|||||||||||||||||||||||||||||||||||||||||||||||||
What You Will Need
|
Quantity |
Description |
|
|---|---|---|
|
|
1 |
Vehicle Gateway |
|
|
1 |
Accessory auxiliary cable |
|
|
8 |
Butt splice |
|
|
8 |
Short-narrow cable ties (cable bag) |
|
|
2 |
Long-narrow cable ties (VG box) |
|
|
1 |
Flush cutters (not provided) |
To connect auxiliary inputs to your VG:
-

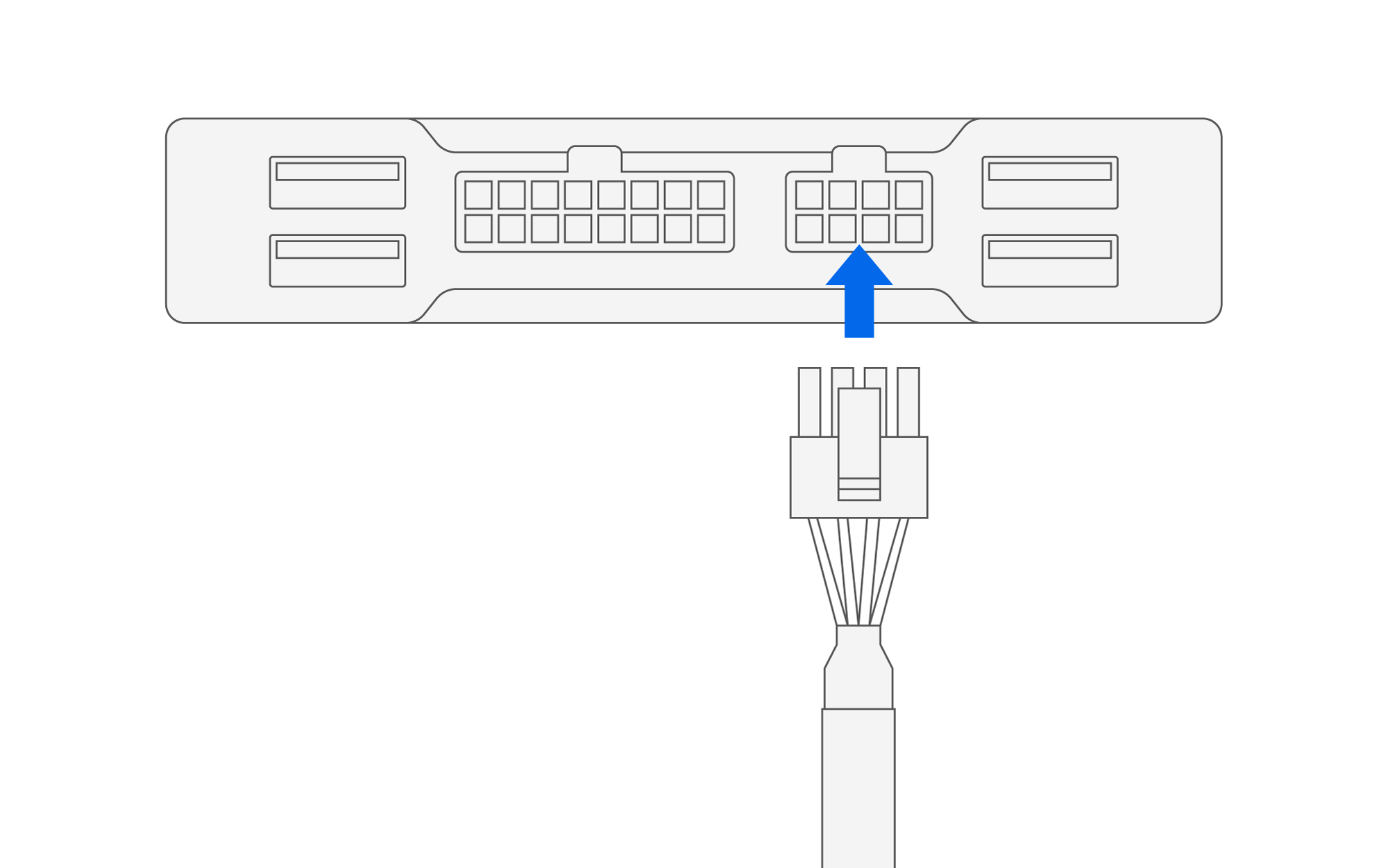

Connect the Samsara cable to the 8-pin port on the VG.
-

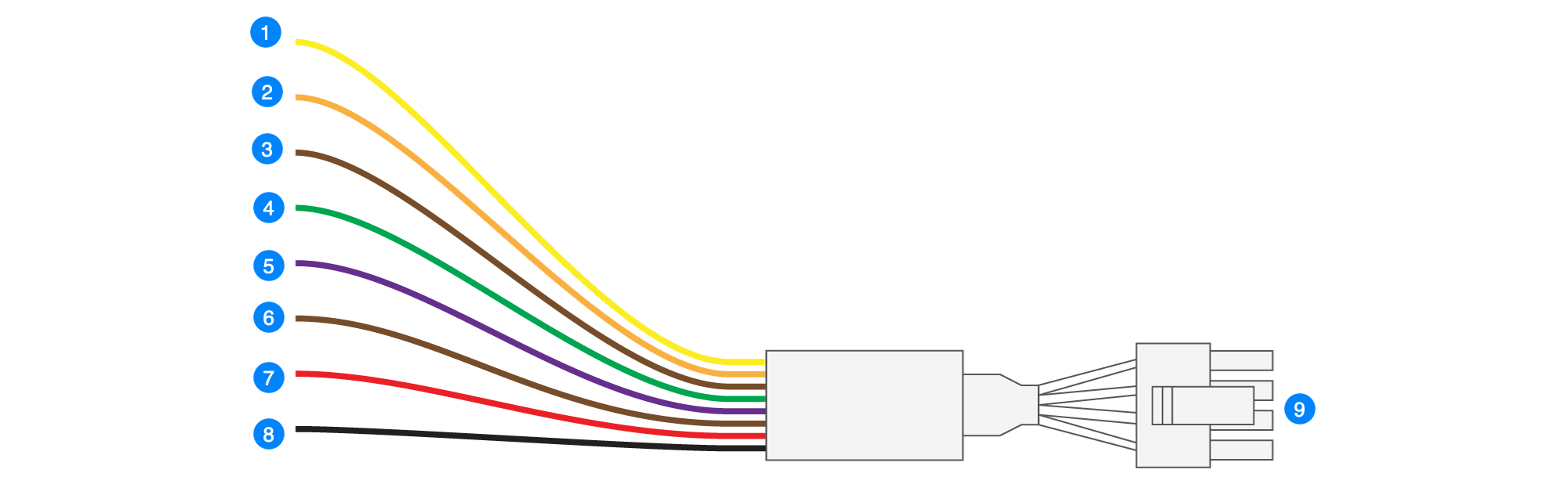

Identify the correct wire color for connecting your equipment to the auxiliary input.
For more information, see Input Cable Mapping.
-

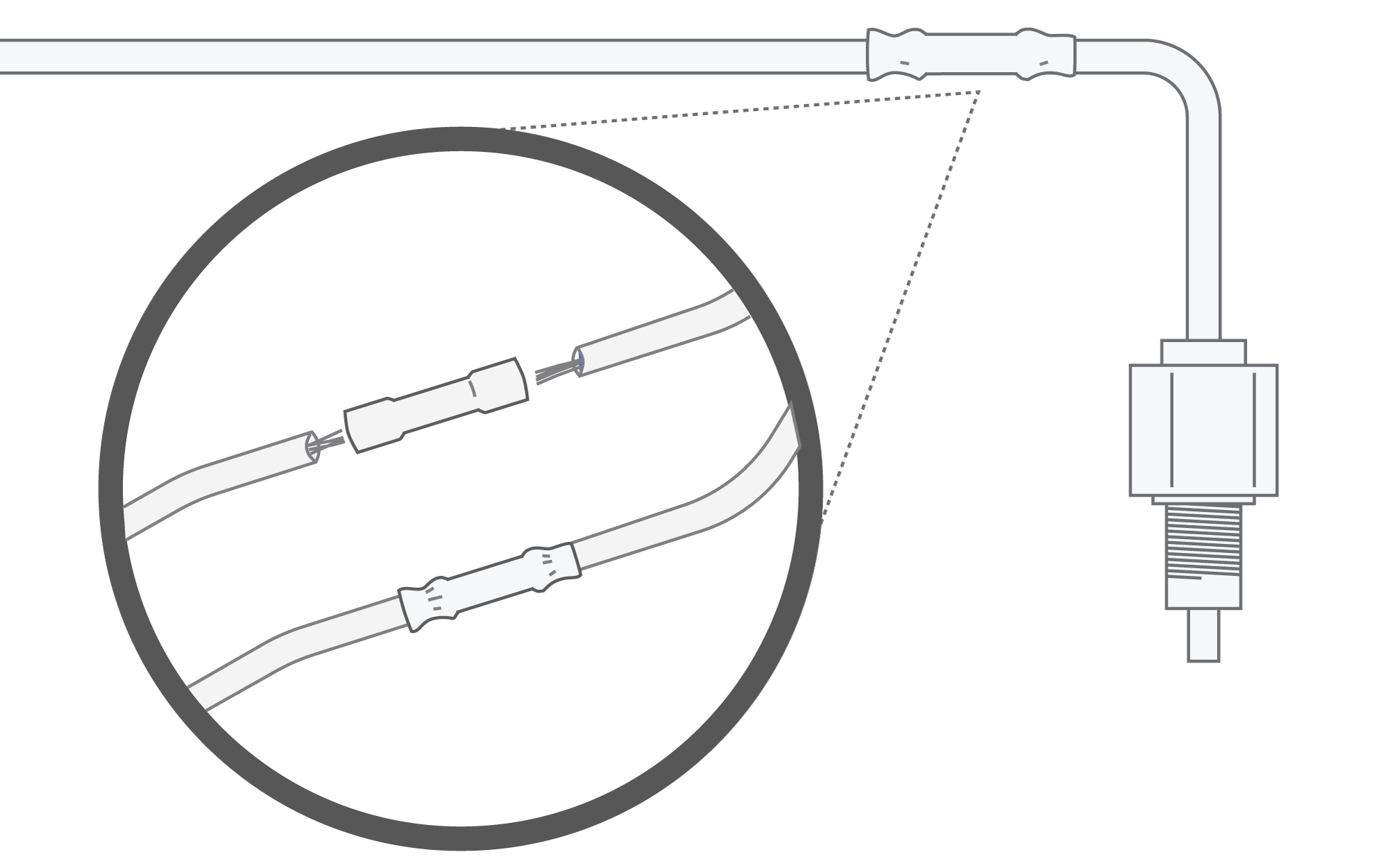

Use a butt splice to connect AUX wires to sensor inputs that you want to monitor.
Use 20-gauge copper wire (recommended).
-
If additional auxiliary inputs are needed, wire the inputs to the Auxiliary Input Hub (ACC-AUX) and connect the hub to the USB port on the VG.
-
Verify the voltage on the input using a voltmeter.
When the voltage surpasses 5V, the VG considers the device On. A voltage under 3.3V is considered Off. If the voltage remains off, recheck the pin assignments and that the wires are firmly connected.
-
Complete the setup from the Samsara dashboard. See Configure an Auxiliary Input.
After you install your auxiliary devices, the information is available nearly instantly in the Samsara dashboard. View the Equipment Report and Fleet Overview to see how and where your fleet uses the equipment.
This installation guide contains typical information specific to products manufactured at the time of its publication. The contents of this guide do not constitute a warranty and are for reference only. Consult applicable local laws and ordinances to determine any installation restrictions. It is the installer’s responsibility to comply with all applicable laws and ordinances when installing this hardware.
Do not attempt to repair this product, use any third party replacement parts with this product, or otherwise modify this product except in accordance with product manuals or as otherwise instructed by Samsara. Failure to do so may cause property damage, lead to physical injury, or void your product warranty.
Any installation not in accordance with the instructions in the installation guide or otherwise in the Documentation or use of this product other than as described by the relevant IP rating or recommended operating instructions may result in unexpected downtime, system failure, physical injury, or property damage, including water damage. Failure to follow these directions could result in serious injury or death.
This hardware and any associated software may not be compatible with third party products and/or services and may interfere with the operations of or void warranties for such third party products and/or services.
Do not install hardware while the vehicle is unsecured or while the vehicle is turned on unless instructed to turn on the vehicle by the installation guide. Do not install or adjust hardware while driving or operating the vehicle. Do not install this hardware in a location that could interfere with the driver’s visibility or operation of vehicle controls or near airbag panels or within the working range of an airbag.
Do not install this hardware on or near flammable or otherwise hazardous materials. This hardware may burst if placed near flammable or other hazardous materials, creating a risk of fire, burn, shock, or other serious injury. This product includes capacitors, which may present a potential fire, explosion, electric shock, or burn hazard. Do not touch any capacitors within this hardware.
Please always pay attention to your surroundings and drive safely, comply with all traffic laws, and observe the road and driving conditions at all times. Do not rely on the product to alert the driver of safety hazards or to prevent collisions. The hardware and associated software may not work as intended depending on road conditions, other vehicles, weather, and other factors.
Keep this hardware between -40°C and 85°C (-40°F and 185°F). Failure to keep this hardware in the specified temperature range may result in safety risks.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
This device complies with ISED Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions:
(1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.
|
|
