The Trip Speeding Summary provides a trip-level view of all speeding violations recorded during a single trip. This summary is designed to help identify trends such as duration, frequency, and severity of speeding behavior across a specific route.
The summary is accessible from both the Safety Inbox and Trip History:
-
From the Safety Inbox: Selecting a row in Trip view mode, then opening Trip Speeding Summary from the event details.
-

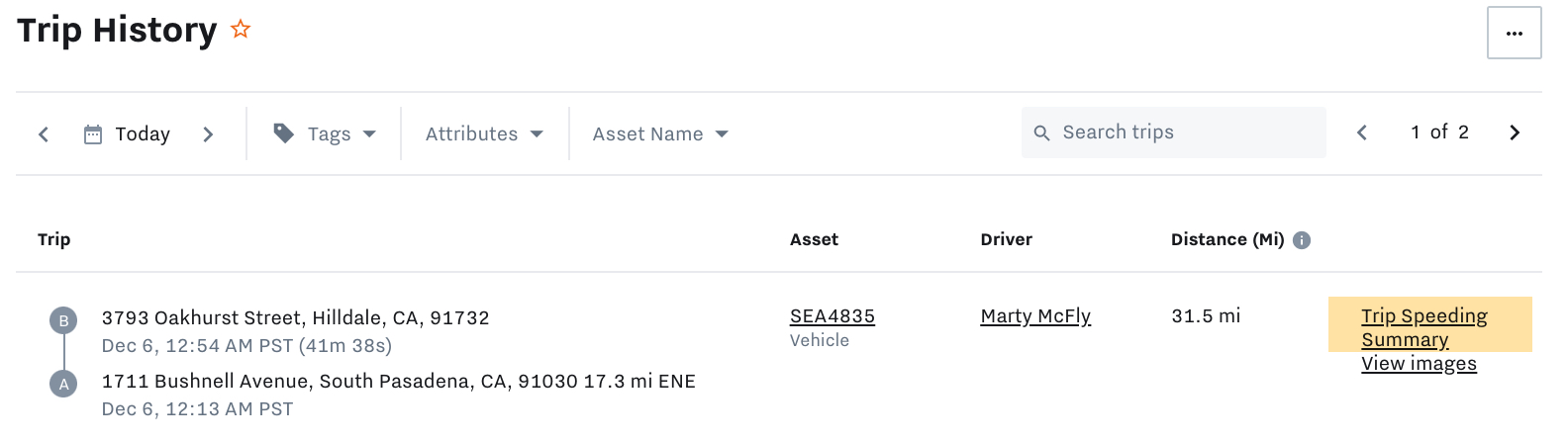

From Trip History: Navigating to Reports > Activity > Trip History, locating the trip, and selecting Trip Speeding Summary from the trip details.
The Trip Speeding Summary includes the following information to support trip-level trend analysis:
-

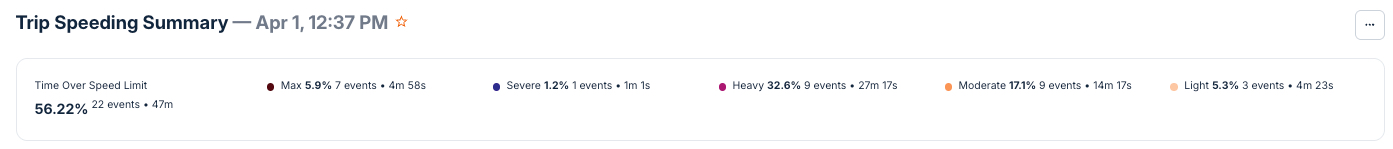

Aggregate trip data: Shows total time spent speeding, number of speeding events, and a breakdown by severity type (Max, Severe, Heavy, Moderate, or Light).
-

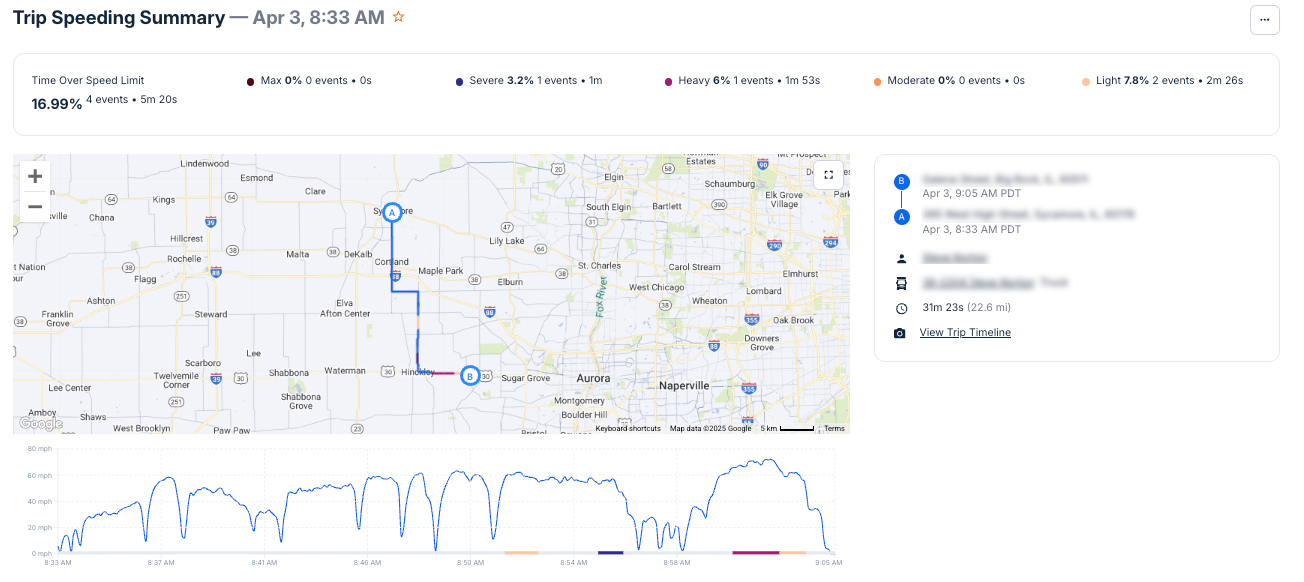

Trip map and speed graph: Displays the full trip route and speed timeline, with markers for each speeding event. View vehicle speed, posted speed limit, and the amount over the limit by hovering over a graph point. Zoom and slider tools allow for closer inspection of specific time ranges.
-

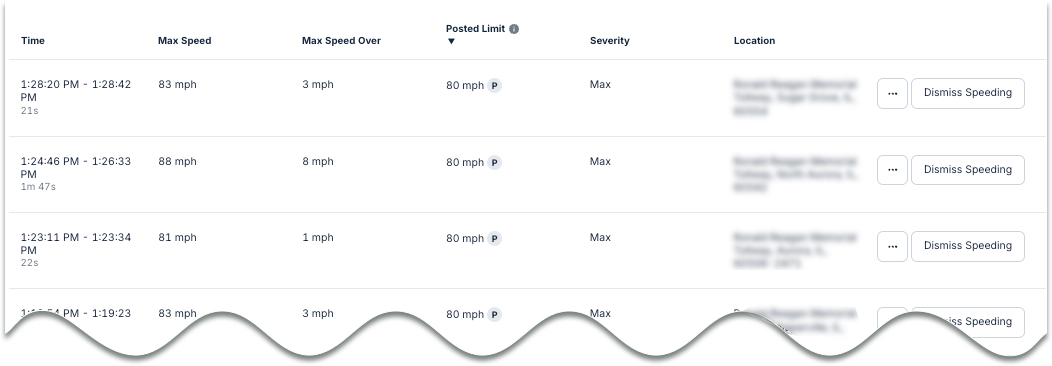

Trip events: Lists each speeding violation in chronological order.
