For proper Dash Cam Calibration for AI Event Detection and to ensure there are no visible obstructions, correct positioning is crucial. After you Install a Dash Cam or install any third-party cameras and review the recommended mounting positions, you should test the dash cams for proper function and positioning.
To verify the camera positioning, follow these steps to take a picture from the Samsara dashboard:
-
Ensure the Vehicle Gateway (VG) is connected to a vehicle with power and the dash cam is on.
-
There are two ways to navigate to the gateway settings from your Samsara dashboard:
-
From Overview (
), select the asset from the asset list.
-
Select the Settings icon (
) at the bottom of your Samsara dashboard menu to view dashboard settings. From Devices, select Gateways and locate the VG from the list.
-
-
Select the more actions ( ••• ) menu and choose Settings.
-
Locate Check Dash Cam Installation and click Take Picture.
The dashboard displays one or more dash cam images. If the dash cam is not on, the dashboard displays a
Gateway could not be reachederror message. -
Adjust the dash cam position and repeat steps as needed.
-
(Optional) Proceed to Confirm an Inward-Facing Dash Cam View.
Use the following workflow to position the inward-facing dash cam:
-

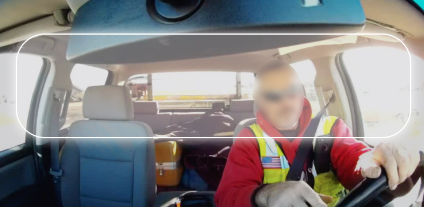

Follow the above workflow to Take Picture and download the inward-facing still.
-
Download the image below which best corresponds to the location of your driver.

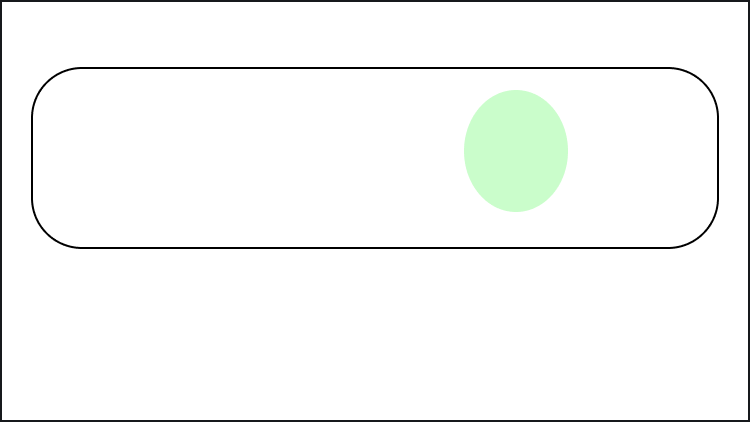

Driver on left side of vehicle:
Driver on right side of vehicle:
-
Overlay the still on the diagram to align the edges of the photo with the outer edges of the rectangular template (a presentation software may be useful for this step).
-
Adjust the dash cam position and repeat the above steps until the face is within the green oval.
