ACC-VG-ACCR for VG54 and VG55
The Duckbill Contactless CAN Reader is a non-invasive hardware device that captures vehicle diagnostic data by passively listening to the Controller Area Network (CAN) bus. Instead of cutting, splicing, or plugging into connectors, the device clips securely over the CAN High and CAN Low twisted pair wires to read signals safely and reliably. This approach enables faster installations, avoids risks to vehicle warranties, and provides flexibility in accessing data from additional CAN networks.
This guide walks through the high-level steps for installing a contactless CAN Reader on supported vehicle types. It is designed to assist installers in finding and accessing the most suitable CAN wiring harnesses using non-invasive, warranty-safe contactless methods.
|

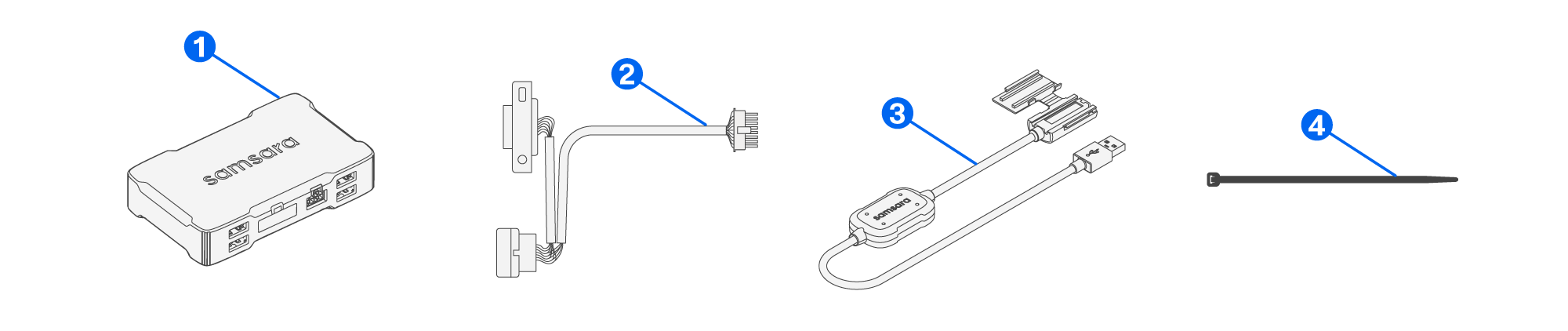

Image |
Quantity |
Description |
|---|---|---|
|
|
1 |
Vehicle Gateway (VG54 or VG55) |
|
|
1 |
VG Cable |
|
|
1 |
Samsara Contactless CAN Device |
|
|
As needed |

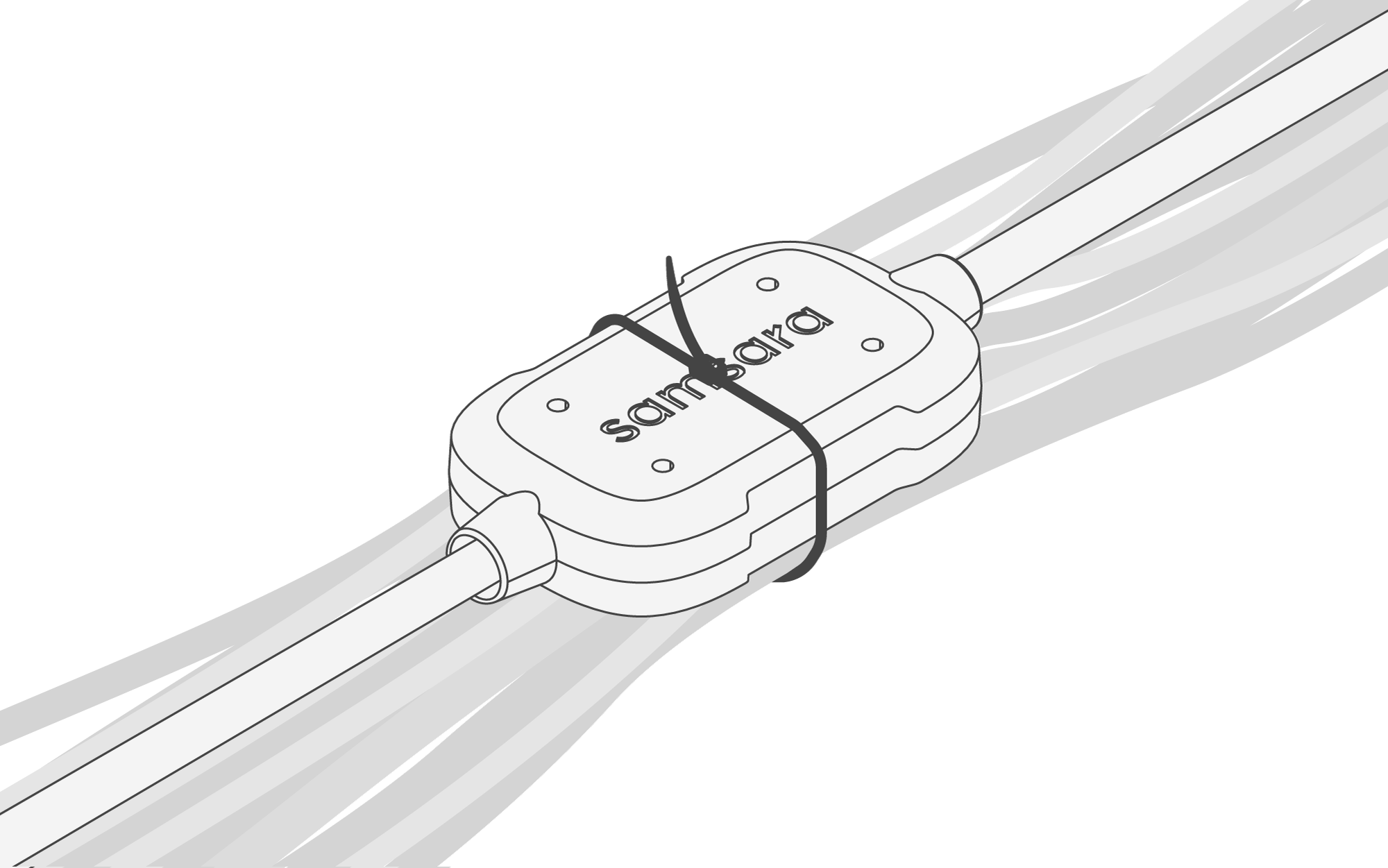

Zip ties |
|
Additional tools, not provided |
||
|
1 |
Trim removal tool |
|
|
1 |
Flashlight |
|
|
1 |
Multimeter (optional, for CAN wire verification) |
|
|
1 |
Smartphone with camera (for documentation) |
|
-
Install the vehicle gateway.
Use the Cable Selection Tool to identify the best cable to power the Vehicle Gateway.
Diagnostic cables are preferred, but power-only cables are acceptable if recommended for the make, model, and year (MMY). Verify the installation by confirming the Vehicle Gateway is associated with the correct organization ID in the Samsara dashboard.
-
Prepare the vehicle.
Turn off the ignition and remove the key. Allow the CAN bus to enter sleep mode (typically 5–10 minutes) or follow the manufacturer’s power-down procedure.
-
Locate a suitable CAN access point.
Identify an accessible wiring harness where the CAN bus can be read non-invasively. Common locations include under the dashboard, behind the instrument cluster, or at the body control module (BCM). Use trim removal tools to expose wiring as needed. For more information, see Example Access Points for CAN Bus by Vehicle.
For first-time installations, test multiple access points if required to ensure clean, stable signal capture.
-

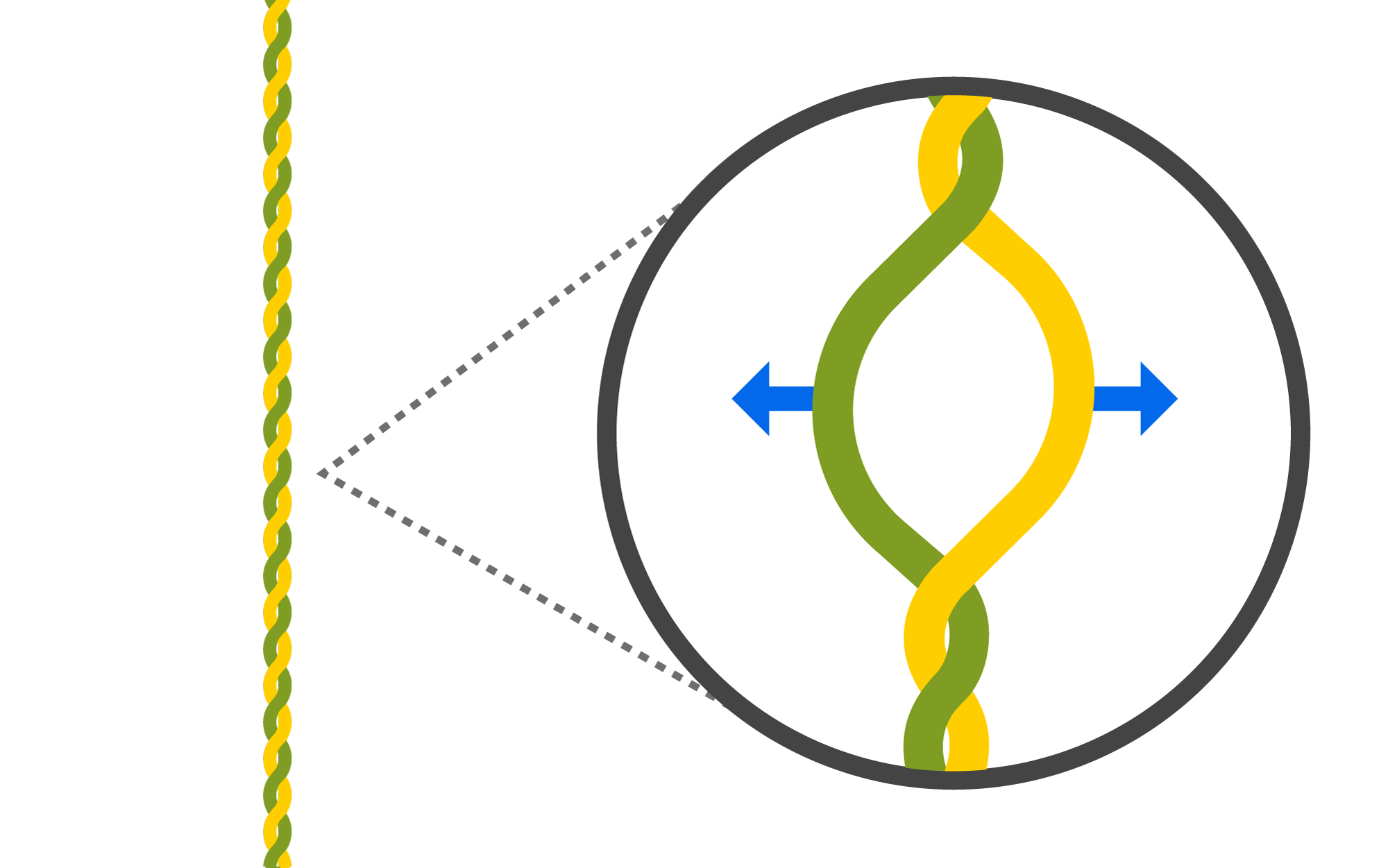

Identify CAN High and CAN low wires.
Locate the twisted pair of wires representing CAN High and CAN Low. These typically feature complementary color codes (for example, white-blue, yellow-green, or orange-brown).
Verify signal levels using a multimeter if necessary: 0V idle, ~2.5V active, with approximately 1V differential between the pair.
Note
Color codes may vary between OEMs, especially for electric or specialty vehicles. Refer to the OEM’s service manual for accurate wire identification.
-

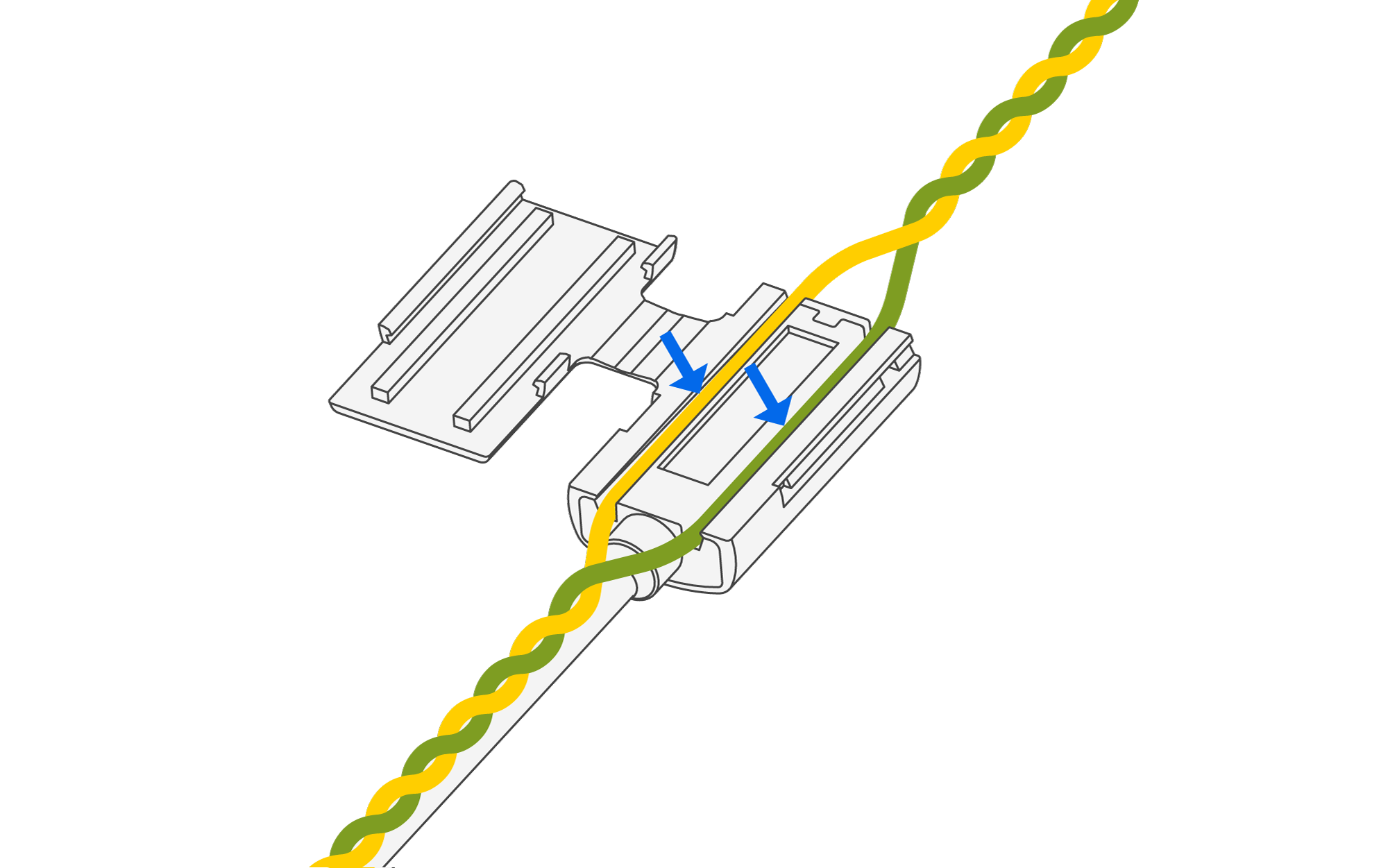

Install the contactless CAN reader.

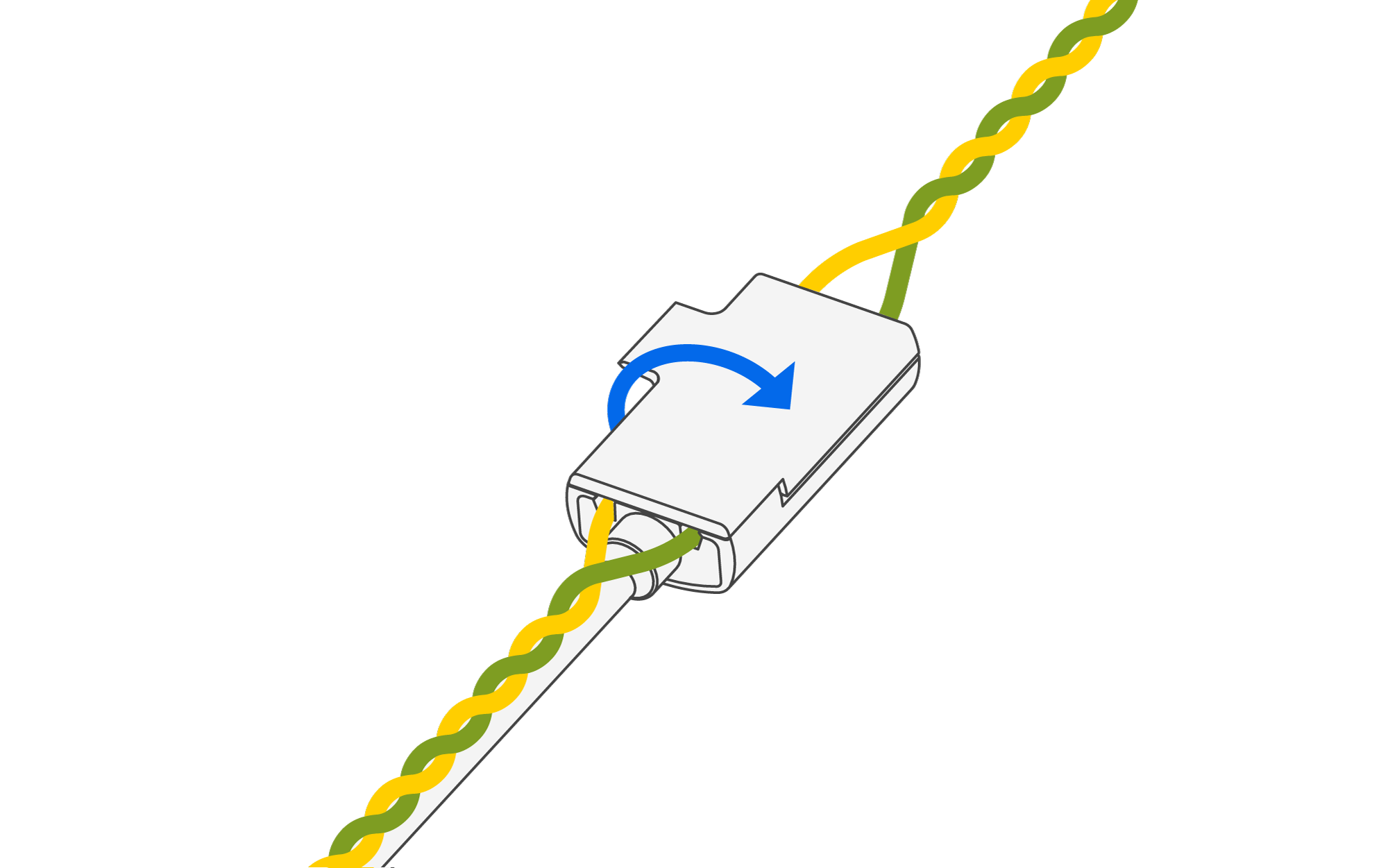

Clip the reader securely over the identified twisted pair. Ensure firm contact and stable alignment of the reader over the wire insulation.
-
Validate the installation.
Finding a pair of twisted CAN wires does not always guarantee successful data capture. Validate signal quality before finalizing installation.
-
Power on the vehicle and verify that the Vehicle Gateway LED turns green, indicating data flow.
-
Check the Samsara dashboard to confirm diagnostic signals are populating as expected.
-
-
Finalize the installation.
-
Take a clear photo of the CAN tap location for documentation.
-
Reinstall any removed trim or panels, and log installation details in the Samsara dashboard or internal tracker.
-
This installation guide contains typical information specific to products manufactured at the time of its publication. The contents of this guide do not constitute a warranty and are for reference only. Consult applicable local laws and ordinances to determine any installation restrictions. It is the installer’s responsibility to comply with all applicable laws and ordinances and rights to privacy in your jurisdiction when installing this hardware.
Do not attempt to repair this product, use any third party replacement parts with this product, or open or otherwise modify this product, except in accordance with product manuals or as otherwise instructed by Samsara. Failure to do so may cause property damage, lead to physical injury, or void your product warranty.
Any installation not in accordance with the instructions in the installation guide or otherwise in the Documentation or use of this product other than as described by the relevant IP rating or recommended operating conditions may result in unexpected downtime, system failure, physical injury or property damage, including water damage. Failure to follow these directions could result in serious injury or death.
This hardware and any associated software may not be compatible with third party products and/or services and may interfere with the operations of or void warranties for such third party products and/or services.
Do not install or adjust hardware while driving or operating the vehicle. Do not install this hardware in a location that could interfere with the driver’s visibility, operation of vehicle controls, or on or near airbag panels or within the working range of an airbag.
Do not install this hardware on or near flammable or otherwise hazardous materials. This hardware may burst if placed near flammable or other hazardous materials, creating a risk of fire, burn, shock, or other serious injury. This product includes capacitors, which may present a potential fire, explosion, electric shock, or burn hazard. Do not touch any capacitors within this hardware.
Please always pay attention to your surroundings and drive safely, comply with all traffic laws, and observe the road and driving conditions at all times. Do not rely on the product to alert the driver of safety hazards or to prevent collisions. The hardware and associated software may not work as intended depending on road conditions, other vehicles, weather, and other factors.
|
|
This symbol on the product(s) and / or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery, and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. |
