Note
This integration is in beta to fleets that operate in the US, Canada, and Mexico only. To participate, reach out to your Samsara account representative.
Hendrickson is a market leader in trailer suspension and inflation systems. TireMaax is Hendrickson’s family of automatic tire inflation systems (ATIS) for trailers. These systems ensure tires stay at optimal pressure, which reduce wear, improve safety, and cut fuel costs.
You can integrate Samsara with Hendrickson to ensure tire health data flows seamlessly into the Samsara platform.
This integration provides the following features:
- TireMaax TPMS data (pressure readings, leak detection, threshold alerts) transmitted into the Samsara gateway
- Tire pressure insights alongside existing Samsara trailer data (location, ABS, utilization, maintenance, etc.)
- Enhanced visibility into trailer tire health beyond what ATIS alone provides
To see a table of what Hendrickson TPMS sensors are supported by Samsara, see Hendrickson Products Supported by Samsara .
- Hendrickson: TireMaax PRO (Pressure Relieving Option) or TireMaax PRO-LB (Load Based)
-
Samsara:
- Trailer subscription
- AG52 or AG53
Hendrickson built the integration and will assist with deployments as needed. Follow the steps below to get started. If there are any issues, please contact Hendrickson Support.
- Reach out to your Samsara representative to grant you access to this integration.
-

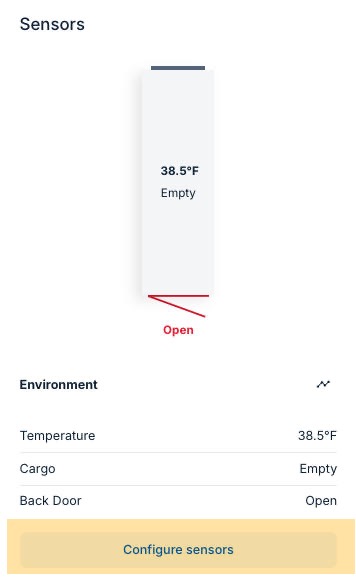

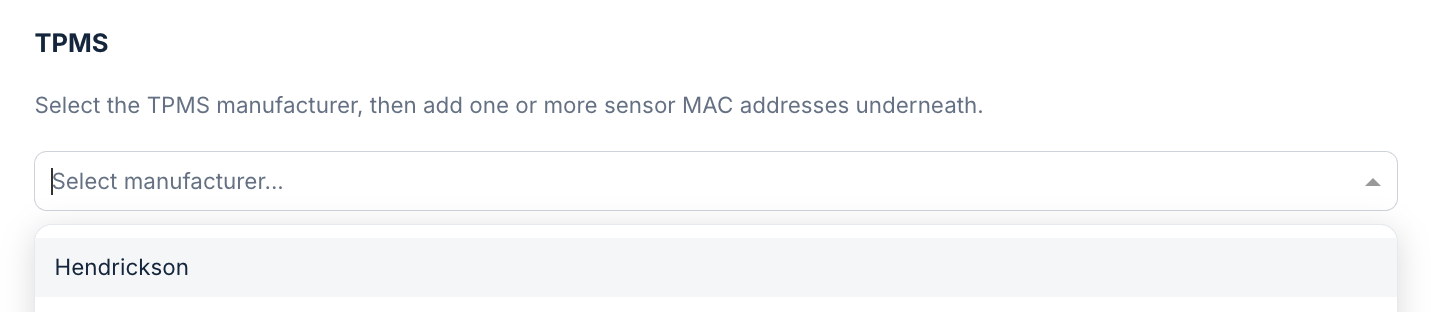

After you have access to the Hendrickson integration, add Hendrickson sensor MAC addresses to your trailer:
-

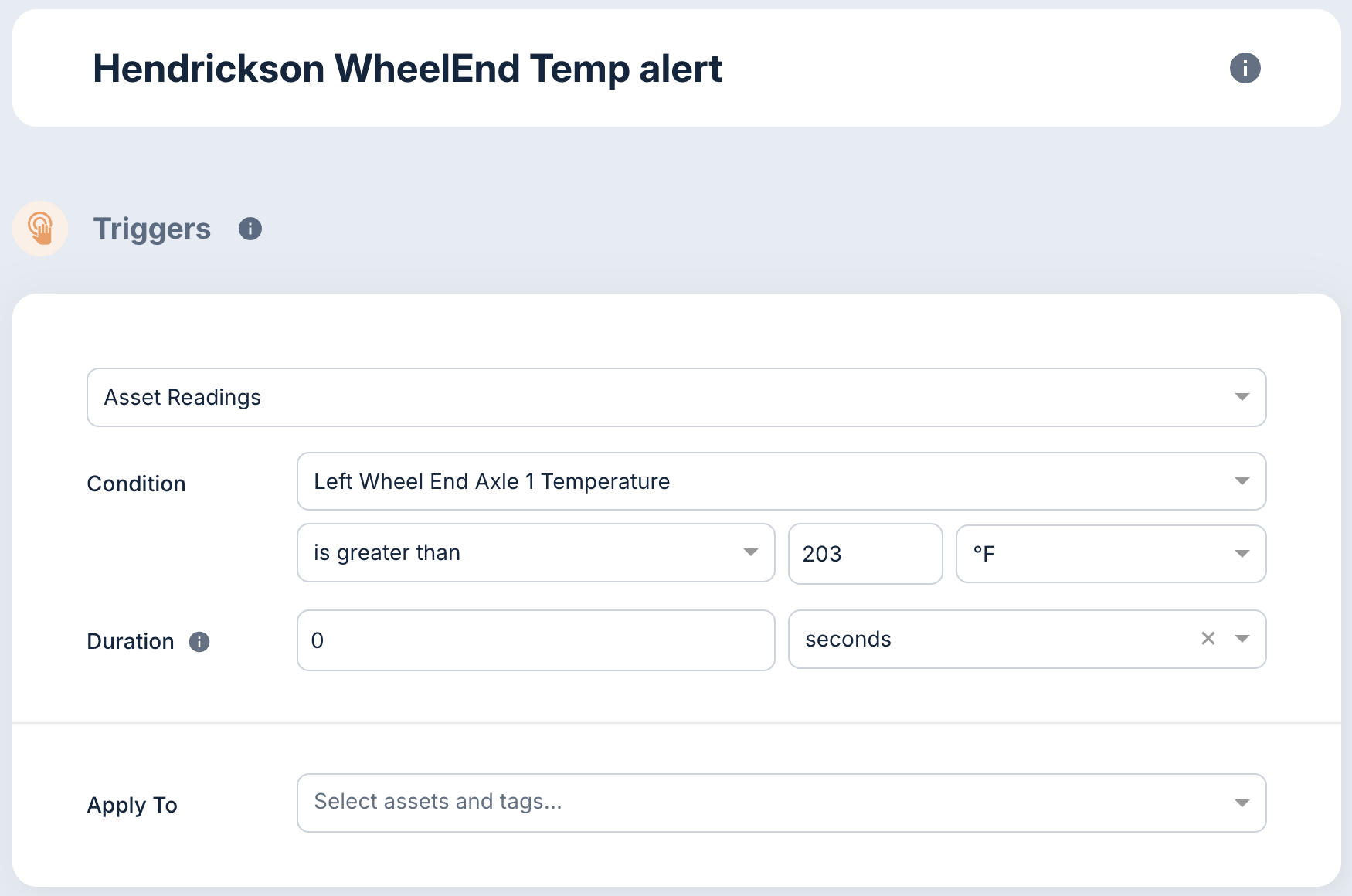

Configure relevant alerts with an Asset Readings alert trigger:
-
Tire pressure threshold
-
WheelEnd axle temperature
-
- Monitor and view tire pressure status in the Tire Condition Report (Maintenance (
) > Tire Condition).
-

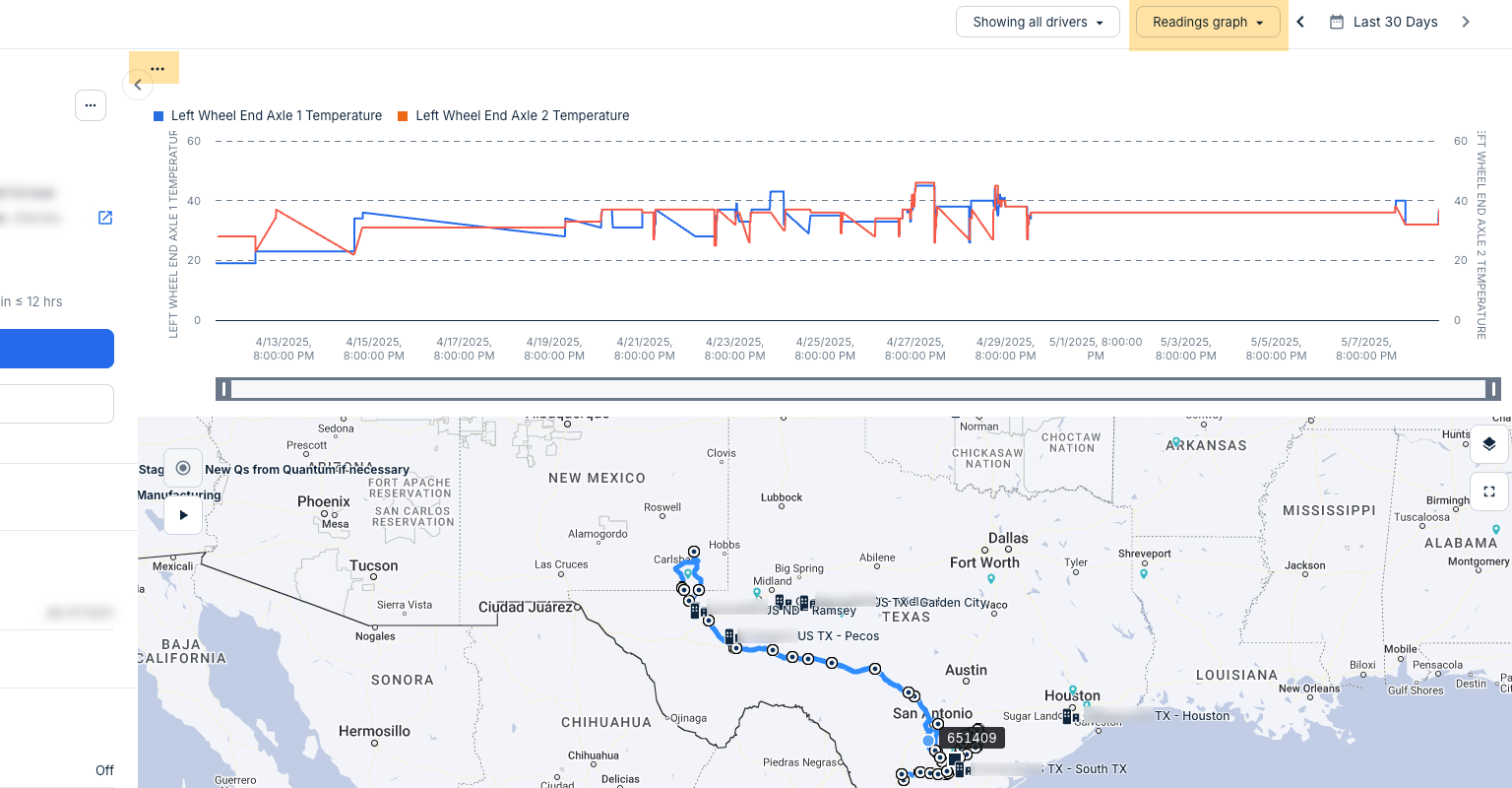

Monitor and view WheelEnd temperature in Assets Reading graph within Overview (
) > Assets:
The following table displays which Hendrickson products are supported by Samsara through integrations or Trailer ATIS Visibility and Alerts:
| TPMS System Model | ATIS monitoring compatible? | TPMS integration compatible? |
|---|---|---|
| TireMaax CP (Constant Pressure) | Yes | No TPMS sensors |
| TireMaax Pro (Pressure Relieving Option) | Yes | Yes, supports hubcap TPMS sensor integration with Samsara |
| TireMaax PRO-LB (Load Based) | Yes | Yes, supports hubcap TPMS sensor integration with Samsara |
For issues related to the integration, contact Hendrickson Support:
e-mail: mgauer@hendrickson-intl.com
