You can connect a SEON Dome Camera to the Samsara AI Multicam Hub using a SEON Adapter Cable. This plug-and-play adapter enables fast installation and seamless integration—ideal for fleet retrofits that require minimal downtime.
Note
The SEON adapter cable is included; All other parts must be purchased separately.
|

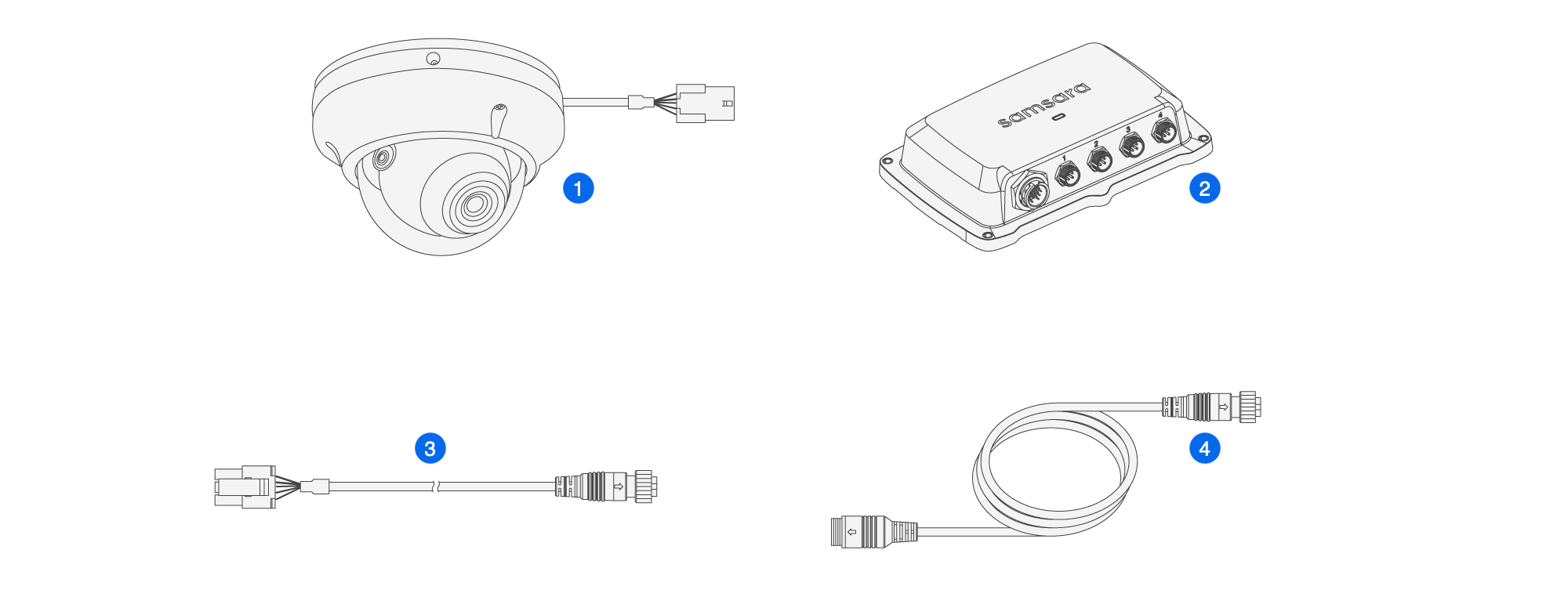

Quantity |
Description |
|
|---|---|---|
|
|
1 |
SEON camera |
|
|
1 |
|
|
|
1 (Included) |
SEON adapter cable (CBL-MC-SF0) |
|
|
1 |
GX-12 extender cable (5m, 10m, or 15m) |
-

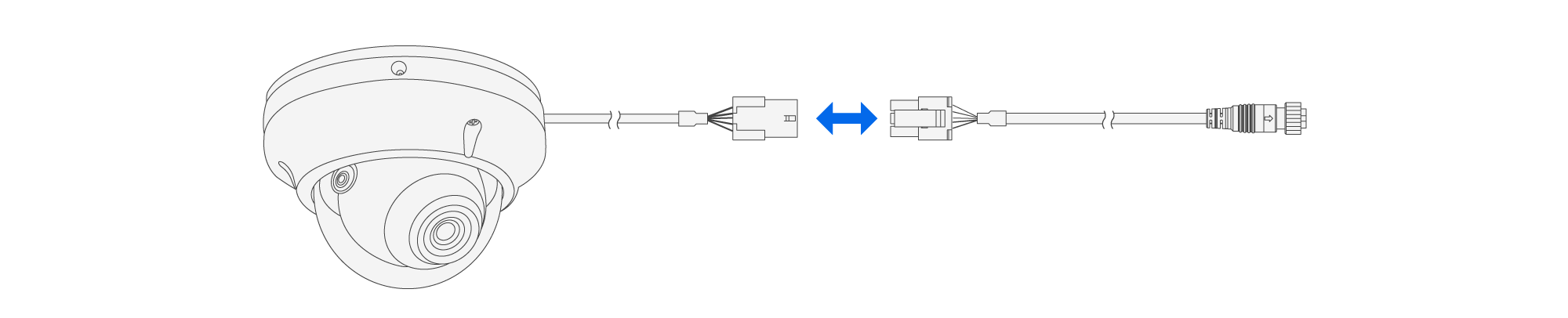

Plug the SEON adapter cable (CBL-MC-SF0) into the SEON camera until you hear a click.
The connection is secure when you hear the click.
-

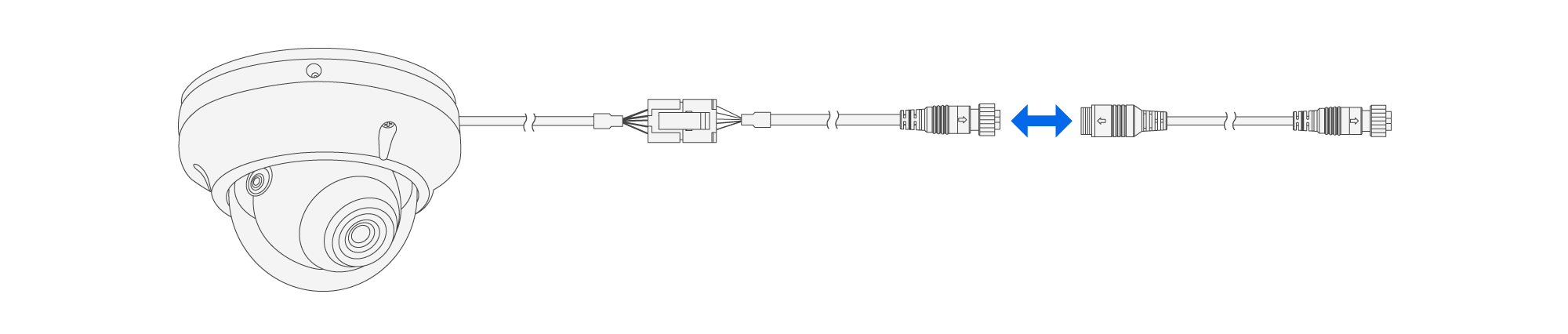

Attach one end of the GX-12 extender cable to the SEON adapter cable.
-

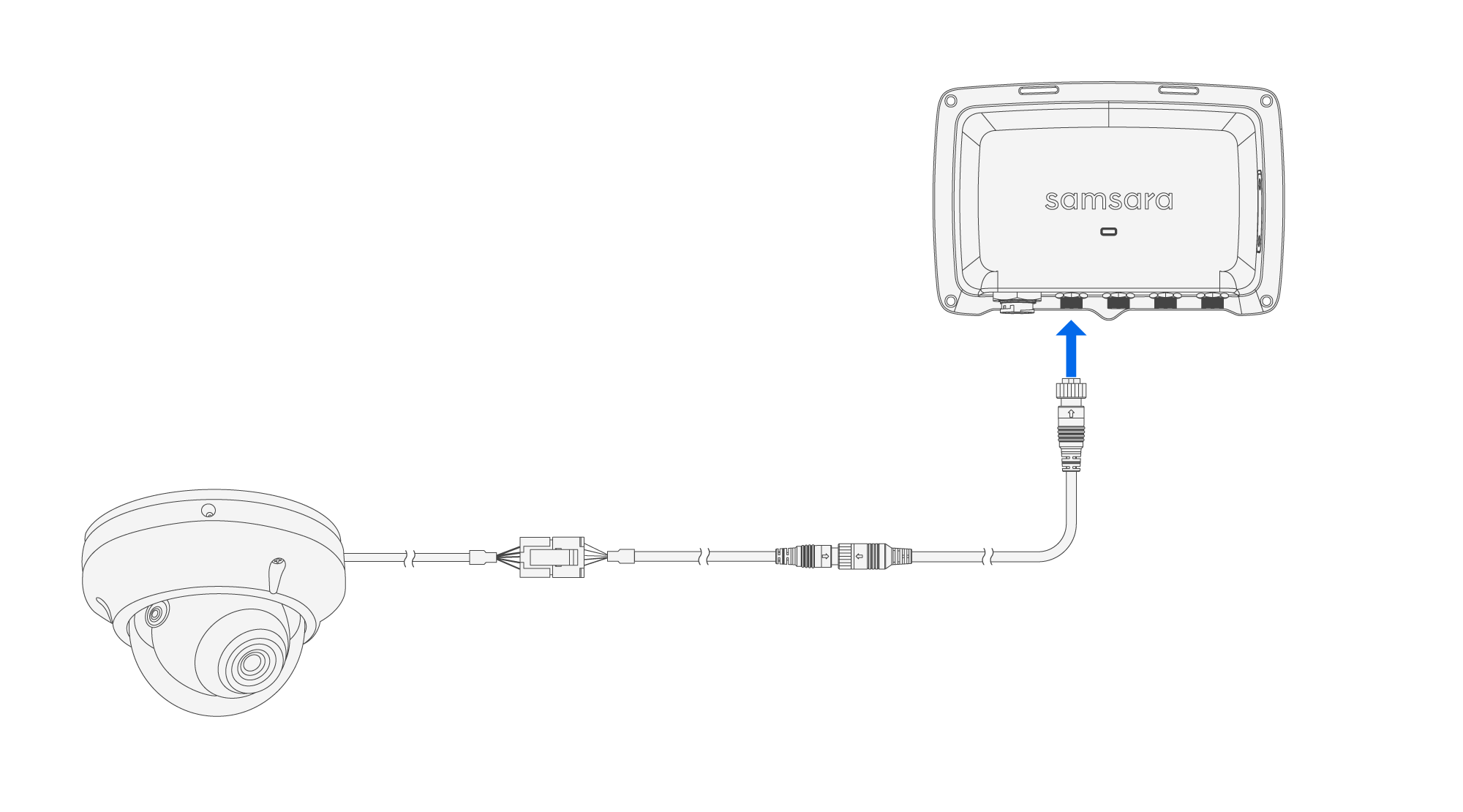

Route the extender cable to the location of the AI Multicam Hub.
-
Insert the GX-12 female connector into any available GX-12 port on the AI Multicam Hub and rotate the nut clockwise to lock the connector in place.
This installation guide contains typical information specific to products manufactured at the time of its publication. The contents of this guide do not constitute a warranty and are for reference only. Do not attempt to repair this product, use any third party replacement parts with this product, or otherwise modify this product except in accordance with product manuals or as otherwise instructed by Samsara. Failure to do so may cause property damage, lead to physical injury, or void your product warranty.
Any installation not in accordance with the instructions in the installation guide or otherwise in the Documentation may result in physical injury or property damage.
Do not use this product other than as described by the relevant IP rating or recommended operating conditions. Damage or injury may result.
This hardware and any associated software may not be compatible with third party products and/or services. This hardware and associated software may interact, interface, or integrate with third party products and/or services and may not be validated or supported by such third parties and may interfere with the operations of or void warranties for such third party products and/or services.
