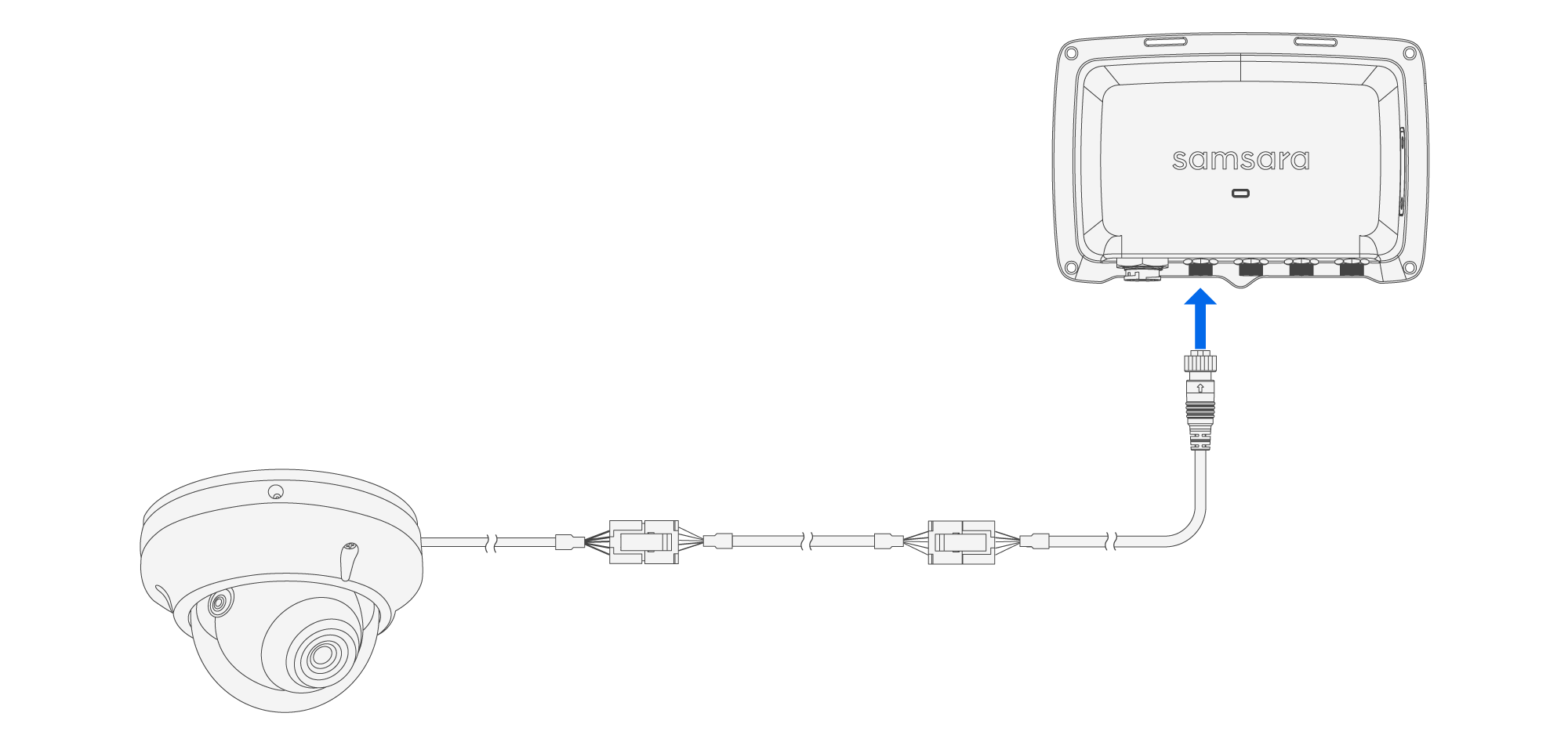

You can connect an existing SEON Dome Camera cable—previously connected to a DVR—to the Samsara AI Multicam Hub using a SEON Adapter Cable. This plug-and-play adapter is ideal for retrofits where reusing installed camera wiring helps minimize downtime.
Note
The SEON adapter cable is included; All other parts must be purchased separately.
|

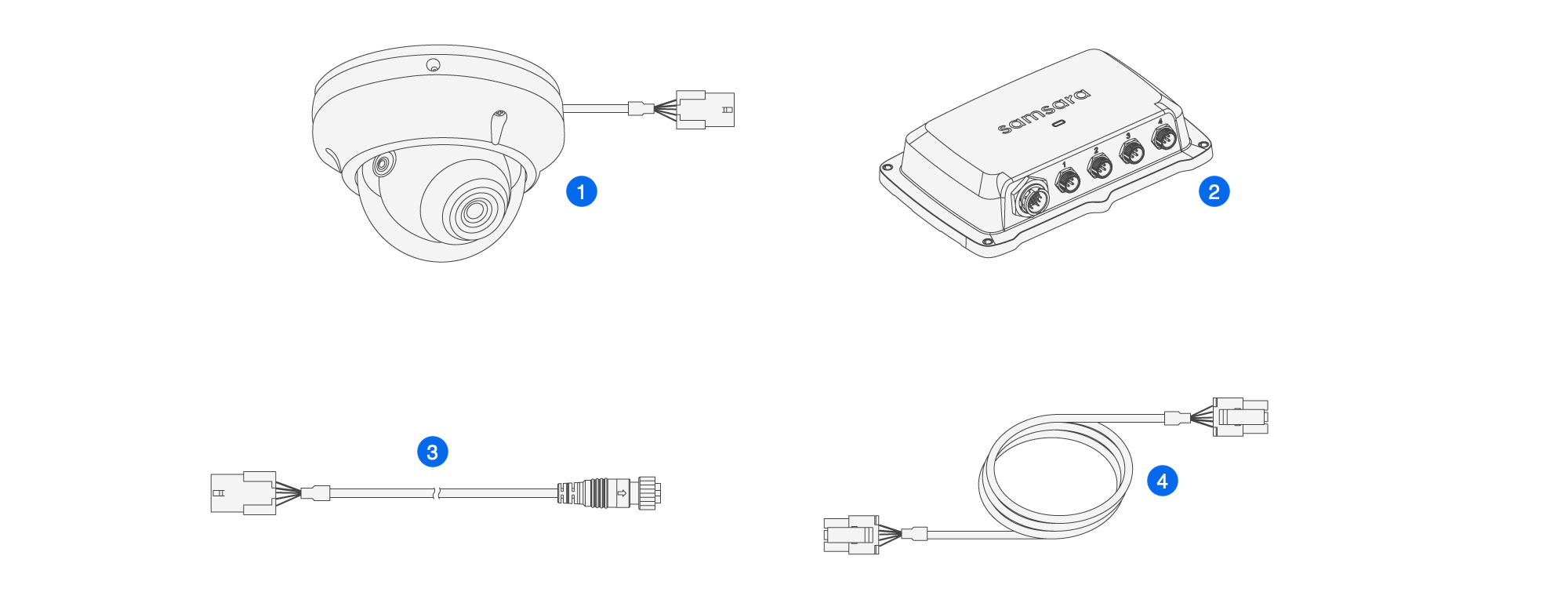

Quantity |
Description |
|
|---|---|---|
|
|
1 |
SEON Dome Camera |
|
|
1 |
|
|
|
1 (Included) |
SEON adapter cable (CBL-MC-SM0) |
|
|
1 |
Existing SEON cable (previously connected to DVR in brownfield) |
-
Disconnect the SEON cable which was previously connected to the DVR.
-
Connect the SEON cable to the SEON adapter cable (CBL-MC-SM0) until you hear a click.
The connection is secure when you hear the click.
-
Insert the GX-12 female connector into any available GX-12 port on the AI Multicam Hub and rotate the nut clockwise to lock the connector in place.
This installation guide contains typical information specific to products manufactured at the time of its publication. The contents of this guide do not constitute a warranty and are for reference only. Do not attempt to repair this product, use any third party replacement parts with this product, or otherwise modify this product except in accordance with product manuals or as otherwise instructed by Samsara. Failure to do so may cause property damage, lead to physical injury, or void your product warranty.
Any installation not in accordance with the instructions in the installation guide or otherwise in the Documentation may result in physical injury or property damage.
Do not use this product other than as described by the relevant IP rating or recommended operating conditions. Damage or injury may result.
This hardware and any associated software may not be compatible with third party products and/or services. This hardware and associated software may interact, interface, or integrate with third party products and/or services and may not be validated or supported by such third parties and may interfere with the operations of or void warranties for such third party products and/or services.
