Unpowered Asset Gateways, such as the AG45, AG46, and AG51, are wallet-sized trackers ideal for monitoring assets like intermodal containers, construction equipment, dumpsters, light towers, and other mobile assets. The AG features customizable GPS check-ins, a replaceable lithium battery that lasts between 1-5 years depending on the model, and a waterproof and ruggedized enclosure. The AG enables increased asset utilization, theft recovery, and optimized pool inventory management.
|
|
|
To install an unpowered Asset Gateway (AG), follow the detailed workflow below or review the PDF install guide:
-
AG45/AG46 Install Guide (PDF)
-
AG51 Install Guide (PDF)
Before you begin activation and installation, ensure that the device is within a geographical area with cellular coverage.
Perform the setup and installation instructions for your unpowered AG model:

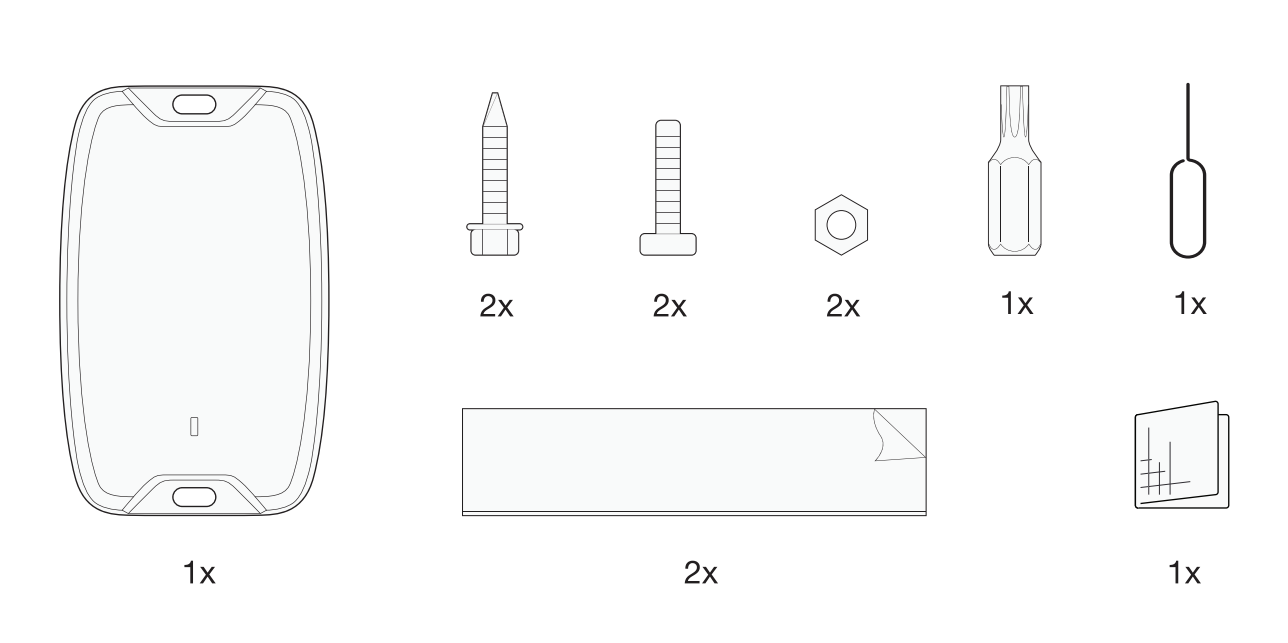

To install an AG45 or AG46 Unpowered AG you will need:
-
Activate the device in the Samsara dashboard if you have not already done so.
-
Remove the protective sticker from the side of the AG.
-

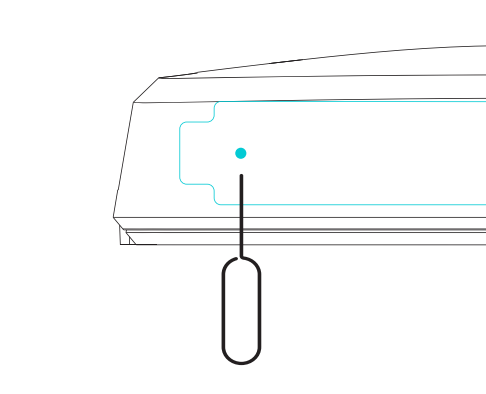

Use the provided pin to press and hold the button until the light turns green (1-5 seconds) and then release the pin.
The LED stays green for 5 seconds to indicate the device is active.
-
Confirm the device is active in the Samsara dashboard (Overview > Assets > Unpowered).
Device registration can take up to 30 minutes to complete.
-
Use the provided alcohol wipe to clean the install surface.
-
Mount the AG on the asset using one of the following methods:
With screws:
-
Position the AG on the mounting location.
-
Mark the location for the screws.
-
Remove the AG and drill small pilot holes in the screw locations.
-
Attach the gateway to the asset using the provided screws and tighten screws with the anti-theft bit key.
Without screws:
-
Place the provided VHB adhesive tape on the back of the AG.
-
Press the AG firmly into place.
-
-
(Optional) Camouflage the AG, as needed.
If you use spray paint, choose a non-metallic paint that will not interfere with antenna performance.
-
(Optional) Configure the check-in schedule for the AG.
By default, the AG check-in frequency is every 12 hours.
Using the default check-in settings and assuming normal cellular connectivity and normal environmental conditions, the batteries will operate for 1-3 years (AG46) or up to 5 years (AG45).
To install an AG51 Unpowered AG, perform the following workflow:
-
Activate the device in the Samsara dashboard if you have not already done so.
-
To initiate a test ping, press and hold the button on the AG faceplate until the LED illuminates green, for no more than 2-3 seconds.
The LED flashes green every 3 seconds for up to 5 minutes while the device attempts to check in with the Samsara dashboard. After the device determines status, the LED displays a color LED for 5 seconds to indicate the connection status. To surface the most recent check-in information to the Samsara dashboard, double-press the setup button.
-
Perform the action that corresponds to the observed solid LED behavior:
Status: Unsuccessful connection: Cellular connection fail, GPS fail
-
Ensure that the device is outside and avoid obstructions such as underground structures, heavily insulated buildings, bridges, and trees.
-
Ensure that the device has a clear view of the sky and is within cellular range.
-
Press and hold the button for 1-2 seconds and perform the action that corresponds to the observed LED behavior.
Status: Partial connection: Cellular connection OK, GPS fail
-
-
Use the provided alcohol wipe to clean the install surface.
-
Attach the mounting bracket to the mounting surface using one of the following methods:
Caution

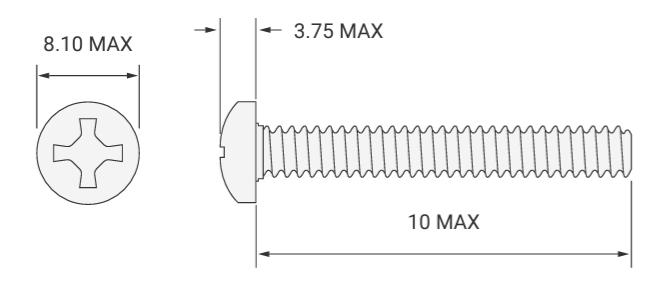

To prevent damage to the mounting tabs, tighten screws to a maximum torque of 1.4 Nm (12.4 lbf-in). If using your own screws, ensure they are not larger than the size specified below.
-

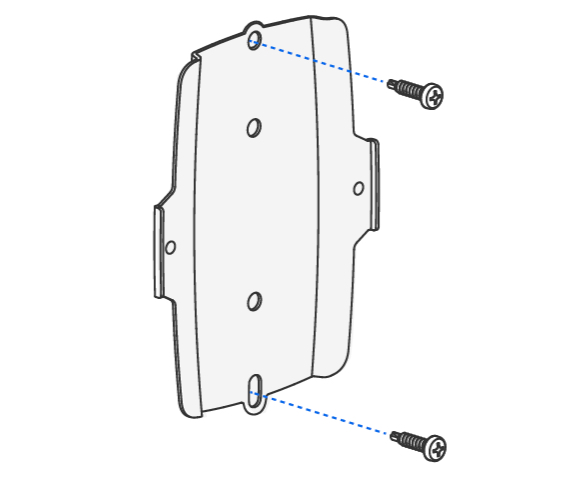

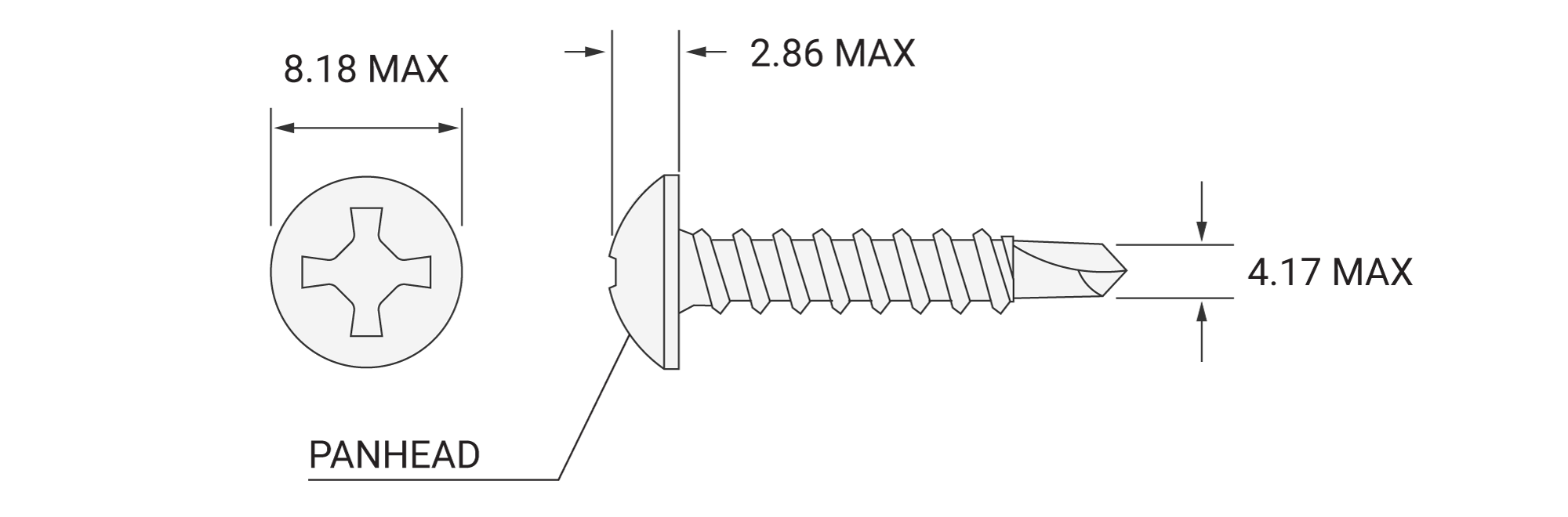

Self-drilling screws: Use the provided #6 self-drilling screws.
-

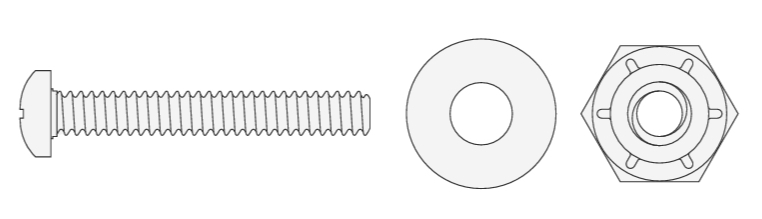

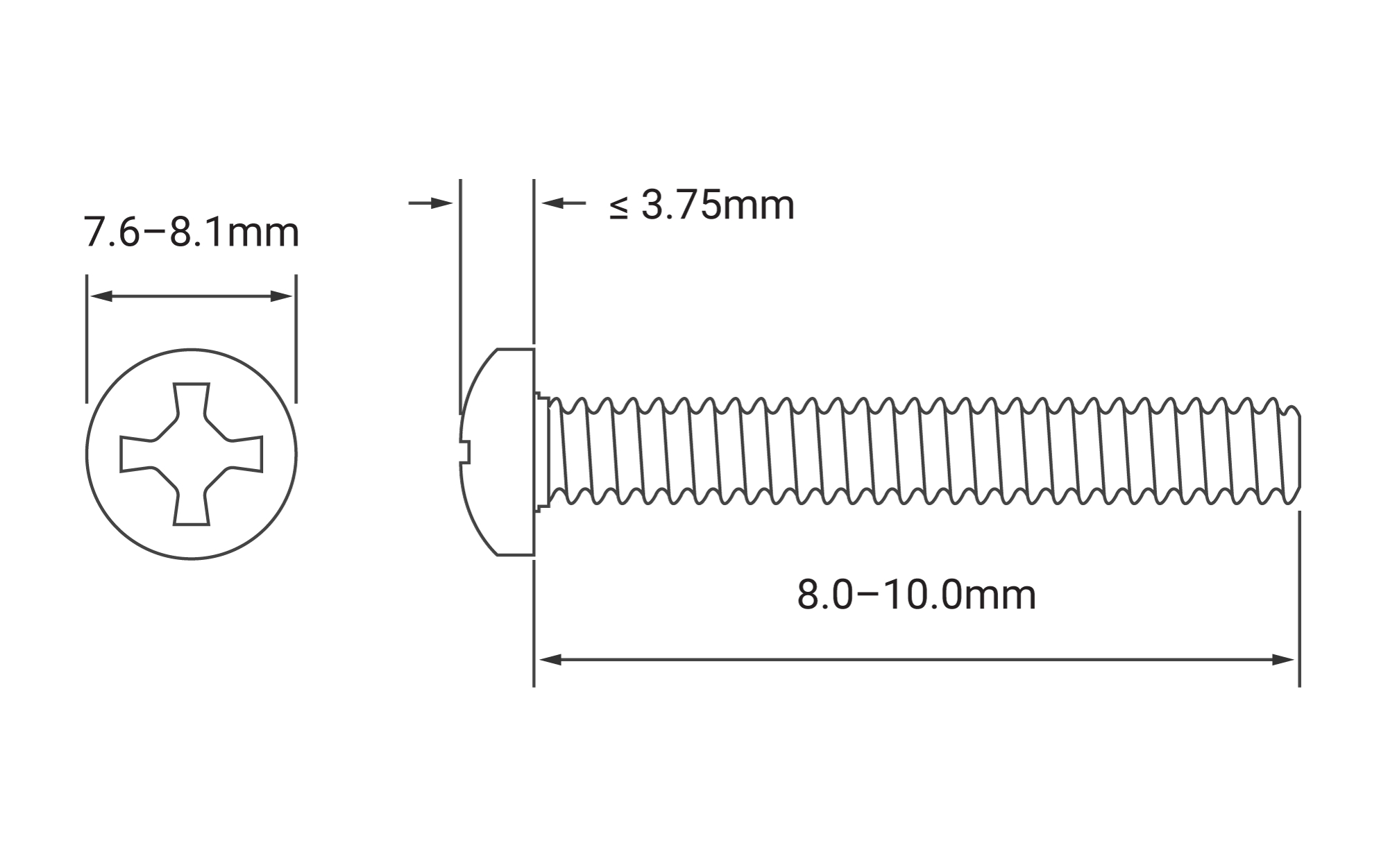

Machine screws: Drill through-holes for the mounting bracket and secure it using the provided 6-32 machine screws, washers, and lock nuts.
-
-

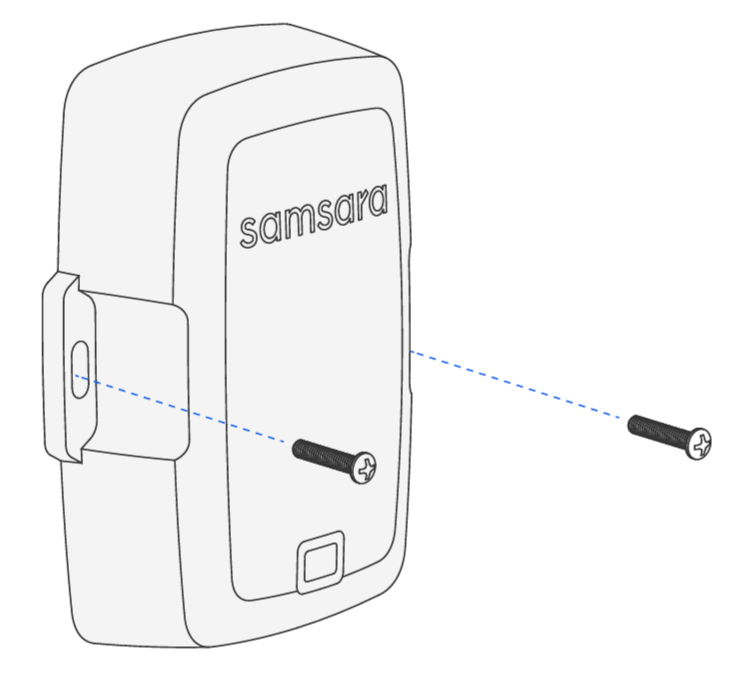

Securely mount the AG to the bracket using the two provided machine screws.
Caution
To prevent damage to the mounting tabs, tighten screws to a maximum torque of 1.4 Nm (12.4 lbf-in). If using your own screws, ensure they are not larger than the size specified below.
-
(Optional) Camouflage the AG, as needed.
If you use spray paint, choose a non-metallic paint that will not interfere with antenna performance.
-
(Optional) Configure the check-in schedule for the AG.
By default, the AG check-in frequency is every 12 hours.
Using the default check-in settings and assuming normal cellular connectivity and normal environmental conditions, the batteries will operate for 3-5 years.
