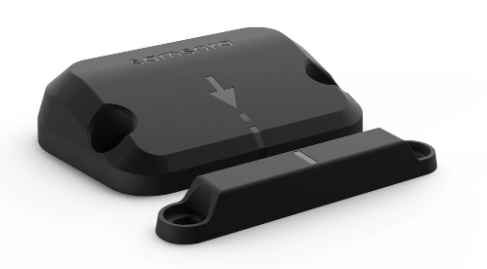

[en] The Samsara Door Monitor (DM) is a wireless sensor that provides real-time visibility and security by detecting when doors open and close. Door Monitor sensors are easy to install on both swing (hinged) and roll-up doors without any complicated wiring or cables.
[en] Samsara DMs are designed for harsh operating environments. Each IP67-rated weatherproof sensor is functional between -40°F to 140°F and protects against splashes, spray, dust, and other environmental wear and tear. Each sensor runs for 5+ years using a single AA battery.

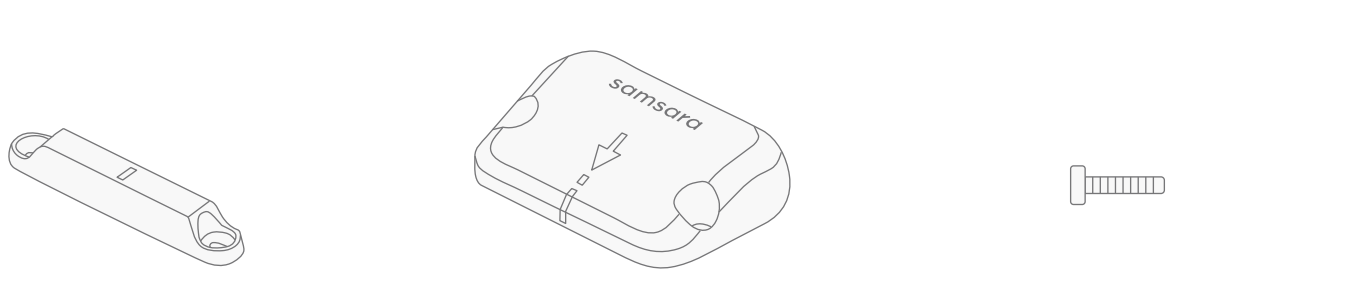

[en] The Door Monitor Sensor package includes:
|
[en] 1x Magnet |
[en] 1x Sensor |
[en] 4x Phillips rounded head metal drilling screws, 410 stainless steel, #8-18 thread size, 1/2" long (provided) |
[en] To install a Door Monitor sensor on a roll-up door:
-
[en] Discard the magnet (or save for a non-sensor installation purpose).
[en] The magnet is used for swing door installation only, and is not needed for a roll-up door.
-

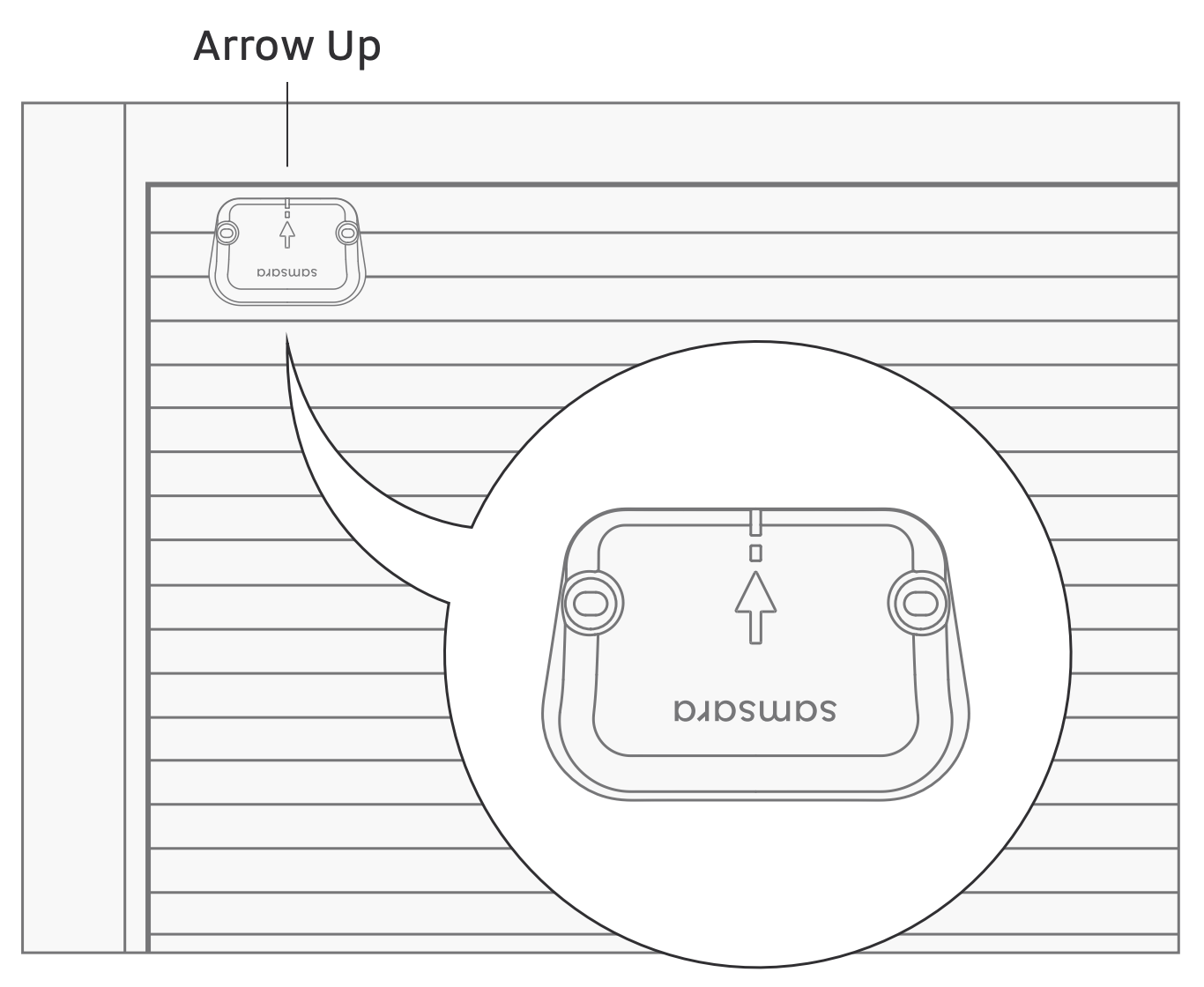

[en] Place the sensor on the inside of the door, as high as possible.
[en] Ensure that the arrow is facing upwards for the sensor to work properly.
-
[en] Secure with the included adhesive.
-
[en] (Optional) For increased stability, secure with the provided screws.
-
Pour associer le capteur à un AG, voir Associer un capteur Samsara à un boîtier télématique d'actifs.
-
Pour vérifier que le capteur transmet des rapports, connectez-vous au tableau de bord Samsara et sélectionnez Paramètres (
) > Appareils > Appareils > Capteurs pour voir les capteurs et le statut du signal.
[en] To install a Door Monitors sensor on a swing door, you will need:
|
[en] 1x Magnet |
[en] 1x Sensor |
[en] 4x Phillips rounded head metal drilling screws, 410 stainless steel, #8-18 thread size, 1/2" long (provided) |
-
[en] Place the provided magnet on the edge of the door.
-
[en] Place the sensor on the inside of the door, as high as possible.
-
[en] Place the sensor on the wall, orienting the arrow on the sensor down toward the door.
Note
[en] The distance between the sensor and magnet must not exceed ½ inch.
-
[en] Observe the light on the sensor. When aligned, the light on the sensor blinks.
-
[en] Secure both the magnet and the sensor with the included adhesive.
-
[en] (Optional) For increased stability, secure both with the provided screws.
-
Pour associer le capteur à un AG, voir Associer un capteur Samsara à un boîtier télématique d'actifs.
-
Pour vérifier que le capteur transmet des rapports, connectez-vous au tableau de bord Samsara et sélectionnez Paramètres (
[en] For printable installation instructions, see the Door Monitor Install Guide (PDF).
