The Samsara Camera Connector is only available in the UK, US, and Canada.
The standard Samsara Camera Connector enables you to expand your current Samsara Dash Cam configuration to connect up to four compatible third-party cameras per vehicle to your Samsara dashboard.
For a comparison of Samsara Camera Connector features and to view the features available using the connector, see Samsara Camera Connector Feature Support by Dash Cam Model. Using the Samsara Dash Cam and Camera Connector configuration, the following detection types will include footage from third-party cameras:
-
VG detected harsh events (such as harsh brake and crash)
Note
Policy Violation detection does not include footage from third-party cameras.
Compatible third-party cameras must have:
|
Compatible Feature Type |
Required Third-Party Feature |
|---|---|
|
Connection Type |
|
|
Video Signal |
CVBS (NSTC or PAL) |
The following table defines standard Samsara Camera Connector compatible equipment:
|
Category |
Manufacturer |
Part No. |
Description |
|---|---|---|---|
|
Backup Cameras |
Brigade |
N/A |
DVS |
|
Camecho |
CM00-K008396 |
Camecho Display |
|
|
Camecho |
CM00-R0030A1 |
Camecho Camera |
|
|
Pro-Vision |
CAM-313C-1 |
PV Backup Camera |
|
|
ZD.323.1.4 |
PV Cameras and Monitor |
||
|
Pro-Vision |
DVR-910 |
HD Clearance Light 2"/2.5" camera |
|
|
Pro-Vision |
DVR-912 |
HD Low-Profile camera |
|
|
Pro-Vision |
DVR-916 |
HD Standard camera |
|
|
Pro-Vision |
DVR-918 |
HD Flush Mount camera |
|
|
Pro-Vision |
ZD.323.1.4 |
PV Cameras and Monitor |
|
|
Monitors |
ECCO |
EC7003-K |
ECCO Monitor |
|
Pro-Vision |
PM-1970s |
7" Standard Monitor |
|
|
Pro-Vision |
PM-1980s |
7" Touchscreen Quad |
|
|
Pro-Vision |
PM-1990s |
10.1" Touchscreen Quad |
|
|
Pro-Vision |
ZD-M-302 |
PV Monitor |
|
|
Multiplexer |
MUL.802 MUL.804 |
PV Multiplexer |
|
|
Side Camera |
Pro-Vision |
CAM-313MS |
PV Side camera |
|
Pro-Vision |
DVR-920 |
HD Side Camera |
|
|
DVR |
JOINLGO |
N/A |
JOINLGO Camera, display, DVR |
|
Pro-Vision |
PD-1902 |
8-Channel, 1080p Solid State DVR, can be integrated |
Tip
Use the following detailed workflow or the Install Guide (PDF).
Perform the appropriate workflow to install your standard Samsara Camera Connector. During installation, note the following mounting requirements:
-
Mount all video connections securely to vehicle.
-
Secure all video connectors using heat shrink or electrical tape.
-
Failure to secure connectors may cause poor video quality.
|
|
|
|
|
|
|
|
To connect a third-party camera using the standard Samsara Camera Connector, you will need the following materials:
Before you begin installation of the standard Samsara Camera Connector, complete the following tasks:
-
Verify that your third-party camera equipment is compatible with the standard Samsara Camera Connector. For compatible requirements, see Third-Party Camera Requirements.
-

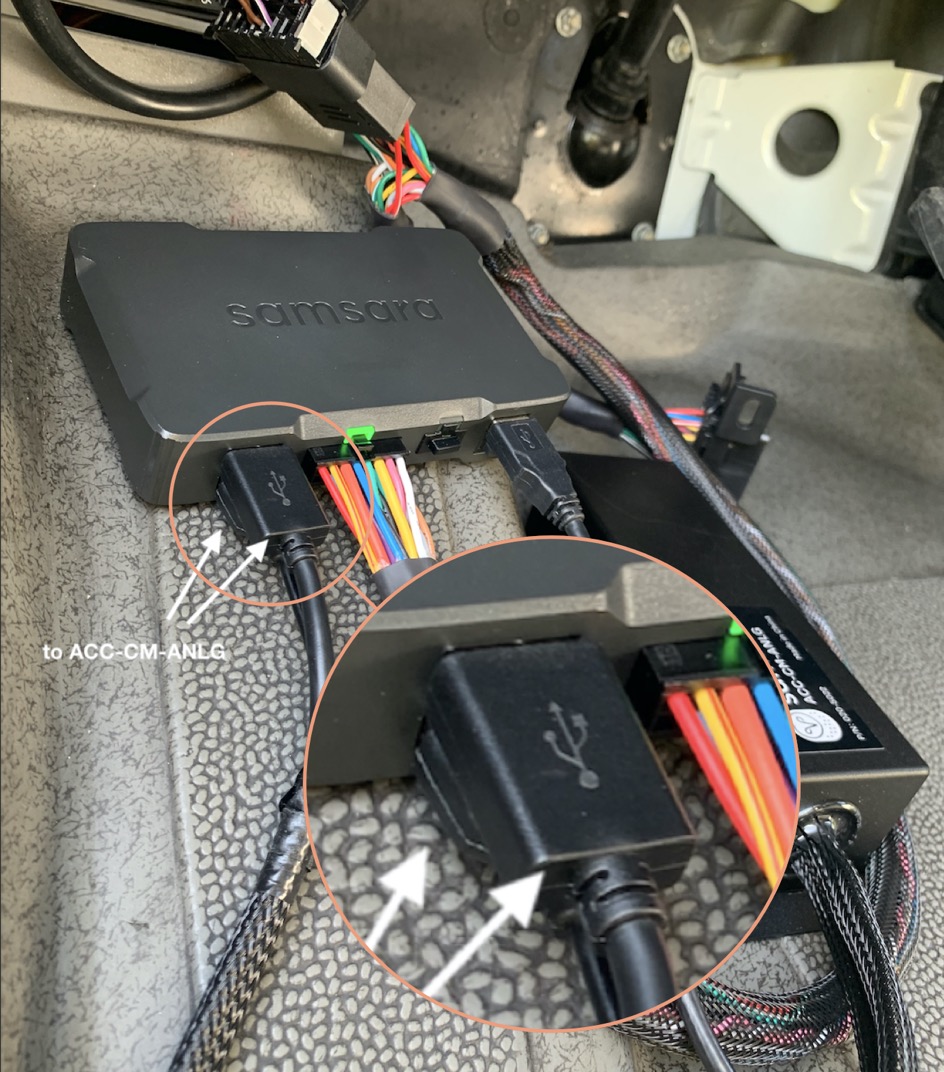

Connect both USB plugs from the ACC-CM-ANLG to two additional USB ports on the VG54-NA.
-
Connect the included isolator to the yellow RCA pin coming from ACC-CM-ANLG.
-
Securely mount VG54-NA and ACC-CM-ANLG using provided fasteners, zip ties, and adhesive. Installation location and style will vary by vehicle depending on available space.
Note
Secure mounting of the VG is required for accelerometer based harsh event detection to function.
-
If the installation uses an RCA connection, connect isolator directly to third-party camera cable.
-
If the installation uses a GX12 connection or has an in-cab monitor, connect the isolator to the included Y-cable, GX12 connections as pictured below.
-
If installation includes multiple cameras and a multiplexer, connect all cameras to the multiplexer, then connect the isolator to
video outon the multiplexer. -
Verify connectivity between the components and that the Samsara dashboard recognizes the camera.
If after verifying the connections, if the camera reports No Signal, this can indicate an issue with the third-party camera.
-
To complete the Camera Connector Setup, proceed to Enable Standard Camera Connector Functionality.
