After you install the AG26 for a Reefer Integration, you can use the Reefer Report to monitor the reefer average, real-time, and historical temperature data, such as discharge air, ambient air, and reefer mode.

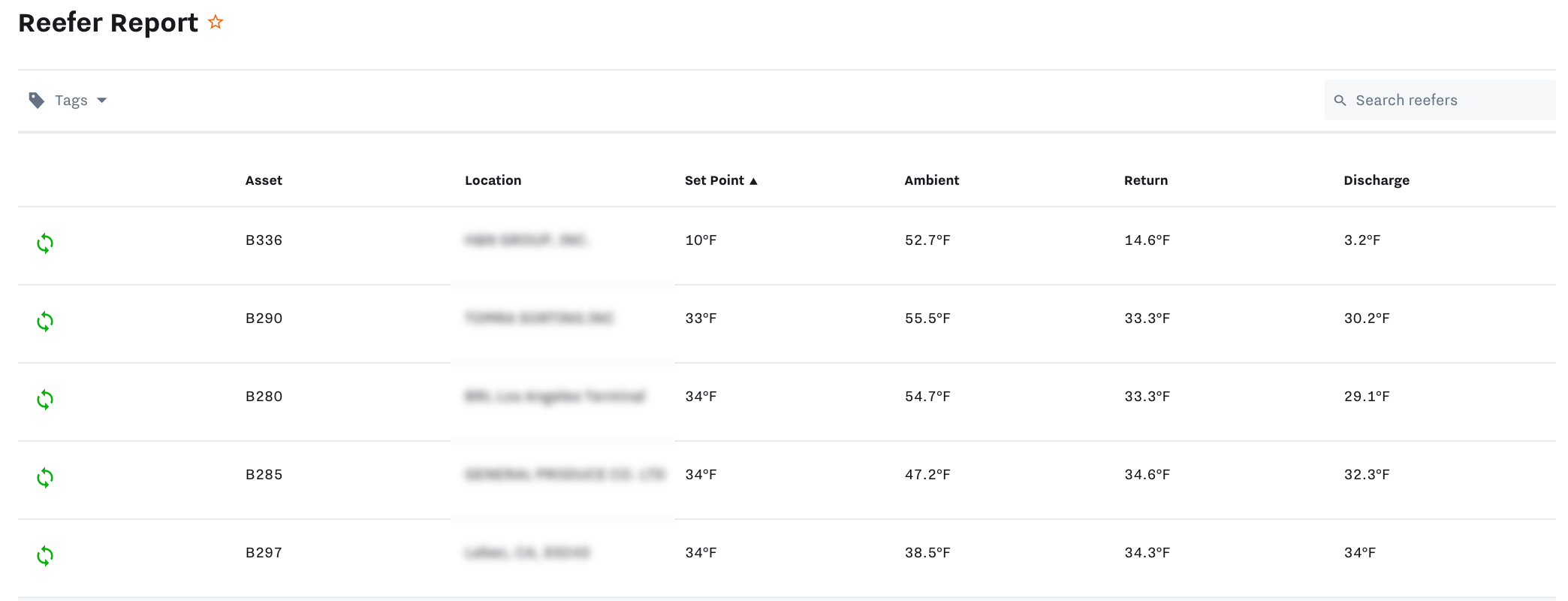

The Reefer Report provides a real-time overview of all reefers in your fleet. The report lists the following data for each asset:
|
Field |
Description |
|---|---|
|
Mode Icon |
Normal operation displays green. Reefers with alarms display red. |
|
Asset |
Asset name |
|
Location |
Last asset check-in location |
|
Set Point |
Reefer target temperature setting |
|
Ambient |
External environment temperature |
|
Return |
Return air temperature |
|
Discharge |
Supply air temperature |
To view the Reefer Report for your fleet, perform the following workflow:
-
From the Samsara dashboard, select Reports (
) > Assets > Reefer Temperatures.
-
Select an asset to view the Reefer Report for the asset.

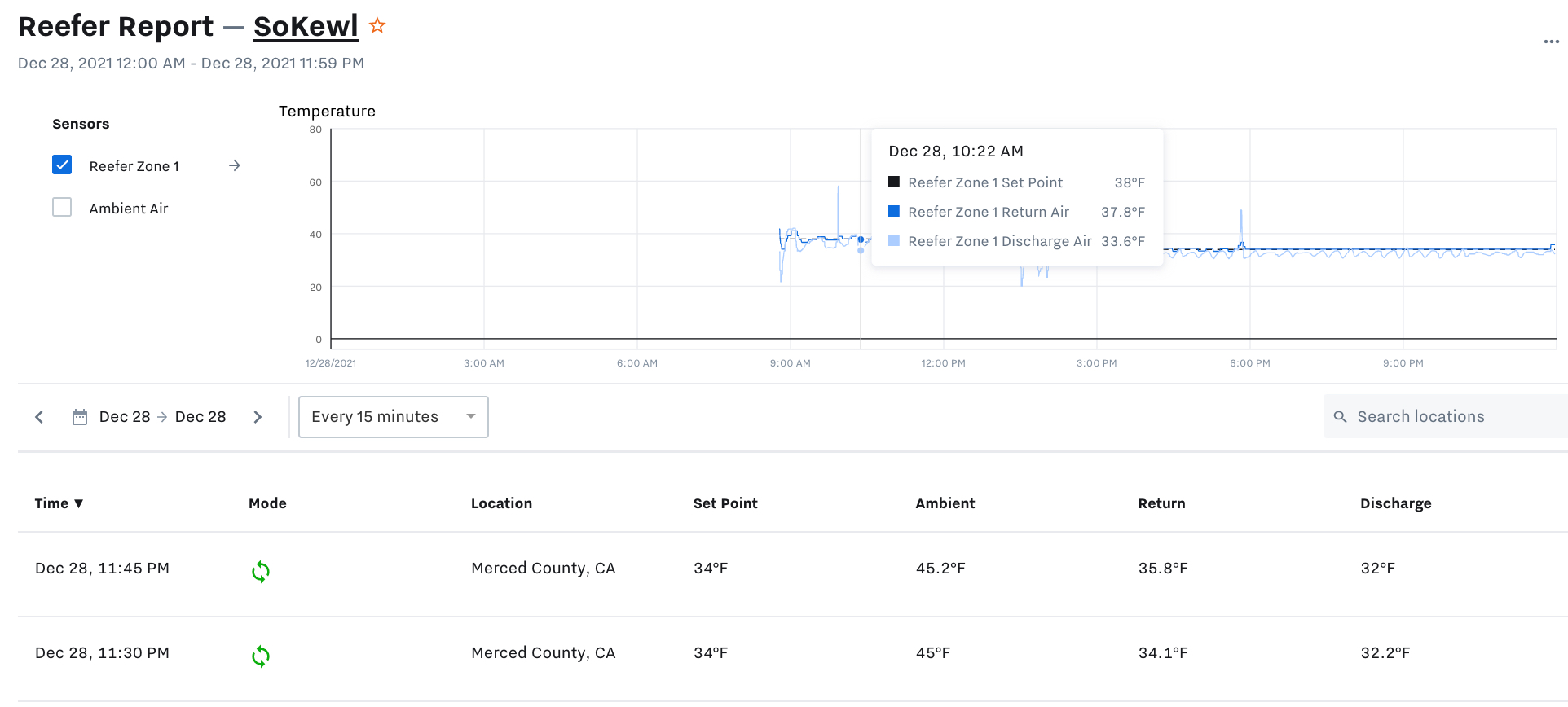

The asset Reefer Report graphs all sensor and temperature data for the reefer during the selected time period. By default, the report displays reading data at 15 minute intervals. To view more detailed data, select an alternate data interval (Every minute, Every 5 minutes, Every 10 minutes).
In addition to the data fields from the Reefer Report overview, the asset detail also provides the following fields:
Field
Description
Time
The date and time of the reading
EM data
(Sensor required) Temperature from Environmental Monitoring (EM) sensor.
Cargo
(Sensor required) Cargo status. Report displays Full or Empty
