HW-SP11
This installation guide contains typical information specific to products manufactured at the time of its publication. The contents of this guide do not constitute a warranty and are for reference only. Consult applicable local laws and ordinances to determine any installation restrictions. It is the installer’s responsibility to comply with all applicable laws and ordinances when installing this hardware.
|
Item |
Quantity |
Description |
|---|---|---|
|
|
1 |
Vehicle Gateway (VG) (sold separately) |
|
|
1 |
In-cab speaker |
|
|
1 |
Diagnostic cable (sold separately, may vary by vehicle type) |
|
|
1 |
70% Alcohol wipe |
|
|
4 |
Cable clips |
|
|
2 |
Cable ties |
Follow these steps to install the in-cab speaker in your vehicle.
-

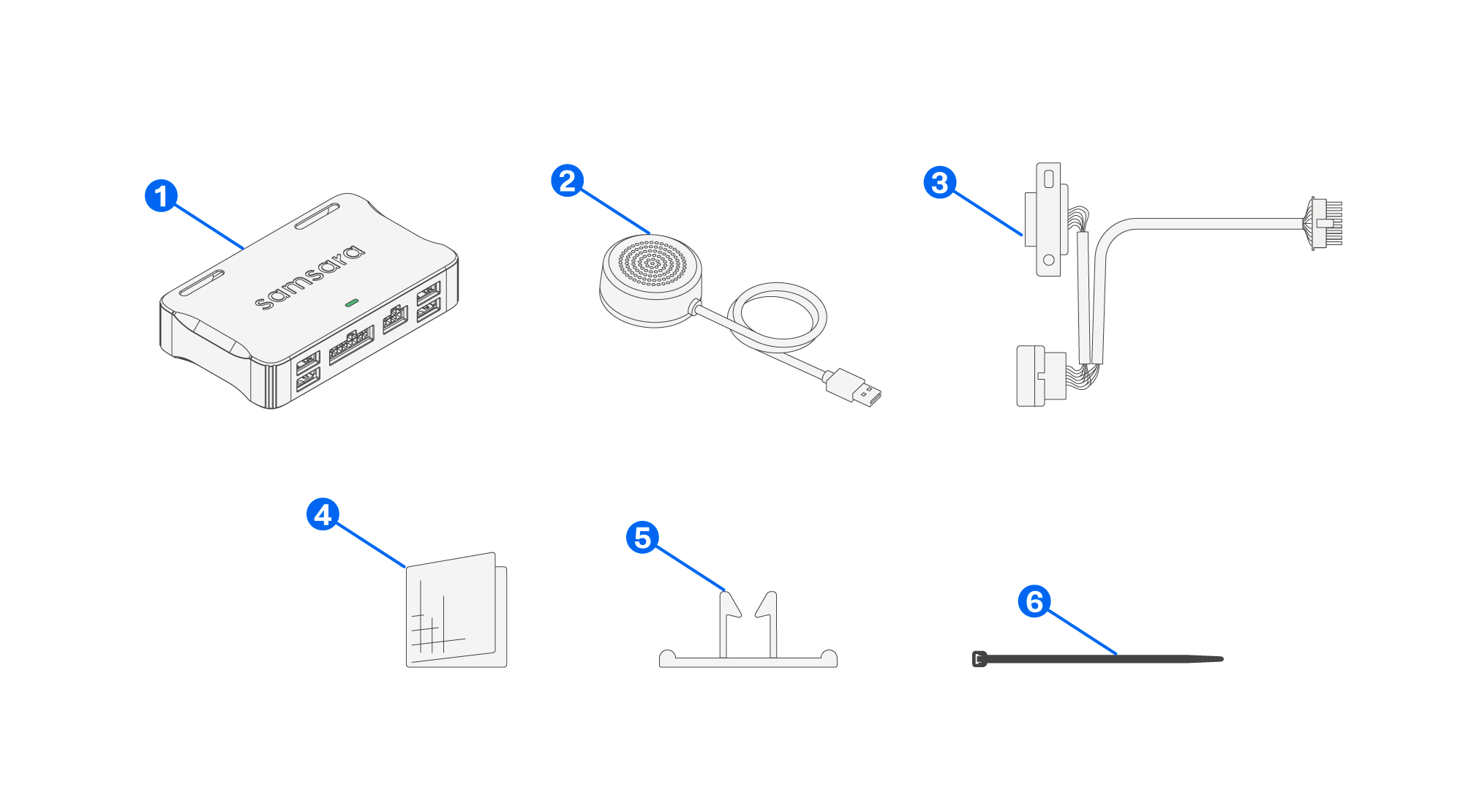

Gather your equipment and components:
Collect all necessary items shown in the reference graphic, along with any required tools.
-
Install VG:
-
If a VG is already installed, proceed to the next step.
-
If a VG is not yet installed, install it using the appropriate installation guide for your vehicle’s VG diagnostics cable: Vehicle Gateway (VG) Installation Guides by Cable
Pause the installation when reaching the step related to connecting accessory devices, and continue with the instructions below.
-
-

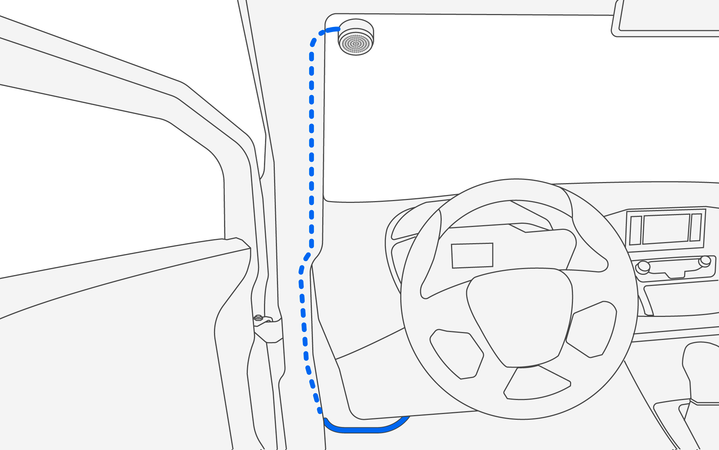

Identify an install location for the speaker:
-
Choose a flat, non-porous surface such as rigid plastic, glass, or metal. Avoid fabric surfaces.
-
Do not install the speaker over airbags or other safety features.
-
The recommended location is on the top corner of the windshield near the A-pillar on the driver’s side.
-
Ensure the speaker is not muffled and does not interfere with driver movement.
-
Ensure the installation location allows for clean cable routing to the VG, considering the ~10ft (3-meter) cable length.
-
-
Clean the mounting surface:
-
If mounting on glass or metal: Use a 70% alcohol wipe to clean the surface, remove dust and contaminants, and let it dry completely.
-
If mounting on plastic: Use a dry, lint-free cloth to remove dust and contaminants.
-
-
Mount the device:
-
Remove the red liner from the VHB adhesive using the pull tab.
-
Firmly press the speaker into the installation location for at least 30 seconds, ensuring even compression.
-
-
Route the in-cab speaker USB cable to the VG:
-
Secure the cable using the provided cable clips and zip ties.
-
Tuck the cable under the windshield glass seal or along the A-pillar seal, avoiding interference with safety systems such as airbags.
-
-

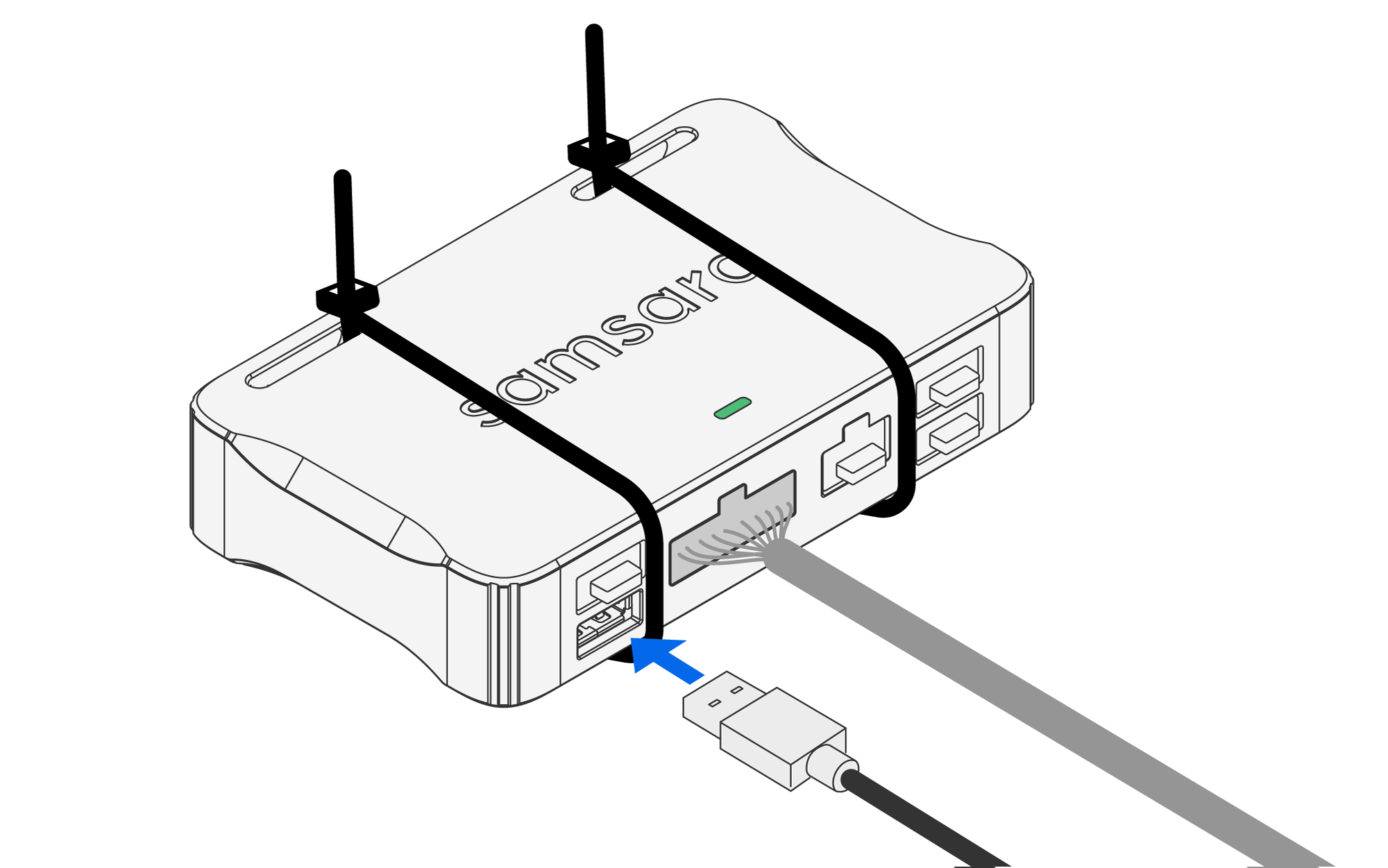

Plug the in-cab speaker into the VG:
-
Insert the USB cable into any available USB port on the VG.
-
Avoid wrapping the cable around the VG or crossing the diagnostics cable.
-
-
Review and configure in-cab alerts for voice coaching.
This installation guide contains typical information specific to products manufactured at the time of its publication. The contents of this guide do not constitute a warranty and are for reference only. Consult applicable local laws and ordinances to determine any installation restrictions. It is the installer’s responsibility to comply with all applicable laws, and ordinances and rights to privacy in your jurisdiction when installing this hardware.
Do not attempt to repair this product, use any third party replacement parts with this product, or open or otherwise modify this product, except in accordance with product manuals or as otherwise instructed by Samsara. Failure to do so may cause property damage, lead to physical injury, or void your product warranty.
Any installation not in accordance with the instructions in the installation guide or otherwise in the Documentation or use of this product other than as described by the relevant IP rating or recommended operating conditions may result in unexpected downtime, system failure, physical injury or property damage, including water damage. Failure to follow these directions could result in serious injury or death.
This hardware and any associated software may not be compatible with third party products and/or services and may interfere with the operations of or void warranties for such third party products and/or services.
Do not install or adjust hardware while driving or operating the vehicle. Do not install this hardware in a location that could interfere with the driver’s visibility, operation of vehicle controls, or on or near airbag panels or within the working range of an airbag.
Do not install this hardware on or near flammable or otherwise hazardous materials. This hardware may burst if placed near flammable or other hazardous materials, creating a risk of fire, burn, shock, or other serious injury. This product includes capacitors, which may present a potential fire, explosion, electric shock, or burn hazard. Do not touch any capacitors within this hardware.
Please always pay attention to your surroundings and drive safely, comply with all traffic laws, and observe the road and driving conditions at all times. Do not rely on the product to alert the driver of safety hazards or to prevent collisions. The hardware and associated software may not work as intended depending on road conditions, other vehicles, weather, and other factors.
|
|
This symbol on the product(s) and / or accompanying documents means that used electrical and electronic products should not be mixed with general household waste. For proper treatment, recovery, and recycling, please take this product(s) to designated collection points where it will be accepted free of charge. |
