[en] Private hire vehicles operating in London are subject to Transport for London (TfL) requirements for installation and mounting of the Vehicle Gateway (VG) and Samsara Camera (CM). Use this workflow when installing a Vehicle Gateway (VG) and mounting a Samsara Camera (CM) in a vehicle operated by a private hire company in London.

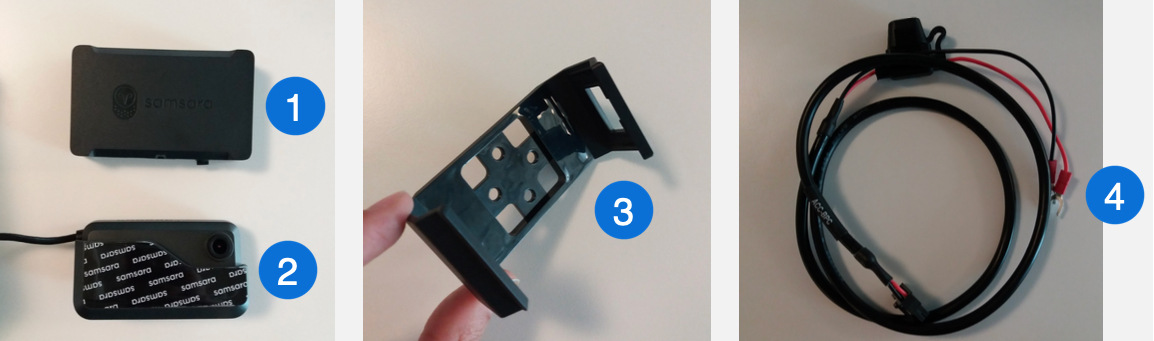

Was Sie benötigen
|
Menge |
Beschreibung |
||||||||||||||||||||||||||||||||||||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
|
|
1 |
[en] Vehicle Gateway: VG55-EU, VG54-EU, or VG34 |
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
1 |
[en] Samsara Dash Cam: CM32 or CM31 |
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
1 |
[en] Vehicle Gateway mounting bracket:
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
1 |
[en] Non-diagnostic power cable:[a][a]
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
[a] Cable compatibility is determined by VG model. |
|||||||||||||||||||||||||||||||||||||||||||||||||
[en] Use the following workflow to install the VG and mount the CM to meet TfL requirements.
-
[en] Locate a passenger-side mounting location suitable for securing the mounting bracket and completing a hardwired installation.
Tipp
[en] When choosing a location, do not obstruct access to the fuse box or interfere with airbag components.
-

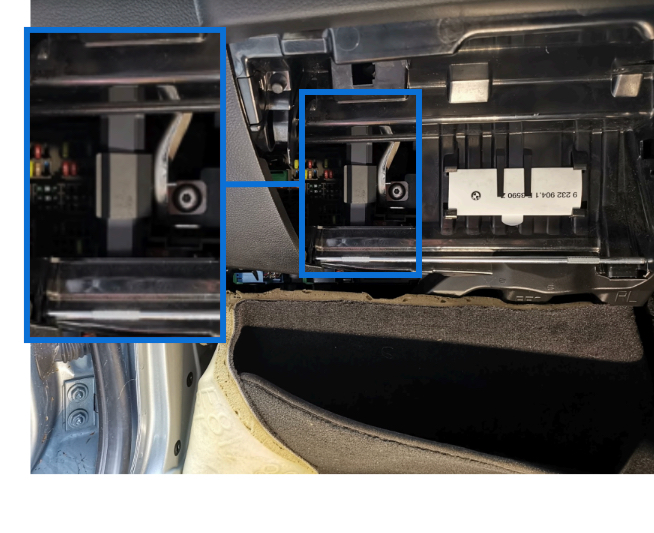

[en] Secure the VG mounting bracket using at least two screws on a non-structural metal surface, such as behind the glove box area.
-
[en] Hardwire the Samsara non-diagnostic power cable using a piggyback fuse tap:
-
[en] Connect the red wire (positive) to permanent power using a piggyback fuse tap in an empty fuse slot.
-
[en] Connect the black wire (negative) to the body of the vehicle as the ground.
-
-
[en] Snap the VG into the mounting bracket. Confirm the VG is mounted upright, with the logo facing up.
-
[en] Connect the non-diagnostic power cable to the VG. Allow several minutes for initialization until the indicator light turns green.
-
[en] Install the camera, then position it according to the UK mounting recommendations.
[en] After installation, complete the following required configuration steps in the Samsara-DashboardSamsara dashboard:
-
[en] Confirm dashboard region (EU)
[en] Verify that your organization’s Samsara-DashboardSamsara dashboard is using the EU cloud. The dashboard URL should begin with cloud.eu.samsara.com.
-
[en] Configure camera data retention
[en] Set dash cam image and video retention to Keep dash cam image and video data for 28 days. Contact Samsara Support to enable or modify this setting.
-
[en] Disable audio recording (CM32 only)
[en] Audio recording must be turned off for CM32 dash cams.
Anmerkung
[en] For assistance with any of these configuration steps, contact Samsara Support.
