If you observe a discrepancy with the auto-detected speed limit in the Samsara dashboard , you can override the speed limits that Samsara automatically sets for your drivers. You can edit the speed limit from the speed graph in the asset trip history or edit directly from the Map Editor. Speed limit overrides take effect immediately and apply only to future trips. Overrides are not retroactive and do not affect speed graphs nor speeding reports for completed trips.
To override speed limits, you must have a standard admin role or a custom role with Map Editor permissions with access to the entire organization.
Administrators with tag-based access cannot apply speed overrides, as these changes affect the entire organization. If an administrator with tag-based access requires map editor permissions, you can create and assign a custom role to the administrator that enables only these permissions for the entire organization.
To edit speed limits using the route from the asset's trip history, you can select segments to edit the speed limits in the Map Editor.
-
From the Samsara dashboard, navigate to your fleet Overview (
).
-
Click the asset name from the Vehicles list.
-

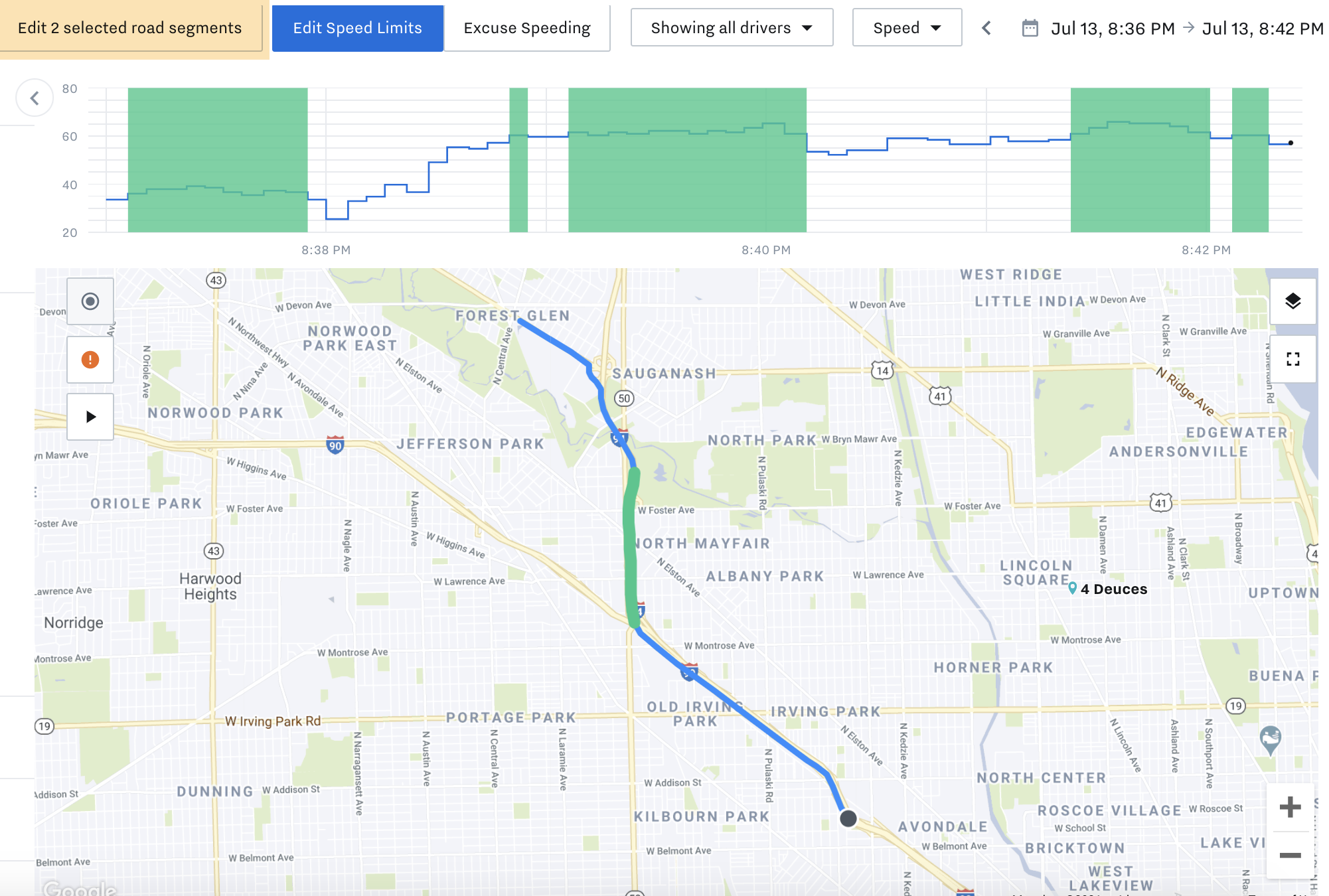

From the Graph Data menu on the graph, select Speed to view the speed graph.
-
Click and drag the cursor over the speed graph to highlight and inspect the speed graph segment of the trip.
-
Click Edit Speed Limits and click and drag to select one or more trip segments.
-
Select Edit (X) selected road segments to edit the speed limits for the segments using the Map Editor.

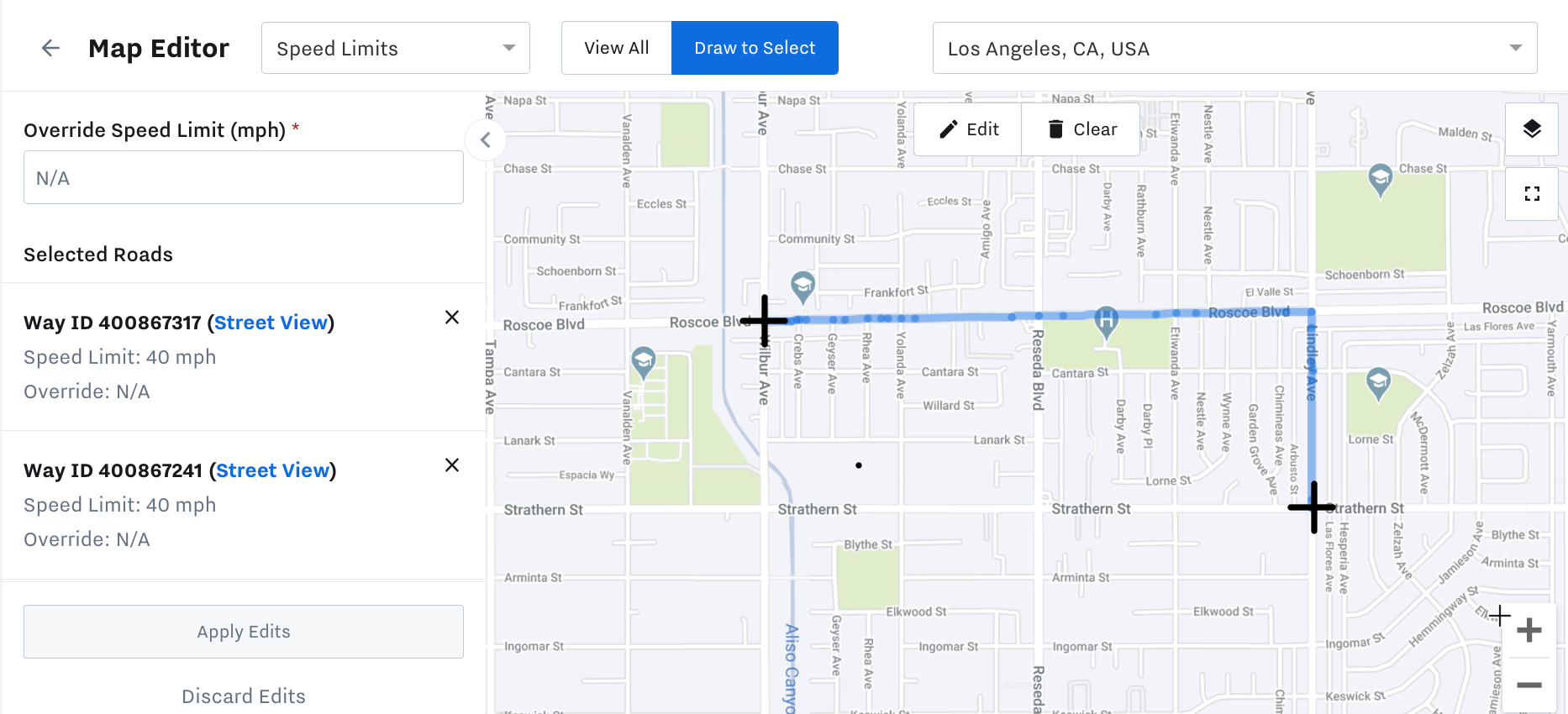

The Map Editor enables you to view and edit speed limits within the context of a map using the WayID, which is a unique identifier of a road segment. You can select any road segment that has an overlay to apply a speed limit override and view the WayID, the speed limit, and any pre-existing speed limit overrides.
-
From the Samsara dashboard, navigate to your fleet Overview (
-
Right-click on the map and select Open Map Editor.

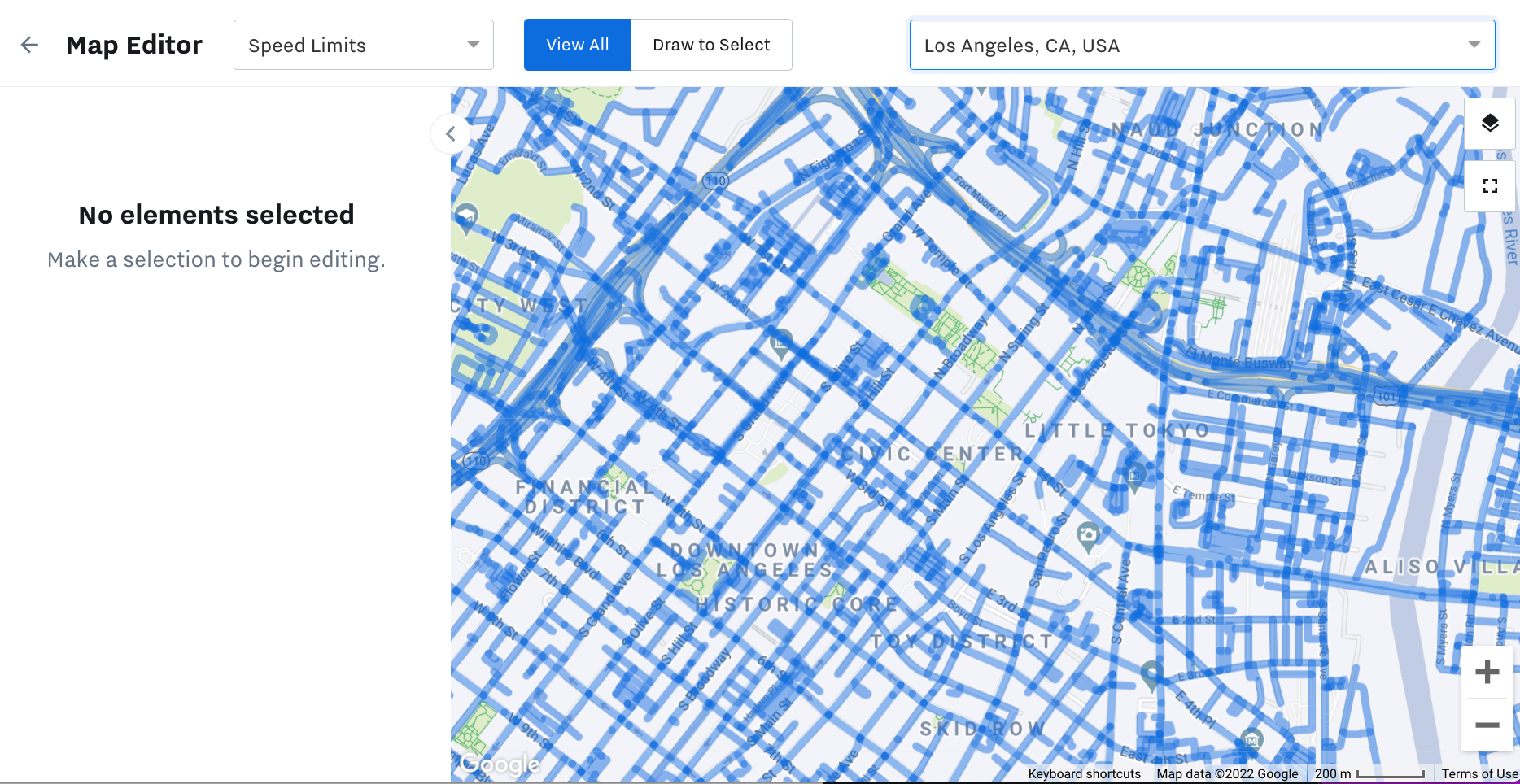

The map displays clickable road overlays that are color-coded:
-
Blue: Road segment data available
-
Yellow: Road with speed limits that have been previously overridden
-
-
If the street overlay can not be edited or is not visible, click Zoom in to edit data.
-
To search for a specific address, use the search bar or drag the map around to view neighboring areas.
-

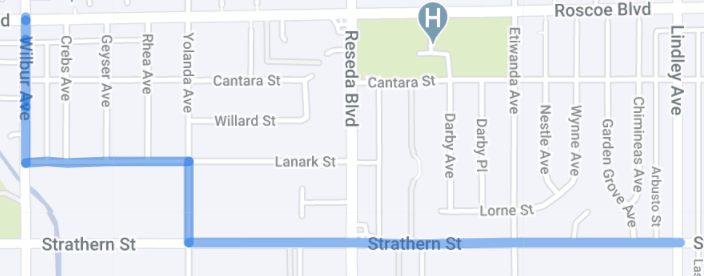

Select one or more road segments to edit. To select multiple road segments, you can manually click on each road segment or draw the route to automatically select the roads. To draw a route to edit multiple segments:
-
Click Draw to Select on the map.
-
Click on the route starting point location to
Add Start Pointfor the route. -
Click on the route endpoint location to Add End Point for the route.
Samsara automatically chooses the quickest path between the start and end point locations and displays each segment detail.
-

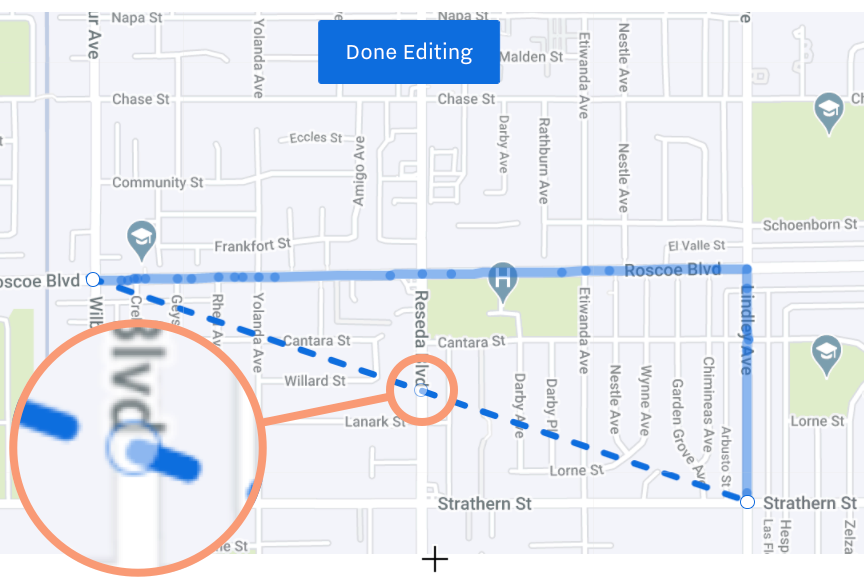

To modify the route, click Edit on the map.
The map displays an edit marker between the start point and end point.
-

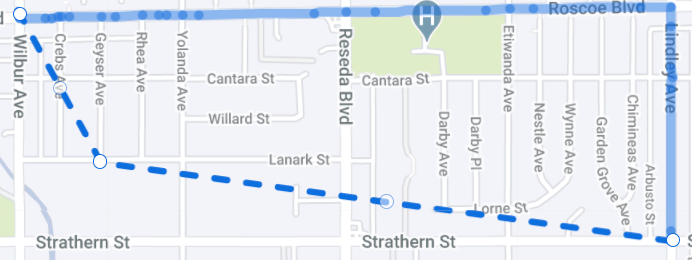

Adjust the edit marker to include the location. You can add one or more locations to the route by dragging the edit marker to the location.
-
Click Done Editing when done.
Samsara calculates the quickest path between all edit markers.
-
-
To clear road segments, either select the road segment or locate the speed limit edits selection and click remove ( X ) on the road segment details.
-
To apply an Override Speed Limit, enter the speed limit of the selection.
-
Apply Edits to save the speed limit overrides.
