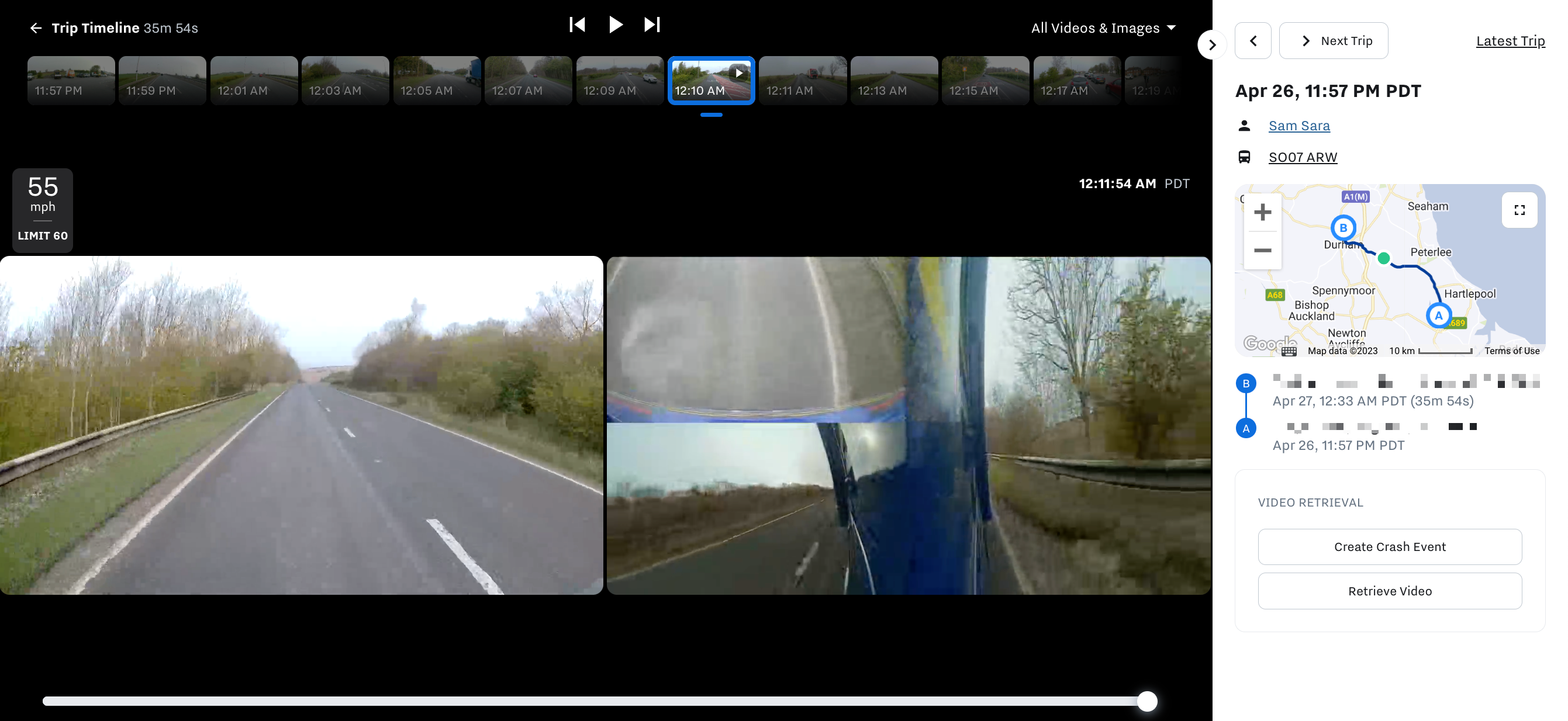

The HD Samsara Camera Connector enables you to expand your current Samsara Dash Cam configuration to connect up to four compatible third-party cameras to your Samsara dashboard.
For a comparison of Samsara Camera Connector features and to view the features available using the connector, see Feature Support by Dash Cam Model. Using the Samsara Dash Cam and Camera Connector configuration, the following detection types will include footage from third-party cameras:
Note
Policy Violation detection is not supported with the Camera Connector.
The following table lists the features supported by each dash cam model. A green checkmark ( ) indicates a supported feature; a red x (
) indicates the feature is not supported.
Note
For legal and privacy reasons, audio recording for a third-party system is not available using the Samsara Camera Connector.
|
Feature |
Samsara CM3X-Series Dash Cam |
Standard Samsara Camera Connector |
HD Samsara Camera Connector |
||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
Hyperlapse retrieval |
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Blurring support |
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
Secondary extended video |
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Resolution |
HD |
Up to SD[a] |
Up to HD[a] |
||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||||
|
On-device storage |
|
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
Mirror and flip the camera stream |
N/A |
|
|
||||||||||||||||||||||||||||||||||||||||||||||
|
Disconnected alerts |
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
|
|
|
|
|||||||||||||||||||||||||||||||||||||||||||||||
|
Installation flow for mobile devices |
|
|
|
||||||||||||||||||||||||||||||||||||||||||||||
|
[a] Availability is dependent on third-party camera options [b] AHD1 will support high res storage (equivalent to CM 60/80/100 hrs) |
|||||||||||||||||||||||||||||||||||||||||||||||||
The following table summarizes the compatible third-party features. If your camera has a connection type or video signal not listed here, you will need to purchase an adapter from a supported third-party vendor.
|
Component |
Options |
|---|---|
|
Connection Type |
Video Input: Female GX12 (4-pin) Video Output: Male GX12 (4-pin) |
|
Video Signal |
|
Consult with the manufacturer for options. The following table lists compatible equipment for the Samsara Camera Connector equipment. This list is not a comprehensive list. Always verify connector and signal compatibility.
|
Category |
Manufacturer |
Model No. |
Description |
|---|---|---|---|
|
Cameras |
Brigade |
VBV-790C |
Backup Camera |
|
Brigade |
VBV-300C |
Side Camera |
|
|
Pro-Vision |
CAM-313C-1 |
PV Backup Camera |
|
|
Pro-Vision |
IA-DVR-912 |
HD Low-Profile Camera |
|
|
Pro-Vision |
IA-DVR-920 |
HD Standard Camera |
|
|
Pro-Vision |
CAM-313MS |
PV Side Camera |
|
|
Rear View Safety |
RVS-770-AHD |
Backup Camera |
|
|
Rear View Safety |
RVS-775-AHD |
||
|
Rear View Safety |
RVS-ARM |
||
|
Rosco |
STSC168 |
Front Camera |
|
|
STSC167 |
|||
|
Camera and Monitor Kit |
|||
|
SV-625B-KIT |
Camera Kit |
||
|
Zone Defense |
CAM-313C-1 |
Backup Camera |
|
|
Zone Defense |
CAM-313MS |
Side Camera |
|
|
Monitors |
Brigade |
VBV-770M |
Brigade Monitor |
|
Pro-Vision |
IA-PM-1980S |
7" Touchscreen Quad |
|
|
Rear View Safety |
RVS-3710-DVR |
Monitor / DVR |
|
|
Safety Vision |
SV-LCD-56BA |
5.6" Monitor |
|
|
Zone Defense |
IA-PM-1970s |
Monitor |
|
|
Multiplexer |
MUL.604 |
PV Multiplexer, 4 Channel |
|
|
MUL.802 |
PV Multiplexer, 2 Channel |
||
|
MUL.804 |
PV Multiplexer, 4 Channel |
||
|
STSS1000A |
Multiplexer, 4 Channel |
||
|
DVR |
Pro-Vision |
IA-DVR-906T0-128 |
10-Channel Hybrid HD DVR |
|
MDR-504GW-1-G2-CMR |
4 Channel Mobile Digital Recorder |
Tip
Use the following detailed workflow or the Install Guide (PDF).
Before you begin installation of the HD Samsara Camera Connector, complete the following tasks:
-
Verify that your third-party camera equipment is compatible with the Samsara Camera Connector. For compatible requirements, see Third-Party Compatible Camera Options.
-
Gather the following equipment:
-
VG54/H
-
VG cable
-
AHD1 with three cable connectors:
-
1m/3ft USB cable
-
15cm/0.5ft male GX12 cable (CAM)
-
15cm/0.5ft female GX12 cable (DISPLAY)
-
-
CM3x
-
1m/3ft USB cable
Depending on your configuration, you may also require a GX12 extension cable (not provided).
-
To connect a third-party camera using the HD Samsara Camera Connector:
-
Connect the USB from the HD Camera Connector to the VG54-NA.
If the distance between the AHD1 and the VG is greater than 10ft/1m, you can order a USB extension cable (CBL-CM-B3AU) from Samsara.
-
Use the provided zip ties to securely mount the HD Camera Connector with the logo facing outward.
The installation location and style vary by vehicle depending on available space.
-
Complete the mounting:
-
Without an in-cab display: Mount the HD Camera Connector near the VG, but ensure both units have adequate ventilation to dissipate heat.
Warning
Do not stack the unit on top of the VG as that will hinder the thermal dissipation and cause the unit to overheat.
If your installation includes multiple cameras and a multiplexer, connect all cameras to the multiplexer.
-
With an in-cab display:
-
Loop the USB cable through the back of the cab.
-
If possible, mount the HD Camera Connector near the in-cab monitor to ensure the GX12 cable length is adequate to connect. No extension cables should be required.
-
-
-
Connect the camera system to the HD Camera Connector male GX12 cable.
-
Connect the HD Camera Connector female GX12 cable to the in-cab monitor video input.
-
To confirm that the cameras are positioned appropriately, first verify that the VG has power, the CM3X is recording, and the third-party cameras have power. Then, proceed to Test Dash Cam Positioning.
